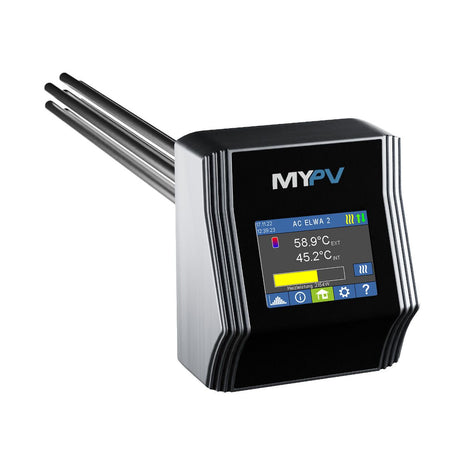

My-PV My-PV AC ELWA 2
Our AC ELWA 2 is a 0 - 3.5 kW continuously controlled water heating device for grid-connected photovoltaic systems. The AC ELWA 2 uses excess photovoltaic energy for your water heating and thus optimizes the self-consumption of the existing PV system. At the same time, self-sufficiency is increased - this protects against unforeseeable or rising operating costs. The continuously controlled PV feed-in power is regulated to zero. The AC ELWA 2 has our proven optional hot water backup: Even if the sun is not shining sufficiently, the hot water can be heated to the desired temperature using energy from the public power grid. The device can be installed in hot water and buffer tanks. Advantages of the AC ELWA 2: More power: 3.5 kW instead of 3.0 kW Easy installation: The heating element and the control unit can be installed one after the other. Easy operation thanks to display like the AC•THOR Multiple communication options: in addition to Ethernet RJ45 also WLAN, RS485, PWM-in, potential-free switching output External temperature sensor included An external 3 kW heating element can be connected Even more compact design than its predecessor Fixed wiring no cable with Schuko plug Easy conversion of AC ELWA-E to AC ELWA 2
€771,00

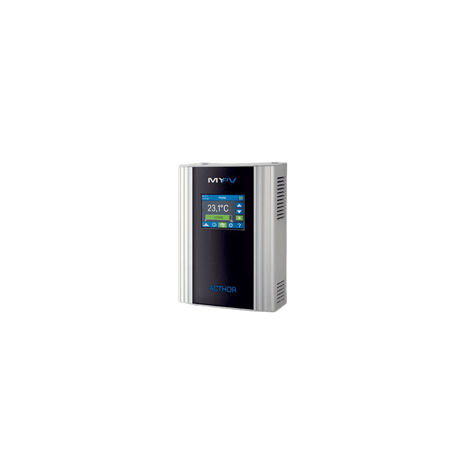

My-PV My-PV AC THOR 9s
Hot water preparation and building heating with solar power AC•THOR 9s is a 0 - 9 kW continuously controlled photovoltaic power manager for hot water, electrical heat sources and optional heating. Simple & efficient: The AC•THOR 9s controls up to 3 electrical heat sources depending on the availability of PV energy and heat requirements. This applies to both hot water and room heating. It ensures your personal living comfort fully automatically. In a residential building that has been built or renovated to today's thermal standards, the AC•THOR 9s replaces the conventional, water-based building technology. Any missing residual energy can be drawn from the public power grid. Of course, the AC•THOR 9s can also be integrated into conventional, water-based systems such as buffer tanks. Its flexibility leaves nothing to be desired. Thanks to the built-in touch display, it can be operated at any time without additional devices and is extremely easy to install. The AC•THOR 9s is particularly suitable for: Single and multi-family houses Agricultural holdings Commercial and industrial applications Hotels and tourism businesses Local and district heating networks Advantages Continuously variable up to 9 kW possible 3 adjustable outputs For 3-phase heating elements with common neutral conductor Simplest loading of three zones 3 x 3 kW Can also be combined with heat pump Two-zone room heating possible Reduction in size of the building services room System open for various inverters, battery systems and smart homes Up to 85% PV self-consumption/own use even without battery storage Plug & Play - All connections can be plugged in! No time-consuming wiring No clamping points, no PG screw connections No complicated opening of a case Technical data Mains voltage: 3 x 230 V, 50 Hz Outputs: 0-3000 W continuously adjustable, three outputs, max. 9000W Mains connection: 3-phase with neutral Consumer connections: plug contacts Display: color graphics, touch screen 2.83" Dimensions (W x H x D): 135 x 195 x 65 mm
€907,00
My-PV My-PV AC THOR energy manager 3 kW
Hot water preparation and building heating with solar power AC•THOR is a 0 - 3 kW continuously controlled photovoltaic power manager for hot water, electrical heat sources and optional heating. Simple & efficient: The AC•THOR controls the electrical heat source depending on the availability of PV energy and the heat requirement. It does this for both hot water and room heating. It ensures your personal living comfort fully automatically. In a residential building that has been built or renovated to today's thermal standards, the AC•THOR replaces the conventional, water-based building technology. Any missing residual energy can be drawn from the public power grid. Of course, the AC•THOR can also be integrated into conventional, water-based systems such as buffer tanks. Its flexibility leaves nothing to be desired. Thanks to the built-in touch display, it can be operated at any time without additional devices. And it's child's play to install. Advantages 30% cost savings compared to conventional systems through self-generated energy Maintenance-free thanks to cables instead of pipes Reduction in size of the building services room System open for various inverters, battery systems and smart homes Enables affordable housing even in residential construction Up to 85% PV self-consumption/own use even without battery storage Technical data Mains voltage: 230 V, 50 Hz Outputs: 0-3000 W continuously regulated + switching output 16 A Mains connection: Single-phase, earthed plug Consumer connection: protective contact socket for resistive loads Display: color graphics, touch screen 2.83" Connection cable: 2.8 m Dimensions (W x H x D): 135 x 210 x 65 mm
€725,00
My-PV My-PV Digital Meter P1 Interface for AC-THOR/AC-THOR9s
The P1 digital meter interface is intended exclusively for connecting the AC•THOR and AC•THOR 9s PV power managers to the P1 digital meter via the Modbus RTU gateway and thus being able to evaluate information about excess power from the photovoltaic system without an additional meter. Any other use may damage the P1 digital meter interface. Before commissioning, carefully read the AC•THOR installation instructions and the operating manual available online. Connect the RJ12 connector of the interface to the right socket of the electricity meter P1. Connect the AC•THOR's Modbus RTU gateway to the terminal block of the interface using a shielded three-core cable (length: max. 1000 m). Connect points A and B on the AC•THOR side of the cable to the supplied 120 Ω resistor.
€60,00
My-PV My-PV screw-in heater 3kW
The easiest way to increase self-consumption/use. The 3 kW screw-in heater was developed especially for use with the AC•THOR photovoltaic power manager and the 9 kW screw-in heater was developed for use with the AC•THOR 9s photovoltaic power manager. The screw-in heaters can be installed in fresh water and buffer tanks. Their special design means that the heating elements are subjected to very low thermal surface loads, which directly contributes to increasing the product's service life.R or AC•THOR 9s Continuously adjustable by photovoltaic power manager AC•THOR or AC•THOR 9s The desired hot water temperature can be set using a rotary knob. The AC•THOR or AC•THOR 9s detects the switch-off and automatically goes into standby mode for minimal power consumption. A regulatory safety temperature limiter is of course integrated. However, some projects require higher temperatures, for example when a buffer tank is to be charged to over 90°C. For this purpose, screw-in heaters are also available without a thermostat, only with a safety temperature limiter. In any case, the temperature sensor included with the AC•THOR and the AC•THOR 9s must be used to end the heating process. Advantages With manually adjustable target temperature (bimetal thermostat) 1.5 inch standard thread Single-phase or three-phase Optionally also without thermostat, only with safety temperature limiter Technical data 3kW Heating power: 0 - 3,000 W Mains connection: Single-phase, earthed plug, 230 V, 50 Hz Protection class: IP45 Connection cable: 2.8 m Dimensions (W x H x D): 88 x 88 x 518 mm
€169,00
My-PV My-PV screw-in heater 9kW
The easiest way to increase self-consumption/use. The 3 kW screw-in heater was developed especially for use with the AC•THOR photovoltaic power manager and the 9 kW screw-in heater was developed for use with the AC•THOR 9s photovoltaic power manager. The screw-in heaters can be installed in fresh water and buffer tanks. Their special design means that the heating elements are subjected to very low thermal surface loads, which directly contributes to increasing the product's service life.R or AC•THOR 9s Continuously adjustable by photovoltaic power manager AC•THOR or AC•THOR 9s The desired hot water temperature can be set using a rotary knob. The AC•THOR or AC•THOR 9s detects the switch-off and automatically goes into standby mode for minimal power consumption. A regulatory safety temperature limiter is of course integrated. However, some projects require higher temperatures, for example when a buffer tank is to be charged to over 90°C. For this purpose, screw-in heaters are also available without a thermostat, only with a safety temperature limiter. In any case, the temperature sensor included with the AC•THOR and the AC•THOR 9s must be used to end the heating process. Advantages With manually adjustable target temperature (bimetal thermostat) 1.5 inch standard thread Single-phase or three-phase Optionally also without thermostat, only with safety temperature limiter Technical data 9kW Heating power: 0 - 9,000 W Mains connection: Three-phase, 3x230 V 50Hz Protection class: IP45 Connection cable: 2.8 m Dimensions (W x H x D): 88 x 88 x 873 mm
€306,00

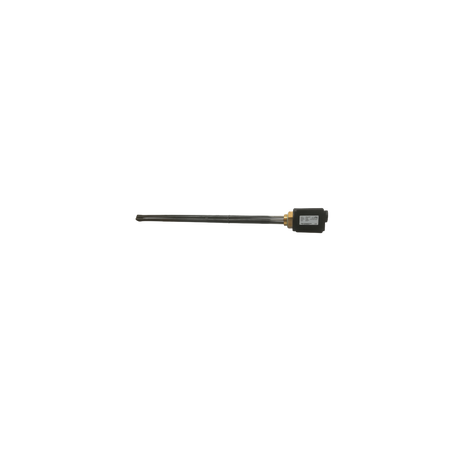

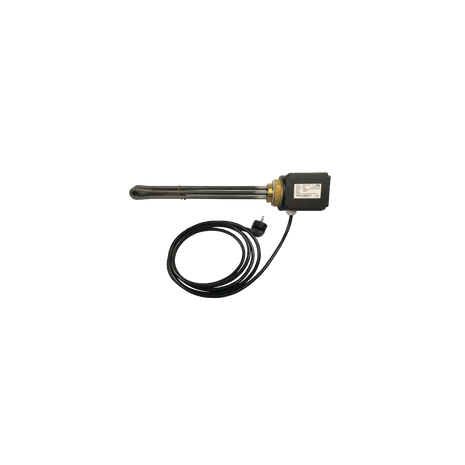

My-PV My-PV immersion heater 1.5
The easiest way to increase self-consumption/use. The 3 kW screw-in heater was developed especially for use with the AC•THOR photovoltaic power manager and the 9 kW screw-in heater was developed for use with the AC•THOR 9s photovoltaic power manager. The screw-in heaters can be installed in fresh water and buffer tanks. Their special design means that the heating elements are subjected to very low thermal surface loads, which directly contributes to increasing the product's service life.R or AC•THOR 9s Continuously adjustable by photovoltaic power manager AC•THOR or AC•THOR 9s The desired hot water temperature can be set using a rotary knob. The AC•THOR or AC•THOR 9s detects the switch-off and automatically goes into standby mode for minimal power consumption. A regulatory safety temperature limiter is of course integrated. However, some projects require higher temperatures, for example when a buffer tank is to be charged to over 90°C. For this purpose, screw-in heaters are also available without a thermostat, only with a safety temperature limiter. In any case, the temperature sensor included with the AC•THOR and the AC•THOR 9s must be used to end the heating process. Advantages With manually adjustable target temperature (bimetal thermostat) 1.5 inch standard thread Single-phase or three-phase Optionally also without thermostat, only with safety temperature limiter Technical data 3kW Heating power: 0 - 3,000 W Mains connection: Single-phase, earthed plug, 230 V, 50 Hz Protection class: IP45 Connection cable: 2.8 m Dimensions (W x H x D): 88 x 88 x 518 mm
€244,00

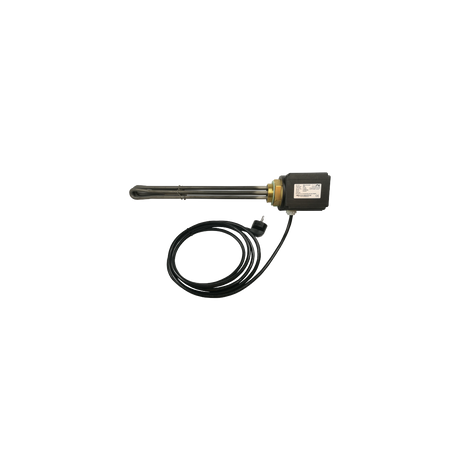

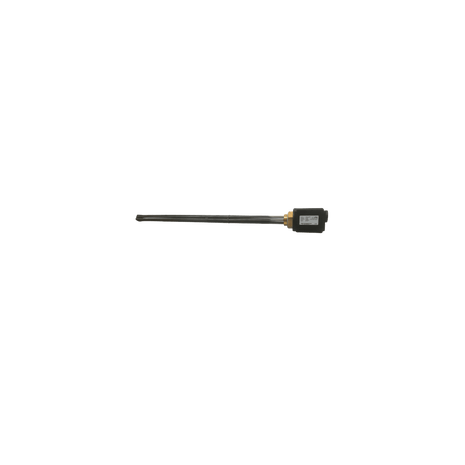

My-PV My-PV immersion heater 1.5
The easiest way to increase self-consumption/use. The 3 kW screw-in heater was developed especially for use with the AC•THOR photovoltaic power manager and the 9 kW screw-in heater was developed for use with the AC•THOR 9s photovoltaic power manager. The screw-in heaters can be installed in fresh water and buffer tanks. Their special design means that the heating elements are subjected to very low thermal surface loads, which directly contributes to increasing the product's service life.R or AC•THOR 9s Continuously adjustable by photovoltaic power manager AC•THOR or AC•THOR 9s The desired hot water temperature can be set using a rotary knob. The AC•THOR or AC•THOR 9s detects the switch-off and automatically goes into standby mode for minimal power consumption. A regulatory safety temperature limiter is of course integrated. However, some projects require higher temperatures, for example when a buffer tank is to be charged to over 90°C. For this purpose, screw-in heaters are also available without a thermostat, only with a safety temperature limiter. In any case, the temperature sensor included with the AC•THOR and the AC•THOR 9s must be used to end the heating process. Advantages With manually adjustable target temperature (bimetal thermostat) 1.5 inch standard thread Single-phase or three-phase Optionally also without thermostat, only with safety temperature limiter Technical data 9kW Heating power: 0 - 9,000 W Mains connection: Three-phase, 3x230 V 50Hz Protection class: IP45 Connection cable: 2.8 m Dimensions (W x H x D): 88 x 88 x 873 mm
€406,00

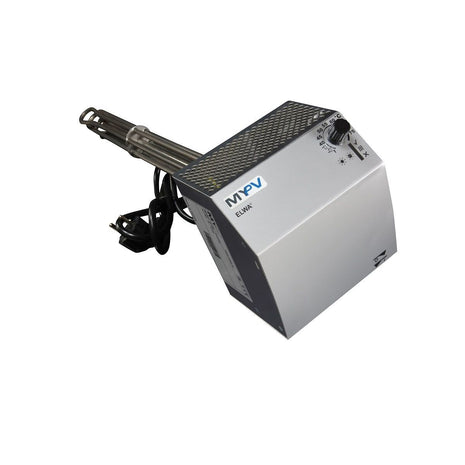

My-PV My-PV ELWA / PV hot water device, rated output DC 2kW
ELWA is a 2kW photovoltaic water heating device. Direct current from photovoltaic modules is transferred directly to the built-in heating element and immediately converted into heat without any loss. The built-in MPP tracker ensures that the PV generator is always operated at the optimal operating point (similar to a PV inverter). No connection to the power grid is required for operation, as the device is powered by the PV generator (pure island operation). The desired hot water temperature is set using a rotary knob, and LED displays provide information about the current device status.
€647,00

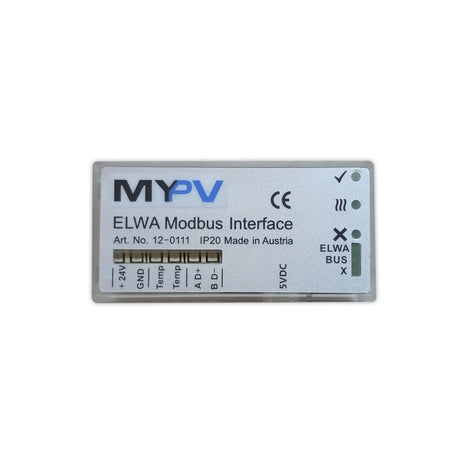

My-PV My-PV ELWA Modbus interface for ELWA
The ELWA Modbus interface acts as a link to a Modbus bus system. Due to the bus capability, it is necessary to assign bus addresses when operating multiple devices. The ELWA Modbus interface can be used with all ELWA devices with firmware version 1.30 or higher. Devices with serial numbers less than 120100160810xxxx are equipped with earlier firmware versions.
€112,00
My-PV My-PV terminals for electricity meters 100A
Max. wire diameter 23 mm, 51 x 41 x 65 mm (W x H x L)
€136,00
My-PV My-PV terminals for electricity meters 200A
Max. wire diameter 23 mm, 51 x 41 x 65 mm (W x H x L)
€163,00
My-PV My-PV terminals for electricity meters 400A
Max. wire diameter 36 mm, 67 x 50 x 87 mm (W x H x L)
€204,00

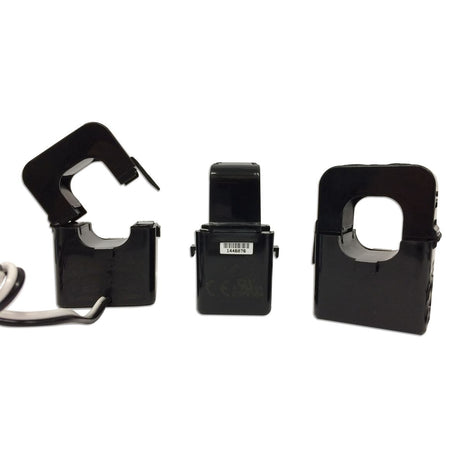

My-PV My-PV terminals for electricity meters 600A
Max. wire diameter 36 mm, 67 x 50 x 87 mm (W x H x L)
€244,00

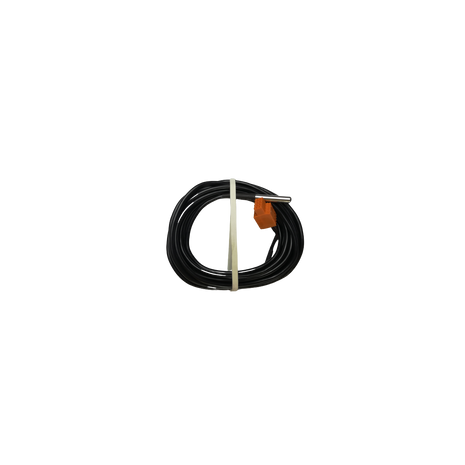

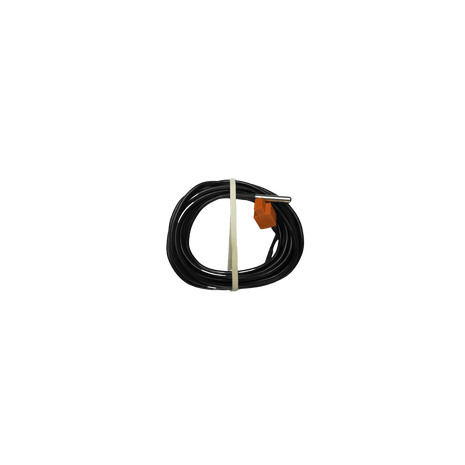

My-PV My-PV temperature sensor AC-THOR
The AC•THOR can also provide hot water and ensure the desired water temperature. The my-PV temperature sensor is required for this. Three single-phase heating elements can be connected and each equipped with its own temperature sensor. The AC•THOR always comes with a temperature sensor; additional ones may need to be purchased separately.
€37,00

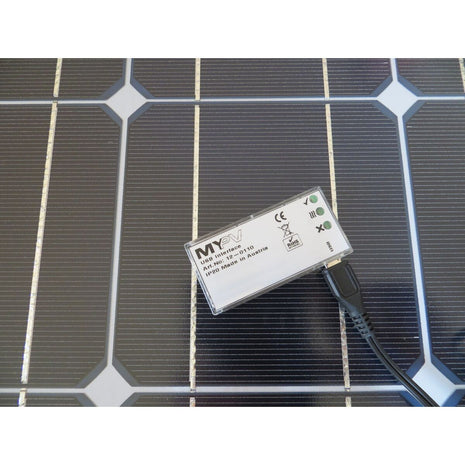

My-PV My-PV USB interface for all ELWA / AC ELWA / PLA devices
The ELWA USB interface is intended exclusively for use with the ELWA series of electrical water heating devices. It establishes the connection between a Windows PC and the internal IR interface. To do this, a license-free "Virtual Com Port Driver" from FTDI® must be installed on the PC.
€112,00
My-PV My-PV WiFi Meter / Wi-Fi Energy Meter incl. 3x brackets 75A
The my-PV WiFi Meter maximizes the self-consumption of your PV system in the simplest way. The my-PV WiFi Meter analyses the power flows of the photovoltaic system. my-PV devices receive wireless information from the WiFi Meter. This means that only the energy that is currently available is used to generate heat. There is therefore no feed-in to the power grid: PV self-consumption is maximised and the public low-voltage grid is relieved. The my-PV WiFi Meter is installed in the distribution cabinet directly after the energy supplier's meter and measures the load flow via three external split current transformers. Parameterisation is very easy via a web interface.
€256,00
SolarEdge SolarEdge Home Hot Water Controller 3 kW
Maximizes self-consumption by storing excess solar energy as hot water.
€458,00
SolarEdge SolarEdge Home Hot Water Controller 5 kW
Maximizes self-consumption by storing excess solar energy as hot water.
€514,00
