The balcony power plant Pro+ 2000W/800W combines four Viessmann Vitovolt 300-DG M500WT modules with the Anker SOLIX Solarbank 4 E5000 Pro and combines high PV performance with a powerful storage system. The Vitovolt 300-DG M WT series uses bifacial glass modules with N Type TOPCon cell technology, thereby enabling the use of sunlight via the front and back of the module. With four modules of 500 Wp each, the set achieves an installed PV output of a total of 2000 Wp, while the grid-connected output power is set to 800 W in intended operation. The Solarbank 4 Pro has 5024 Wh nominal capacity, four independent MPPT trackers and supports a total PV input power of up to 5000 W. In addition to 800 W grid-connected operation, the integrated inverter also enables an output power of up to 2500 W with the appropriate connection type. About the Anker With the app as well as WLAN and Bluetooth, energy production, storage status and energy flows can be conveniently monitored and controlled. 2000 Wp PV total output with 4 × 500 Wp Viessmann Vitovolt 300-DG M500WT 5024 Wh LiFePO4 storage with integrated inverter 4 MPPT trackers with up to 5000 W PV input power and 800 W mains output This Pro+ Set combines 2000 Wp solar power with a 5 kWh Storage system and is suitable for high self-consumption of the solar power generated. The Viessmann glass glass modules and the Anker SOLIX Solarbank 4 Pro form a powerful and modularly expandable overall system. Scope of delivery: 4x Viessmann Vitovolt 300-DG M500WT 500 Wp solar module, 1x Anker SOLIX Solarbank 4 E5000 Pro, 1x Smart Meter Gen2 (3-phase)

Read more less

Platin+ balcony power plant with Anker SOLIX Solarbank 4 E5000 Pro & Viessmann Vitovolt 460 Wp modules – powerful, intelligent and expandable Get the most out of your balcony power plant - with four powerful Viessmann Vitovolt solar modules, each with 460 Wp in an elegant full black design. With a total output of an impressive 1,840 Wp, the Platin+ set is ideal for anyone who wants to generate a lot of their own solar power, store it and use it flexibly in the household. The high-quality Viessmann solar modules combine modern cell technology with an attractive, completely black look. In combination with the Anker SOLIX Solarbank 4 E5000 Pro You get a powerful storage solution with which excess solar power can be temporarily stored and used in the evening, at night or when there is little sunlight. Overall performance: 1,840 Wp, consisting of four Viessmann Vitovolt Full Black solar modules, each with 460 Wp. Solar modules: High-quality monocrystalline Viessmann Vitovolt solar modules with modern cell technology for high energy yield and reliable performance. Full black design: Black solar cells, a black module frame and a harmonious overall look ensure a particularly elegant appearance. High performance: The high overall module output enables particularly efficient solar power generation and offers high yield potential even in changing weather conditions. Robust construction: Durable and weather-resistant glass-glass design for long-term outdoor use. Storage: Anker SOLIX Solarbank 4 E5000 Pro The powerful storage solution makes it possible to store solar power generated during the day for later use. The system is controlled and monitored conveniently via the Anker SOLIX app. Scope of delivery: 4x Viessmann Vitovolt 300-DG M460 AT Allblack solar module, each with 460 Wp 1x Anker SOLIX Solarbank 4 E5000 Pro A Anker SOLIX Smart Meter is not included.

Read more less

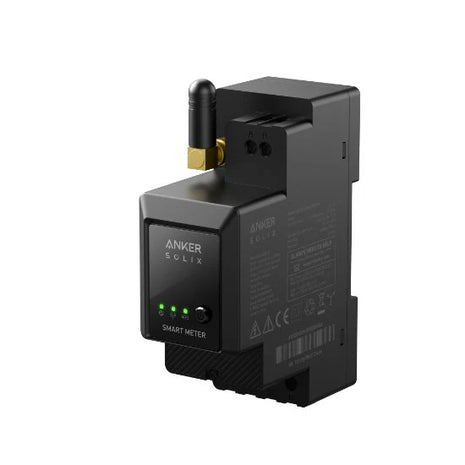

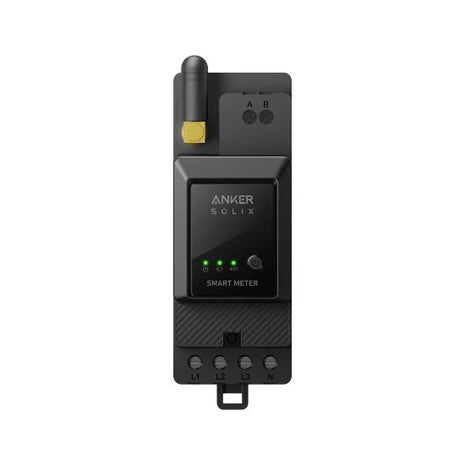

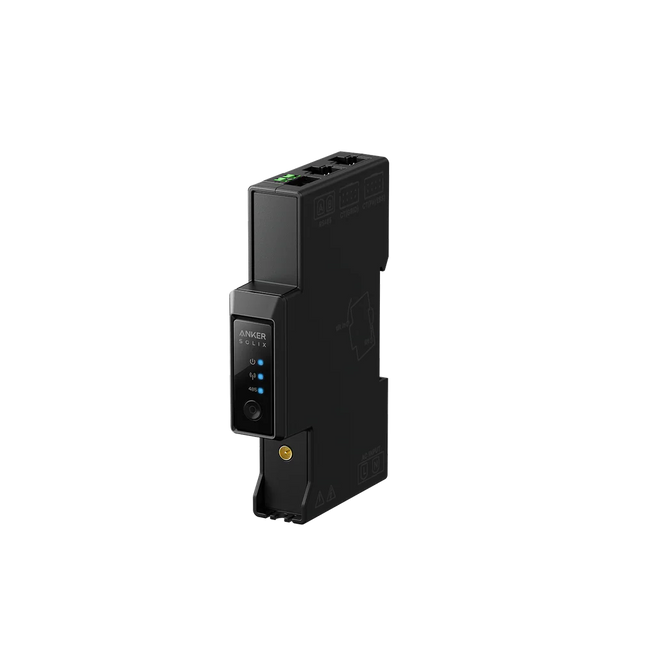

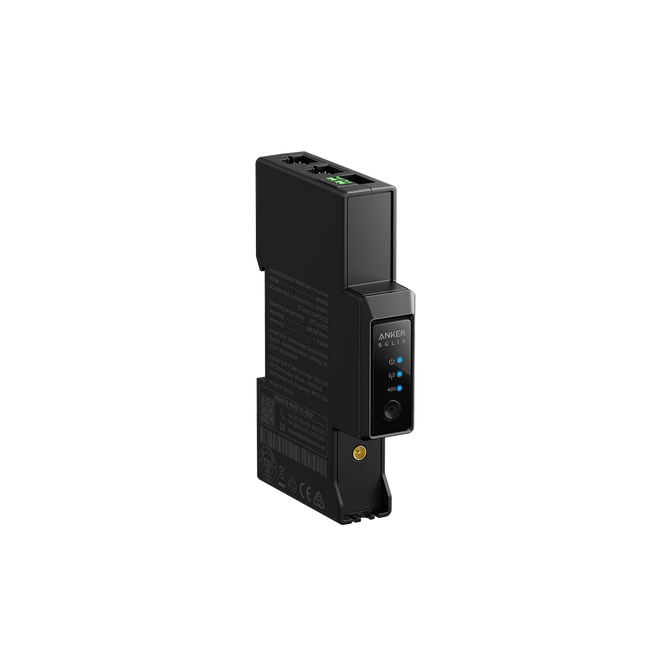

The Anker SOLIX Smart Meter Gen 2 in the three-phase version is a compact energy meter Anker SOLIX series for real-time monitoring of voltage, current and power in the home network. It records the current energy requirement and enables compatible Solarbank Systems to precisely adjust their performance in just three seconds. The household network and, in supported systems, additional photovoltaics or energy storage currents can be monitored separately via separate CT connections. Communication takes place via Bluetooth, 2.4 GHz WLAN and RS485, allowing both wireless and wired connections. Thanks to its compact design with a width of only 19 mm and mounting on a 35 mm DIN rail, the device is particularly suitable for installation in a distribution box. With measured values up to 120 A pro Channel, protection class IP20 and an intended service life of 10 years, the smart meter is designed for stationary use indoors. Real-time measurement with system adjustment within just 3 seconds Three-phase measurement with up to 120 A pro Channel and accuracy class 1 Bluetooth, 2.4 GHz WLAN and RS485 for flexible communication The Anker SOLIX Smart Meter Gen 2 precisely records the energy flows of a household and provides the measurement data for intelligent energy management. In conjunction with compatible Anker SOLIX Solarbank In this way, the storage capacity of systems can be regulated as required and self-consumption can be optimized.

Read more less

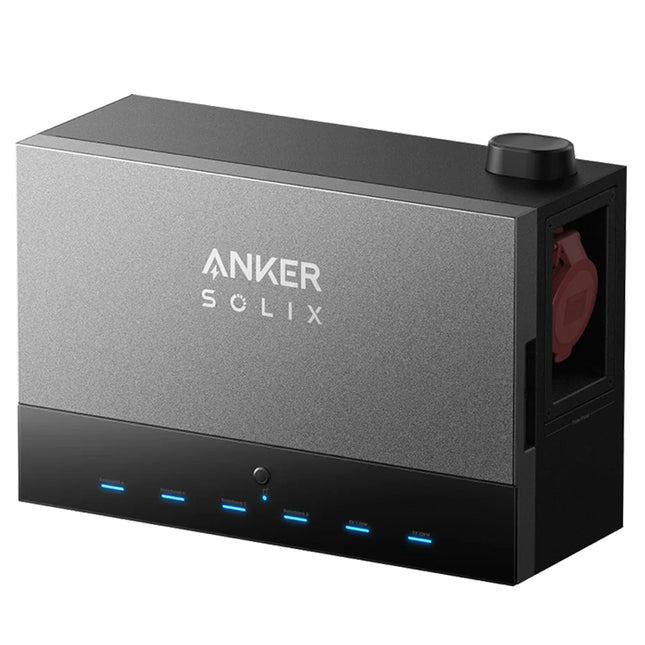

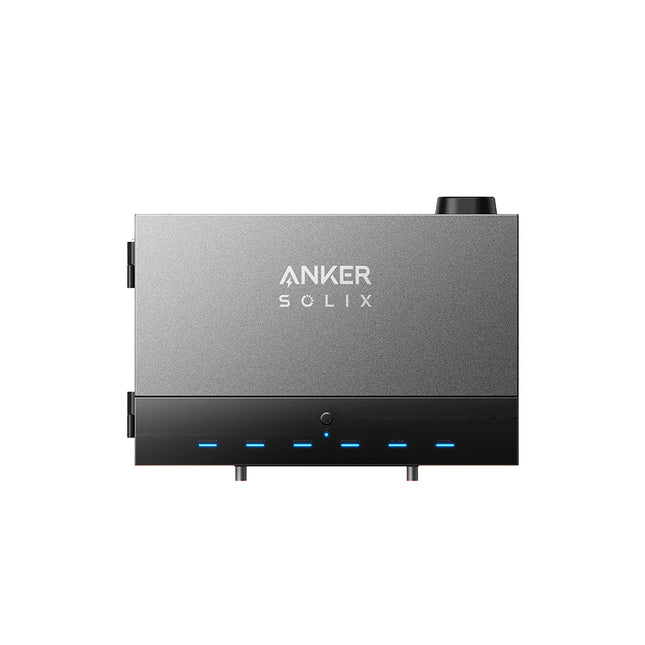

This Anker SOLIX Solarbank Power Dock is the central distribution unit of the modular Solarbank Multisystem series. It connects up to four compatible ones Solarbank units and bundles their energy to supply the household. In the maximum system configuration, the series allows up to 14.4 kW PV input power, 4.8 kW AC output power and 64.5 kWh Storage capacity. Four integrated Schuko connections are used to connect each one Solarbank Systems with the Power Dock. In addition, the device supports single-phase and three-phase power connections as well as the connection of a suitable EV charger. The power dock must be installed and registered by a certified electrician, while compatible storage and PV components can then be added in a modular manner. Up to four compatible Solarbank Operate units in parallel Maximum Multisystem Power of 14.4 kW PV and 4.8 kW AC EV charging port for single-phase and three-phase systems This Anker SOLIX Power Dock forms the central interface between Solarbank Storage, home network and optional e-mobility. It is suitable for modularly expandable SOLIX systems that go beyond the performance limits of a classic balcony power plant. Scope of delivery: 1x Anker SOLIX Power Dock

Read more less

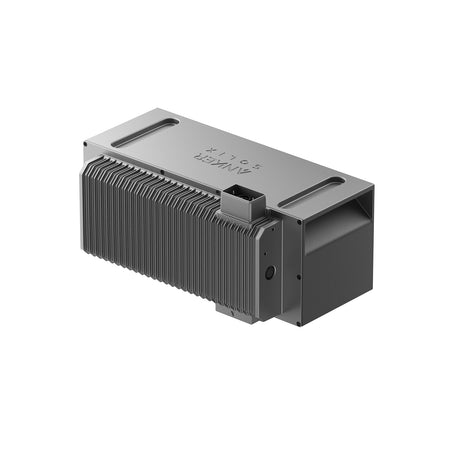

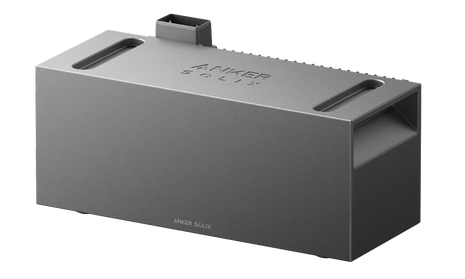

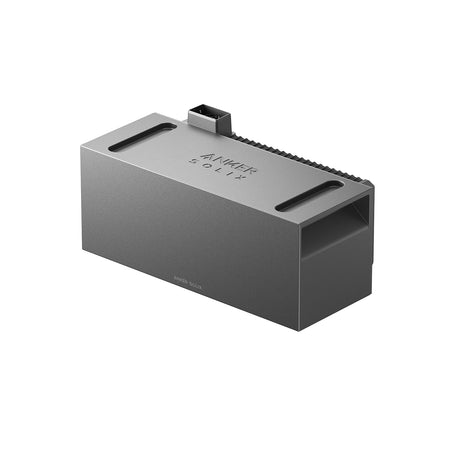

The Anker SOLIX BP5000 is a modular LiFePO4 expansion battery to increase storage capacity Anker SOLIX Solarbank systems. With 5,024 Wh of additional capacity, the module stores excess solar power for use in the evening, at night or when there is higher energy demand. Within the Anker SOLIX series, the total capacity can be flexibly increased up to 30 using several BP5000 modules kWh expand. The expansion takes place via the stackable plug and play concept and is designed to be used together with those approved by the manufacturer Solarbank models. LiFePO4 cells, up to 10,000 charging cycles and a stated product lifespan of 15 years support long-term use. The IP66 protected housing allows operation indoors and outdoors at temperatures from minus 20 to plus 55 degrees Celsius. 5,024 Wh additional storage capacity Up to 30 kWh Total capacity in the compatible system 10,000 charging cycles and IP66 protection The Anker SOLIX BP5000 expands compatibles Solarbank Systems around 5,024 Wh storage capacity. The long-lasting LiFePO4 battery is suitable for modularly increasing the self-consumption of self-generated solar power. Scope of delivery: 1x Anker SOLIX BP5000 expansion battery

Read more less

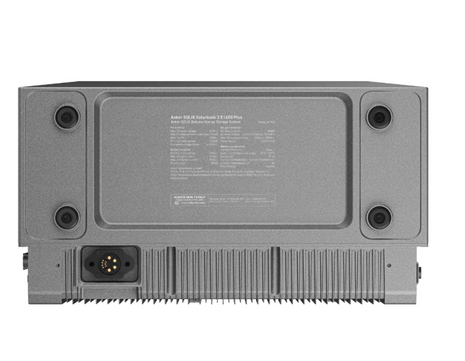

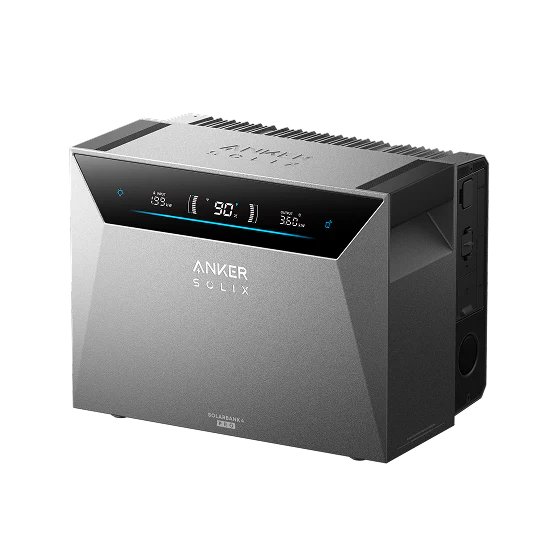

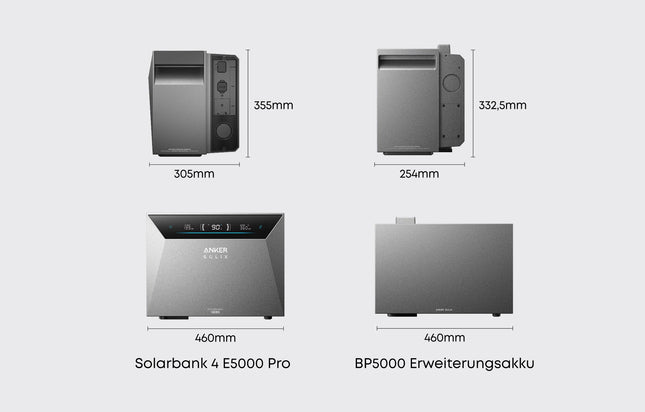

The Anker SOLIX Solarbank 4 E5000 Pro is a modular all-in-one solar storage system from the Solarbank Series for balcony power plants and smaller photovoltaic systems. The base unit combines a LiFePO4 battery with 5,024 kWh Rated energy, four MPPT trackers and a bidirectional inverter in a weatherproof housing. The system processes a total solar output of up to 5000 W via the four PV inputs and can therefore efficiently use differently aligned module groups. In ready-to-plug-in operation, the Solarbank Up to 800 W is available for the home network, while the integrated off-grid connection can supply consumers with up to 2500 W. With up to five BP5000 expansion batteries, the series' storage capacity increases from 5,024 kWh to a maximum of around 30 kWh. The app connection via WLAN and Bluetooth, protection class IP66, 10,000 charging cycles, a product lifespan of 15 years and a ten-year guarantee support long-term use. 5,024 kWh LiFePO4 storage, modular up to 30 kWh expandable 5000W PV input power with four independent MPPT trackers 800 W plug and play operation and up to 2500 W AC power The Solarbank 4 E5000 Pro combines storage, solar controllers and inverters in a robust system for high utilization of self-generated solar power. It is particularly suitable for larger balcony power plants and small PV systems whose storage capacity needs to be flexibly expanded later. Scope of delivery: 1x Anker SOLIX Solarbank 4 E5000 Pro, 1x AC cable 3 m

Read more less

Maximum power for your balcony with 8x Viessmann Vitovolt 300-DG M500WT 500 Wp bifacial modules, Anker SOLIX Solarbank 4 Pro and 5x BP5000 expansion memory The powerful balcony power plant combines eight Viessmann Vitovolt 300-DG M500WT solar modules with a total of 4,000 Wp module output and the intelligent Anker SOLIX Solarbank 4 Pro Storage system. The eight bifacial Viessmann modules each offer 500 Wp of power, modern N Type TOPCon cell technology and a module efficiency of 22.5 percent. Thanks to the glass/glass structure, the solar modules can also use light from the rear to generate electricity when installed appropriately. The Anker SOLIX Solarbank 4 E5000 Pro already offers 5,024 Wh storage capacity and processes up to 5,000 W PV input power via four MPPT trackers. Together with five Anker SOLIX BP5000 expansion batteries, the system achieves a total storage capacity of 30,144 Wh and thus offers large reserves for the use of self-generated solar power. The modular system combines high PV performance, long-lasting LiFePO4 storage technology and intelligent energy management for the highest possible self-consumption. 4,000 Wp total output with 8 Viessmann 500 Wp N Type TOPCon modules 30,144 Wh total storage capacity Solarbank 4 Pro and 5 BP5000 batteries Up to 5,000 W PV input power with 4 independent MPPT trackers The set combines 4,000 Wp bifacial Viessmann solar modules with a powerful Anker SOLIX storage system with around 30 kWh Capacity. This means that a particularly high storage capacity is available to use excess solar power even outside of the sunshine hours. Scope of delivery: 8x Viessmann Vitovolt 300-DG M500WT 500 Wp solar module, 1x Anker SOLIX Solarbank 4 E5000 Pro, 5x Anker SOLIX BP5000 expansion battery, Anker Smartmeter Gen2 (3-phase)

Read more less

The balcony power plant Pro combines two Viessmann Vitovolt 300-DG M460 AT allblack solar modules with 920 Wp total output and the Anker SOLIX Solarbank 4 E5000 Pro. The solar modules of the Vitovolt 300-DG series use bifacial N type TOPCon cells and a robust glass structure for reliable power generation. The Anker SOLIX Solarbank 4 E5000 Pro combines a LiFePO4 storage device with 5,024 Wh, a bidirectional inverter and four independent MPPT trackers in one device. When ready to plug in, the system feeds up to 800 W into the home network and supplies running consumers directly with solar power. Excess solar energy is stored and can be used in the household as needed at a later date. The large storage capacity and the possibility of expansion up to 30 kWh offer additional reserves for later expansion of the solar system. 920 Wp total output with two bifacial Viessmann glass glass modules5,024 Wh LiFePO4 storage, up to 30 kWh expandable800 W mains feed-in and up to 2,500 W at the emergency power output The balcony power plant combines powerful full black solar modules with a particularly large and intelligently controllable power storage system. This means that self-generated solar power can be stored, used at different times and the electricity purchased from the public grid can be reduced. Scope of delivery: 2x Viessmann Vitovolt 300-DG M460 AT allblack solar module, 1x Anker SOLIX Solarbank 4 E5000 Pro, 1x Anker SOLIX Smart Meter Gen 2, 1x AC cable with Schuko plug 3 m, 1x tool for dismantling the PV connectors
