Heat pumps

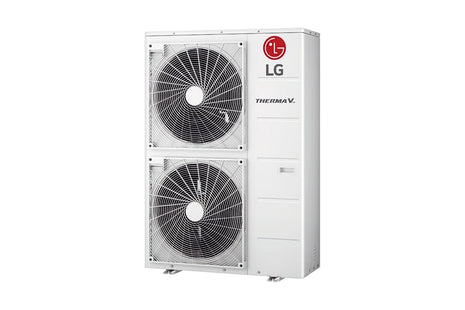

Air/water heat pump Therma V Hydrosplit R32, HU163MRB, 3-phase, output range 16 kW + indoor unit HN1616Y.NB1 The LG Therma V Hydrosplit heat pump series separates the indoor and outdoor unit by a connection with water pipes. The heat exchanger is located in the outdoor unit, which reduces the risk of refrigerant leaks in the room. THERMA V R32 Hydrosplit IWT (with integrated hot-water tank) is a unit for hot-water supply, space heating and cooling. In this solution, the internal hot-water tank is conveniently connected to a separate outdoor unit. On the other hand, in the Hydrobox version Hydrosplit is a solution for heating and cooling rooms with great flexibility of installation, thanks to the option of wall mounting. TECHNICAL FEATURES The Therma V Hydrosplit series (Hydrobox & IWT) is a generation of LG heat pumps for heating, cooling and domestic hot-water (DHW) production. Pumps of this type stand out for high heating output even at low temperatures, a large operating range and a reduced noise level. Features of the devices High energy efficiency (SCOP 4.60 / A +++) Wide operating range (ambient temperature: -25 ~ 35 °C / water side: 15 ~ 65 °C) Built-in hydraulic components in the indoor unit: water pump, expansion vessel, vent, etc.) Hot-water tank (200 L) - IWT Buffer tank (40 L) and expansion vessel for hot water (8 L) available as an option. Built-in water flow and pressure sensors for real-time monitoring of the water level Advanced water pump control (optimal flow, constant flow, constant flow, constant T) Improved control logic for the second circuit High-performance refrigerant R32 R1 scroll compressor Black Fin anti-corrosion coating LG ThinQTM KEYMARK / MCS / Eurovent certification

Read more Less

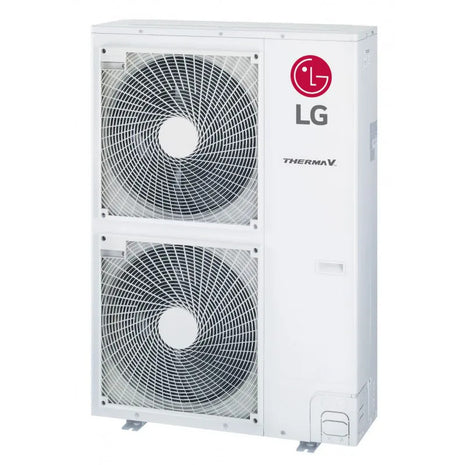

Air-to-water heat pump Therma V Monobloc S R32 HM123MR.U34 - 3 phases - 12.0 kW The Therma V Monobloc S series is the second generation of LG monoblocs for R32. The S symbol ("silence / supreme") means that the monobloc of this series stands out for a low noise level and the best performance of the Therma V series. LG monobloc units do not need refrigerant lines. These units are installed outdoors and connected to the building installation via water pipes. The plate heat exchanger, the water pump and the expansion vessel are housed in the casing of the monobloc heat pump. This means simple and quick installation of the unit, even in systems that are already in operation. TECHNICAL FEATURES The Therma V Monobloc S R32 series is a generation of low-noise LG heat pumps designed for heating, cooling and domestic hot-water production (DHW). The "all-in-one" concept was applied to pumps of this type, i.e. no work related to installing the refrigerant. Easy installation goes hand in hand with the universal character of the device and its high seasonal energy efficiency, which leads to numerous applications of the heat pump on offer in residential buildings and in selected utility facilities. Features of the device High energy efficiency (SCOP 4.67 / A +++) Excellent performance at low ambient temperatures (100%; -15°C) Wide operating range (ambient temperature: -25 ~ 35 °C / water side: 15 ~ 65 °C) Low noise, 32 to 35 dB (A) (sound pressure, quiet operation) R32 high-performance refrigerant R1 scroll compressor Black Fin anti-corrosion coating LG ThinQTM KEYMARK / MCS / Eurovent certification

Read more Less
