Pylontech Force

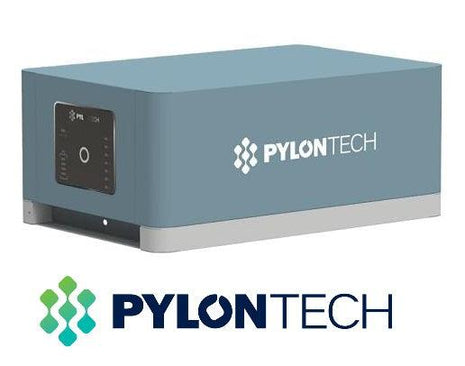

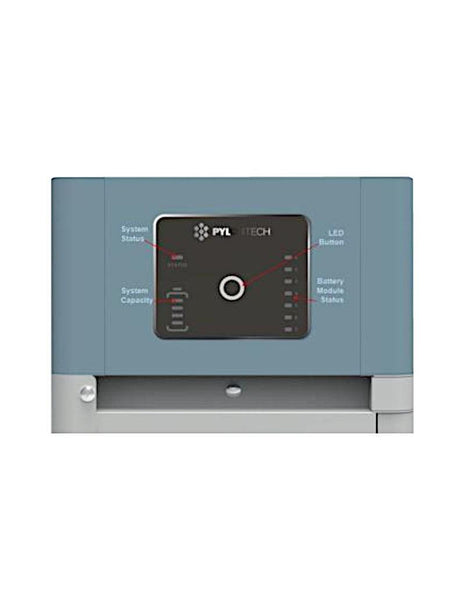

The Pylontech Force H2 BMS FC0500M-40S Is the central control module for the modular high-voltage battery storage system Pylontech Force H2. It monitors and protects the connected battery modules and ensures safe and efficient operation of the entire system. Main characteristics Modular designEnables the storage system to be easily expanded by stacking 2 to 4 battery modules pro Tower, which means a total capacity of 7.1 kWh to 14.2 kWh can be achieved. Extended protective functionsThe BMS offers protection against deep discharge, overloading, overvoltage, overflow, over and under temperature, short circuit as well as reversal and thus ensures maximum operational safety. Intuitive operationAn integrated control panel with LED displays enables the system status to be monitored and the setting of the communication speed (baud rate). Width compatibilitySupports communication protocols such as CAN and Modbus and is compatible with numerous marketing inverters of leading manufacturers. Robust constructionDue to the protection class IP55, the system is suitable for both indoor and external installations. Technical data Model: FC0500M-40SDimensions (L × W × H): 450 × 296 × 190 mmWeight: 12 kgCommunication: Can, ModbusProtection class: IP55Guarantee: 5 years of manufacturer's guarantee Scope of delivery 1 × Pylontech Force H2 BMS FC0500M-40S control module The Pylontech Force H2 BMS FC0500M-40S is the perfect solution for everyone who is looking for a reliable, scalable and durable high-voltage battery system for private or commercial applications. The intelligent control and high compatibility ensure efficient and future -proof energy management.

Read More Fewer

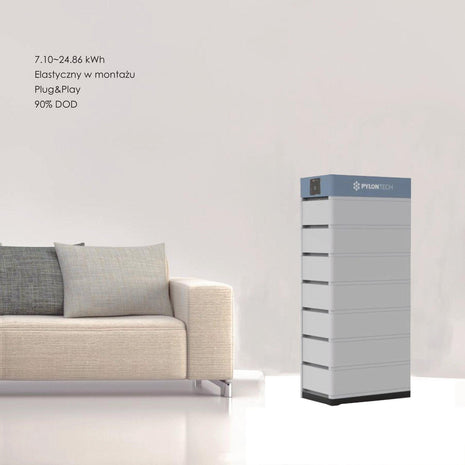

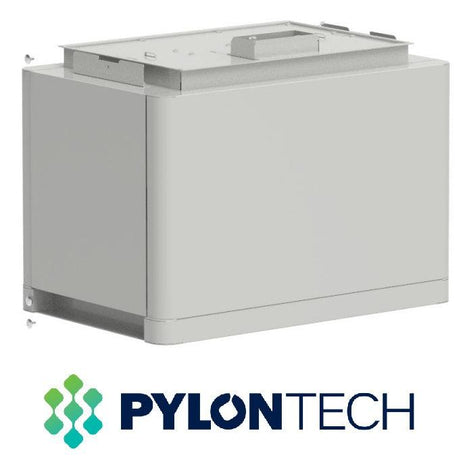

The Pylontech Force H2 battery module FH9637M is a high-quality high-voltage lithium memory module, specially developed for modular energy storage systems in the private and commercial sector. With a capacity of 3.55 kWh And a nominal voltage of 96 V offers a reliable and efficient solution for network -coupled and hybrid photovoltaic systems. Characteristics Modular design: expandable by stacking up to four modules pro Tower, for total capacities of 7.1 kWh to 14.2 kWh High cycle strength: up to 6,000 charging cycles at 95 % discharge depth for a particularly long service life Safe and robust: Lithium iron phosphate (Lifepo₄) cells with integrated BMS (battery management system) for optimal protection against overloading, deep discharge, overflow and overheating Width compatibility: supports CAN and Modbus Communication protocols, compatible with many custom-market inverters Easy installation: Compact construction and stackable design enable a space -saving and uncomplicated assembly Technical data Model: FH9637MCapacity: 3.55 kWhNominal voltage: 96 VNominal capacity: 37 AhMaximum discharge current: 18.5 aDimensions (W × H × D): 450 × 296 × 296 mmWeight: 35 kgOperating temperature range: 0 ° C to +50 ° CProtection class: IP55Communication: Can, ModbusCycles life: up to 6,000 cycles (at 95 % DOD)Guarantee: 10 years of manufacturer's guarantee Scope of delivery 1 × Pylontech Force H2 FH9637M cordless module Notice A separate BMS control module is required for operation, for example the Pylontech FC0500M-40S. The Pylontech Force H2 FH9637M offers an ideal solution for everyone who is looking for a powerful, flexible and durable energy storage system to efficiently maximize the self -consumption of solar power.

Read More Fewer
