APsystems is expanding its 3rd generation dual microinverter series with the DS3D. With an unprecedented output power of 1800 W, the DS3D can be connected to 4 high-performance modules (2 times 2 in series). With 2 independent MPPTs and an encrypted ZigBee signal, the DS3D benefits from a completely new architecture. Doubling the performance of the most powerful dual microinverter series The DS3D series achieves unprecedented performance and is compatible with other DS3 microinverters and accessories. It features 2 input channels, each with independent MPPT, and encrypted wireless Zigbee communication. With its unparalleled performance, 97% efficiency and high reliability, APsystems' DS3D microinverter is a game changer for multi-family and commercial solar deployments. A micro inverter for connecting four modules Maximum output power of 1800 W Two input channels with independent MPPT Designed for the highest possible high-performance modules (maximum input current 20 A) Maximum reliability, IP67 Encrypted Zigbee communication Integrated safety protection relay

Read more less

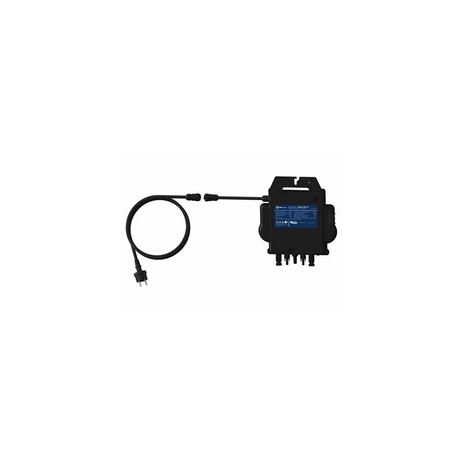

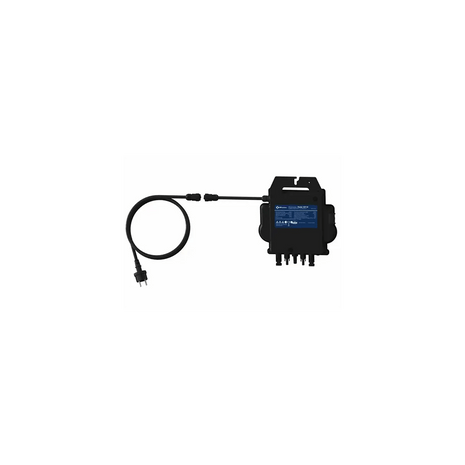

The WiFi version of the EZ1 series is APsystems' 3rd generation microinverter, specially designed for balcony and DIY systems. The EZ1 series features 2 input channels with independent MPPTs, high input current and strong output power, making it ideal for modern high-performance modules. Users can connect directly to the EZ1 series with their mobile phone and get the real-time data of the solar systems. In addition to the direct connection, the EZ1 series can also be connected to a router via WiFi and send data to cloud servers for remote monitoring. Using an AC extension cable provided by APsystems, the EZ1 series can be connected to a power outlet and output power, making connection to the power grid easy and effortless. One micro inverter can serve 2 modules Includes 5 meter solar cable with Schuko plug Maximum continuous output power 800 VA Two input channels with independent MPPTs Suitable for PV modules with high input current Maximum reliability, IP67 Integrated Wi-Fi and Bluetooth Integrated VDE relay Especially for balcony and DIY systems

Read more less

APsystems' third generation dual microinverters achieve unprecedented output power of 730VA or 880VA to match today's larger power modules. With 2 independent MPPT, encrypted Zigbee signals, DS3L and DS3 benefit from a completely new architecture and are fully backwards compatible with the QS1 and YC600 microinverters. The innovative and compact design makes the product lighter and maximizes power production. The components are encapsulated with silicone to reduce the stress on the electronics, facilitate heat dissipation, and improve water resistance. Rigorous testing methods, including accelerated life tests, ensure maximum system reliability. 24/7 energy access via apps or A web-based portal facilitates remote diagnosis and maintenance. The new DS3 series interacts with power grids through a feature called RPC (Reactive Power Control) to better manage photovoltaic power peaks in the grid. With a performance and efficiency of 97%, a unique integration with 20% fewer components, APsystems DS3L & DS3 set new standards for private and commercial PV One micro inverter can serve 2 panels Maximum continuous output power 880VA Two input channels with independent MPPT Reactive Power Control Maximum reliability, IP67 Encrypted Zigbee Communication VDE Relay Integrated

Read more less

The APSystems DS3-L microinverter is a device designed for use in photovoltaic (PV) systems. It is a high-quality microinverter that converts the direct current generated by the solar cells into usable alternating current. Features of the APSystems DS3-L microinverter Here are some features and benefits of the APSystems DS3-L microinverter: High Efficiency : The APSystems DS3-L microinverter has high efficiency, which means it can convert more direct current from the solar cells into usable alternating current, resulting in higher energy production. Compact Design : The microinverter is small and lightweight, making it easy to install and reducing the weight load on the roof where the solar panels are installed. Multiple MPPTs : The DS3-L features two Maximum Power Point Trackers (MPPT), providing greater flexibility and better energy harvesting, especially in installations where the array is exposed to shade or different orientations are used. Reliable : The microinverter is designed to be durable and reliable, with a long service life and low failure rates. 1 micro inverter for 2 solar cells 730W AC 50% more performance 2 MPPTs 97% efficiency Compact design Maximum reliability, IP67 Reactive power control Encrypted Zigbee communication Compatible with QS1 and YC600 Integrated VDE relay Advantages of the APSystem DS3-L Improved Energy Production : By converting the DC power of each panel individually, the APSystems DS3-L microinverter maximizes energy production by eliminating the power loss that occurs with the traditional string inverter configuration. Improved Monitoring : The APSystems DS3-L microinverter provides real-time monitoring of each solar panel so problems can be identified early and more easily resolved. Increased safety : The microinverter is designed with a safe DC shutdown that automatically shuts off the DC power in the event of a power failure or maintenance. Easy Installation : The compact design of the micro inverter makes it easy to install, reducing installation time and cost. The APSystems DS3-L microinverter is a powerful device that can increase energy production and improve system reliability of PV solar systems. Its features and benefits make it a popular choice for residential and commercial installations where efficiency, reliability and safety are important considerations.

Read more less

The innovative and compact design of the APSYSTEMS DS3-S microinverter makes it lighter and maximizes energy production. The components are encapsulated with silicone to reduce stress on the electronics, improve heat dissipation and increase waterproofing. Features APSYSTEMS DS3-S 600W Microinverter Rigorous testing methods, including accelerated life testing, ensure maximum system reliability. The new DS3 series interacts with power grids through a feature called RPC (Reactive Power Control) to better manage photovoltaic power peaks on the grid. With a power and efficiency of 97.3% and a unique integration with 20% fewer components, the APsystems DS3-S, DS3-L, DS3 & DS3-H set new standards for residential and commercial PV systems. One microinverter can supply 2 panels maximum continuous output power 600 VA two input channels with independent MPPTs maximum reliability, IP67 integrated VDE relay Technical data APSYSTEMS DS3-S microinverter Recommended module power: 255 - 550p W (per module). Peak power MPPT voltage range: 28-45 V Operating voltage range: 16-60 V Maximum input voltage: 60 V Maximum input current: 2x 18 A Maximum input short-circuit current: 2x 22.5 A Rated output power: 600 VA Rated output current: 2.6A at 230V Nominal output voltage/range: 230 V (184-253 V) Ambient temperature range: -40 - +65°C Dimensions (WxHxD): 263 x 218 x 41.2 mm Weight: 2.7kg Housing protection class: IP67

Read more less
