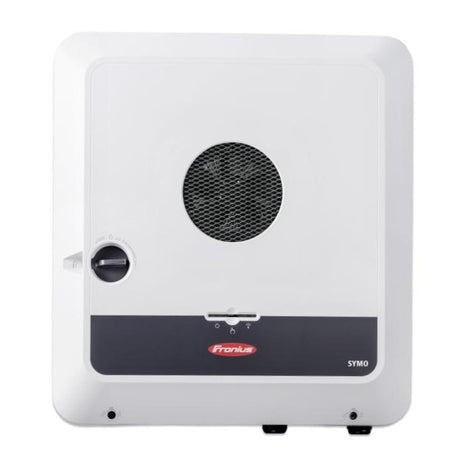

Der Fronius Symo GEN24 SC Plus überzeugt mit einer Vielzahl an integrierten Features, die vor allem die Herzen der Privatanlagenbesitzer höher schlagen lassen. Die Kommunikation über WLAN und Ethernet sowie die einfache und schnelle Integration von Drittanbieter-Komponenten bieten eine hohe Flexibilität mit anderen Software- und Hardwareprodukten. Die serienmäßig integrierte Basisnotstromversorgung PV Point garantiert Versorgungssicherheit und größtmögliche Unabhängigkeit.In der SC Variante hat Fronius die möglichen DC-Eingangsströme am Wechselrichter erhöht. Dadurch können auch Hochstrommodule problemlos angeschlossen werden. Dank der Multi Flow Technology wird längere Notstromversorgung und höherer Eigenverbrauch ermöglicht.Über offene Schnittstellen ist eine einfache Integration von Drittanbieter-Komponenten möglich. Optional bietet Fronius eine Full-Backup-Notstrom Funktion zum Betrieb von Wärmepumpen.

Read more less

Der Fronius Symo GEN24 SC Plus überzeugt mit einer Vielzahl an integrierten Features, die vor allem die Herzen der Privatanlagenbesitzer höher schlagen lassen. Die Kommunikation über WLAN und Ethernet sowie die einfache und schnelle Integration von Drittanbieter-Komponenten bieten eine hohe Flexibilität mit anderen Software- und Hardwareprodukten. Die serienmäßig integrierte Basisnotstromversorgung PV Point garantiert Versorgungssicherheit und größtmögliche Unabhängigkeit.In der SC Variante hat Fronius die möglichen DC-Eingangsströme am Wechselrichter erhöht. Dadurch können auch Hochstrommodule problemlos angeschlossen werden. Dank der Multi Flow Technology wird längere Notstromversorgung und höherer Eigenverbrauch ermöglicht.Über offene Schnittstellen ist eine einfache Integration von Drittanbieter-Komponenten möglich. Optional bietet Fronius eine Full-Backup-Notstrom Funktion zum Betrieb von Wärmepumpen.

Read more less

Product specification: DC switch-on voltage : 80 V Maximum input current (MPPT1 / MPPT2): 25A / 12.5A Maximum AC power: 10,000 VA Sealing class: IP66 Standard manufacturer warranty: 2 years Easy installation and operation Save installation time and costs with 180o quick release screws, spring clamps and easy wall mounting system. Commissioning: Fronius Solar.start Quick and easy setup from any smartphone or tablet in just three steps. Updates possible at any time Open interfaces enable easy integration of third-party components such as home automation systems. Intelligent monitoring with Solar.web Monitor, analyze and compare different PV systems quickly and conveniently on your smartphone, tablet or laptop. Solar.web helps you to offer your customers the best service.

Read more less

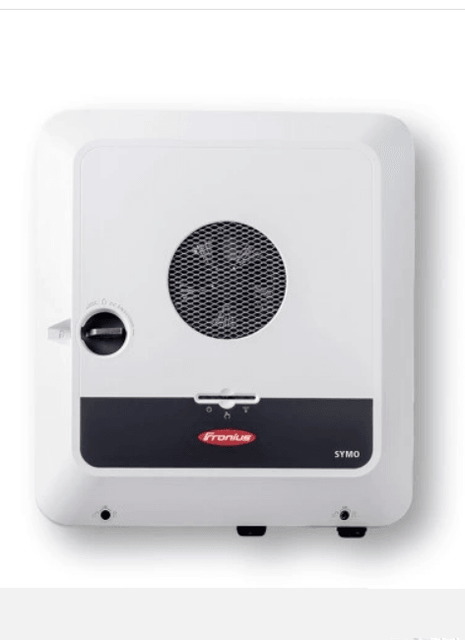

Product specification: DC switch-on voltage: 80 V Maximum input current (MPPT1 / MPPT2): 25A / 12.5A Maximum AC power: 8000 VA Sealing class: IP66 Standard manufacturer warranty: 2 years Easy installation and operation Save installation time and costs with 180o quick release screws, spring clamps and easy wall mounting system. Commissioning: Fronius Solar.start Quick and easy setup from any smartphone or tablet in just three steps. Updates possible at any time Open interfaces enable easy integration of third-party components such as home automation systems. Intelligent monitoring with Solar.web Monitor, analyze and compare different PV systems quickly and conveniently on your smartphone, tablet or laptop. Solar.web helps you to offer your customers the best service.

Read more less

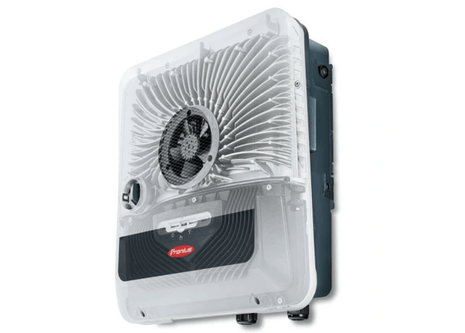

Product specification: DC switch-on voltage: 80 V Maximum input current (MPPT1 / MPPT2): 25A / 12.5A Maximum AC power: 6000 VA Sealing class: IP66 Standard manufacturer warranty: 2 years Easy installation and operation Save installation time and costs with 180o quick release screws, spring clamps and easy wall mounting system. Commissioning: Fronius Solar.start Quick and easy setup from any smartphone or tablet in just three steps. Updates possible at any time Open interfaces enable easy integration of third-party components such as home automation systems. Intelligent monitoring with Solar.web Monitor, analyze and compare different PV systems quickly and conveniently on your smartphone, tablet or laptop. Solar.web helps you to offer your customers the best service.

Read more less

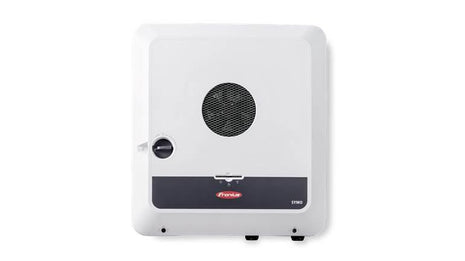

Product specification: DC switch-on voltage: 80 V Maximum input current (MPPT1 / MPPT2): 12.5 A / 12.5 A Maximum AC power: 4000 VA Sealing class: IP66 Standard manufacturer warranty: 2 years Easy installation and operation Save installation time and costs with 180º quick release screws, spring clamps and easy wall mounting system. Commissioning: Fronius Solar.start Quick and easy setup from any smartphone or tablet in just three steps. Updates possible at any time Open interfaces enable easy integration of third-party components such as home automation systems. Intelligent monitoring with Solar.web Monitor, analyze and compare different PV systems quickly and conveniently on your smartphone, tablet or laptop. Solar.web helps you to offer your customers the best service.

Read more less

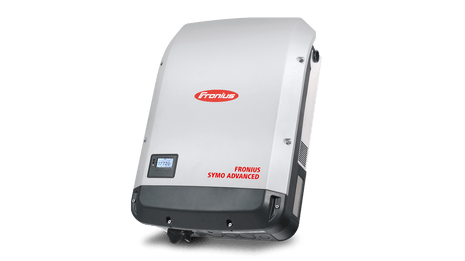

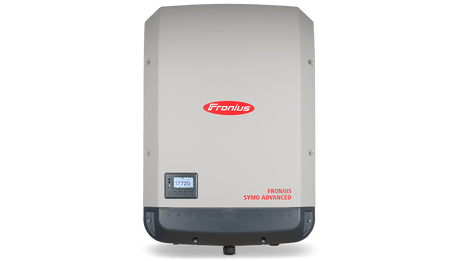

INPUT DATA Number of MPP trackers: 2 Max. input current (Idc max ): 27.0 / 16.5 A Max. short-circuit current of the module field*: 55.7 / 34.0 A DC input voltage range (Udc min - Udc max): 200 - 1000 V Starting voltage (Udc start): 200 V Nominal input voltage (Udc,r): 600 V MPP voltage range (Umpp min - Umpp max): 320 - 800 V Usable MPP voltage range: 200 - 800 Number of DC ports: 3 + 3 Max. power of the photovoltaic generator (Pdc max): 18.8 kWpeak OUTPUT DATA AC rated power (Pac,r): 12.5 kW Max. output power (Pac max): 12.5 kVA AC output current (Iac nom): 18 A Mains connection (Uac,r): 3~NPE 400/230, 3~NPE380/220 V AC voltage range (Umin - Umax): 150 - 280 V Frequency (fr): 50 / 60 Hz Frequency range (fmin - fmax): 45 - 65 Hz Non-linear distortion factor: <3% @Pnom (230/400VAC 50Hz) Power factor (cos φac,r): 0 - 1 ind,/cap, GENERAL DATA Dimensions / width: 510 mm Dimensions (height): 725 mm Dimensions (depth): 225 mm Weight: 32kg Weight with packaging: 38.4 kg Protection class : IP 66 Protection class: 1 Overvoltage category (DC/AC) 1): 2 / 3 Power consumption at night: <1W Cooling: Adjustable ventilation Installation: Indoor and outdoor installation Ambient temperature range: -25°C - +60°C Permissible humidity : 0 - 100 %. Max. altitude above sea level 2): ​​2,000 m / 3,400 m DC connection technology: 6x DC+ and 6x DC- 2.5-16 mm² screw terminals AC connection technology: 5-pin AC screw terminals 2.5-16 mm² Certifications and standards met: IEC 62109-1/-2, IEC 62116, IEC 61727, VDE 0126-1-1/A1, VDE AR-N 4105, G98/1, G99/1, AS/NZS 4777.2, UNE 206007- 1, CEI 0-21, CEI 0-16, NRS 097-2-1, TOR generator type A, EN 50549-1/-2, IEC 61683, IEC60068 PERFORMANCE COEFFICIENT Maximum efficiency (photovoltaic system - grid): 97.8% European efficiency (ηEU): 96.0 / 97.4 / 96.7% η at 5% Pac,r 3): 90.6 / 93.0 / 89.6% η at 10% Pac,r 3): 93.8 / 95.5 / 93.8% η at 20% Pac,r 3): 95.5 / 97.1 / 96.0% η at 25% Pac,r 3): 95.9 / 97.3 / 96.5% η at 30% Pac,r 3): 96.2 / 97.5 / 96.8% η at 50% Pac,r 3): 96.5 / 97.7 / 97.3% η at 75% Pac,r 3): 96.4 / 97.8 / 97.4% η at 100% Pac,r 3): 96.5 / 97.7 / 97.5% Efficiency of MPP setting: >99.9%. PROTECTIONS DC insulation measurement: Yes Overload behavior: operating point shift, power limiter DC disconnect switch: Yes DC reverse polarity protection: Yes Arc detection - AFCI (Fronius Arc Guard): Yes CONNECTIONS <li>WLAN / Ethernet LAN: Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) 6 inputs and 4 digital inputs/outputs: connection to remote control receiver, power management USB (Type A socket) 4): Data logging, updating inverters via USB stick 2x RS422 (RJ45 socket) 4): Fronius Solar Net Signal output 4): Energy management (potential-free relay output) Data logger and web server: Integrated External input 4): S0 counter connection / overvoltage protection monitoring RS485: Modbus RTU SunSpec or energy meter connection

Read more less

INPUT DATA Number of MPP trackers: 2 Max. input current (Idc max): 27.0 / 16.5 A Max. short-circuit current of the module field*: 55.7 / 34.0 A DC input voltage range (Udc min – Udc max): 200 – 1000 V Starting voltage (Udc start): 200V Nominal input voltage (Udc,r): 600 V MPP voltage range (Umpp min – Umpp max): 270 – 800 V Usable MPP voltage range: 200 - 800 V Number of DC ports: 3 + 3 Max. photovoltaic generator power (Pdc max): 15 kWpeak OUTPUT DATA Rated AC power (Pac,r): 10 kW Max. output power (Pac max): 10 kVA AC output current (Iac nom): 14.4 A Mains connection (Uac,r): 3~ NPE 400/230, 3~ NPE 380/220 V AC voltage range (Umin – Umax): 150 – 280 V Frequency (fr): 50 / 60 Hz Frequency range (fmin - fmax): 45 - 65 Hz Non-linear distortion factor: <3% @Pnom (230/400 VAC 50 Hz) Power factor (cos ?ac,r): 0 - 1 ind,/cap, GENERAL DATA Dimensions / width: 510 mm Dimensions (height): 725 mm Dimensions (depth): 225 mm Weight: 32.1 kg Weight with packaging: 38.5 kg Protection class: IP 66 Protection class: 1 Overvoltage category (DC/AC) 1): 2 / 3 Power consumption at night: < 1 W Cooling: Adjustable ventilation Installation: Indoor and outdoor installation Ambient temperature range: -25 °C to +60 °C Permissible humidity: 0 - 100 % Max. altitude above sea level 2): ​​??2,000 m / 3,400 m DC connection technology: 6x DC+ and 6x DC- 2.5-16 mm2 screw terminals AC connection technology: 5-pin AC screw terminals 2.5-16 mm2 Existing certifications and standards met: IEC 62109-1/-2, IEC 62116, IEC 61727, VDE 0126-1-1/A1, VDE AR-N 4105, G98/1, G99/1, AS/NZS 4777.2 , UNE 206007-1, CEI 0-21, CEI 0-16, NRS 097-2-1, TOR Generator Type A, EN 50549-1/-2, IEC 61683, IEC60068 PERFORMANCE COEFFICIENT Max. efficiency (photovoltaic system – grid): 97.8% European efficiency factor (?EU): 95.5 / 97.1 / 96.3 % MPP adjustment efficiency: >99.9%. PROTECTION DC insulation measurement: Yes Overload behavior: operating point shift, power limitation DC disconnect switch: Yes DC reverse polarity protection: Yes Arc detection – AFCI (Fronius Arc Guard): Yes CONNECTIONS -WLAN / Ethernet LAN: Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) -6 inputs and 4 digital inputs/outputs: connection to remote control receiver, power management -USB (Type A socket) 4): Data logging, update of inverters via USB stick -2x RS422 (RJ45 socket) 4): Fronius Solar Net -Signal output 4): Energy management (potential-free relay output) -Data logger and web server: Integrated -External input 4): S0 counter connection / overvoltage protection monitoring -RS485: Connection Modbus RTU SunSpec or energy meter

Read more less

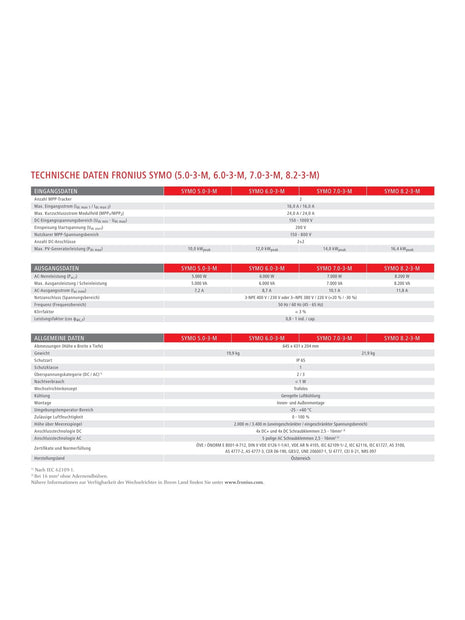

Product specifications: DC starting voltage: 200V Maximum input current: 16A / 16A Maximum AC power: 8200VA Protection class: IP65 Standard manufacturer warranty: 2 years Easy installation and operation Save time and installation costs with 180º quick release screws, spring clips and an easy wall mounting system. Commissioning: Fronius Solar.start Quick and easy configuration via any smartphone or tablet in just three steps. Updates possible at any time Open interfaces enable the easy integration of third-party components such as home automation systems. Intelligent monitoring with Solar.web Monitor, analyze and compare different PV systems quickly and conveniently on your smartphone, tablet or laptop. The Solar.web tool helps you to offer your customers the best service.

Read more less

Product specifications: DC starting voltage: 200V Maximum input current: 16A / 16A Maximum AC power: 7000VA Protection class: IP65 Standard manufacturer warranty: 2 years Easy installation and operation Saves time and installation costs thanks to 180o quick release screws, spring clips and an easy wall mounting system. Commissioning: Fronius Solar.start Quick and easy configuration via any smartphone or tablet in just three steps. Updates possible at any time Open interfaces enable the easy integration of third-party components such as home automation systems. Intelligent monitoring with Solar.web Monitor, analyze and compare different PV systems quickly and conveniently on your smartphone, tablet or laptop. The Solar.web tool helps you to offer your customers the best service.

Read more less

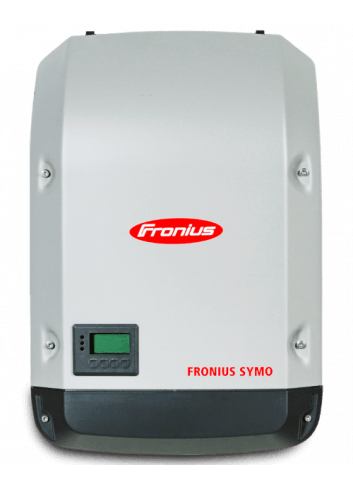

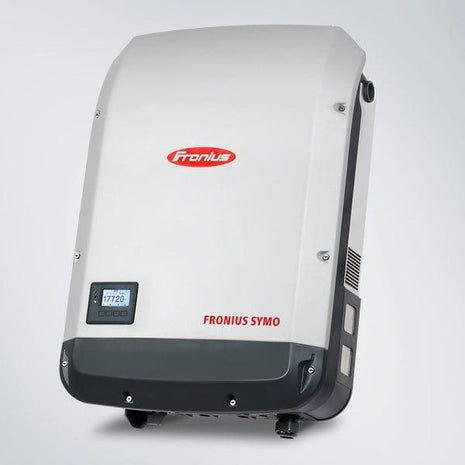

Product specification: DC switch-on voltage: 200 V Maximum input current: 16A Maximum AC power: 3700 VA Sealing class: IP65 Standard manufacturer warranty: 2 years Easy installation and operation Save installation time and costs with 180o quick release screws, spring clamps and easy wall mounting system. Commissioning: Fronius Solar.start Quick and easy setup from any smartphone or tablet in just three steps. Updates possible at any time Open interfaces enable easy integration of third-party components such as home automation systems. Intelligent monitoring with Solar.web Monitor, analyze and compare different PV systems quickly and conveniently on your smartphone, tablet or laptop. Solar.web helps you to offer your customers the best service.

Read more less

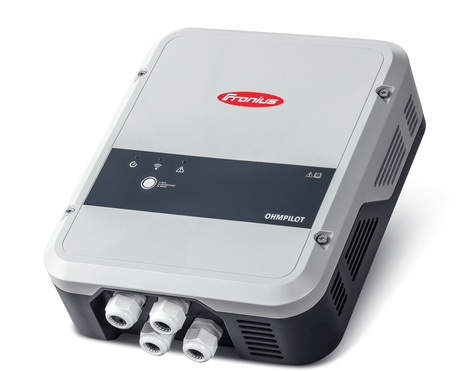

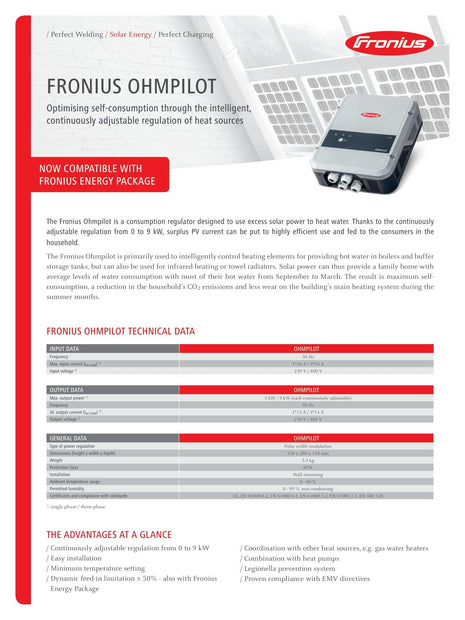

Fronius Ohmpilot 9.0-3 The Fronius Ohmpilot is a consumer controller for using excess solar energy to heat water. Thanks to the continuously adjustable output from 0 to 9 kW, excess PV energy can be used for highly efficient use and supply of household consumers. Ohmpilot is primarily used for the intelligent control of heating elements for hot water preparation in boilers and buffer tanks, but can also be used for infrared heaters or bathroom radiators. A single-family home with average water consumption can therefore cover the majority of its hot water needs from April to October with solar energy. The result is a high degree of self-sufficiency, reduced CO2 emissions in the household and the elimination of the building's main hot water supply in the summer months.

Read more less

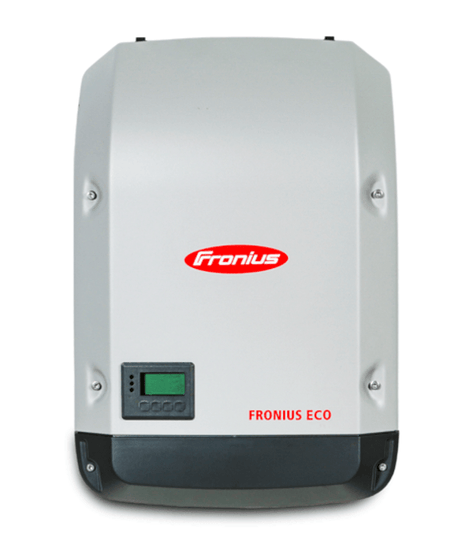

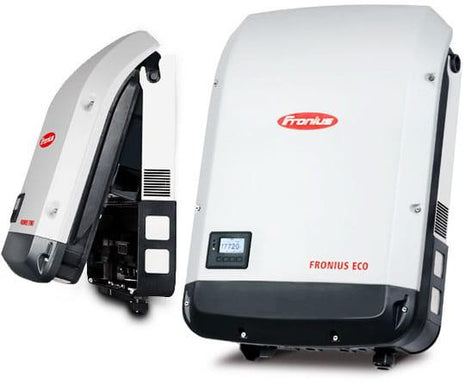

Product specification: DC switch-on voltage: 650 V Maximum input current: 47.7 A Maximum AC power: 27,000 VA Sealing class: IP66 Standard manufacturer warranty: 2 years Easy installation and operation Save installation time and costs with 180o quick release screws, spring clamps and easy wall mounting system. Commissioning: Fronius Solar.start Quick and easy setup from any smartphone or tablet in just three steps. Updates possible at any time Open interfaces enable easy integration of third-party components such as home automation systems. Intelligent monitoring with Solar.web Monitor, analyze and compare different PV systems quickly and conveniently on your smartphone, tablet or laptop. Solar.web helps you to offer your customers the best service.

Read more less

Product specification: DC switch-on voltage: 650 V Maximum input current: 44.2 A Maximum AC power: 25,000 VA Sealing class: IP66 Standard manufacturer warranty: 2 years Easy installation and operation Save installation time and costs with 180o quick release screws, spring clamps and easy wall mounting system. Commissioning: Fronius Solar.start Quick and easy setup from any smartphone or tablet in just three steps. Updates possible at any time Open interfaces enable easy integration of third-party components such as home automation systems. Intelligent monitoring with Solar.web Monitor, analyze and compare different PV systems quickly and conveniently on your smartphone, tablet or laptop. Solar.web helps you to offer your customers the best service.

Read more less

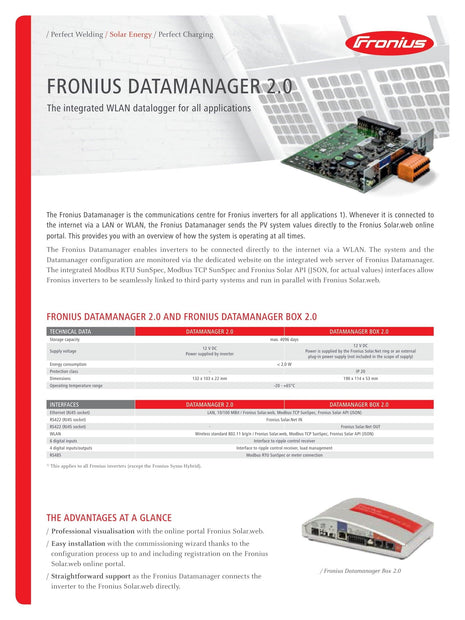

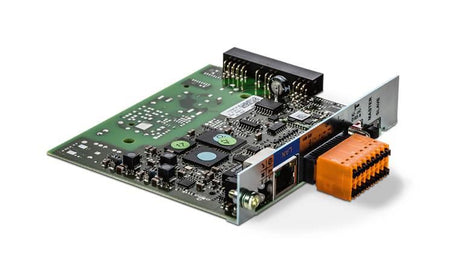

The Fronius Datamanager is a versatile communication control panel for Fronius inverters. By connecting to the Internet via a LAN or WLAN interface, the "Fronius Datamanager" transmits the values ​​of a photovoltaic system directly to the online portal "Fronius Solar.web", giving you full control over the operation of the system at all times. With the Fronius Datamanager, inverters can be connected directly to the Internet for the first time via a WLAN interface. Optimal monitoring of system operation and configuration of the Fronius Datamanager is possible via a separate web interface on the server integrated in the device.
