939,99 € Incl. VAT
plus shipping costs
Deliverable in 7–14 working days
Safe & secure checkout.
SKU: SL-FRO-Reserva-0
Barcode: 9007947678041

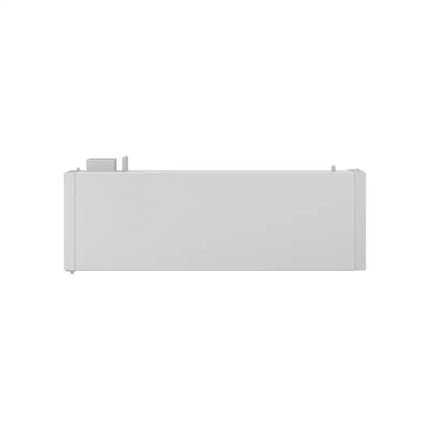

The Fronius Reserva Module is a high-voltage battery module (LFP) for the DC-coupled Reserva storage family. With two to five modules and a BMS base module, towers of 6.3 to 15.8 kWh are created; it is matched to Fronius hybrid inverters. The information refers to the individual module according to the Fronius data sheet.
| Designation | Value |
|---|---|
| Battery type | Lithium iron phosphate (LFP) |
| Usable capacity | 3.15 kWh per module |
| Rated voltage | 102.4 V per module |
| Max. output current | 32 A |
| Max. charging/discharging power | 2.24 kW |
| Dimensions (H × W × D) | 250 × 772 × 176 mm |
| Weight | 33.5 kg |
| Protection rating | IP65 |
| Ambient temperature | -20 to +55 °C |
| Interface | RS485 |
| Warranty | 10 years according to data sheet |
The module is intended for operators who use a Fronius hybrid inverter (for example GEN24 Plus) and want to build up or expand their storage system in a modular way. A BMS base module is also required for operation; the total voltage of a tower depends on the number of modules (for example 204.8 V with 2 modules).
Installation and grid connection should be carried out by a qualified electrician; registration obligations depend on the requirements of your grid operator.
We are happy to give you personal advice on selection and use: by phone on +49 931 760 260 40 or by e-mail at kontakt@energie24.shop. Pickup at our Veitshöchheim warehouse is possible by arrangement.
Free shipping from €39 within Germany.
You will find the expected delivery time right next to the product price. Freight items are delivered by appointment.
You will find shipping costs and delivery areas in our shipping policy.
The statutory right of withdrawal applies. You will find details in our withdrawal policy.
Collection in Veitshöchheim by arrangement.
Fronius International GmbH
Froniusstraße 1
4643 Pettenbach
Österreich
Telefon: +43 (0) 7242 241-0
E-Mail: office@fronius.com
Please observe the safety and installation instructions in the manufacturer's operating manual.
Your statutory legal guarantee rights apply to all goods. The complete official EU notice opens in a window.
Not sure whether this product suits your system? We will be happy to advise you personally.
Collection in Veitshöchheim by arrangement.
The delivery time is shown on each product page; for items in stock it is usually 7 to 14 working days. Processing usually takes 24 hours, in rare cases 48 hours.
Items marked “On order” are ordered from the manufacturer only after your purchase, so delivery may be delayed. Freight items are delivered by appointment and may take longer.
Please note that no deliveries are made on Saturdays, Sundays and public holidays.
If you order several items with different delivery times, we ship them in one consignment unless we have agreed otherwise with you. In that case the delivery time is determined by the item with the longest delivery time.
You can find shipping costs and delivery areas in our shipping policy.
If you prefer to collect your order, please contact us at +49 (0) 931 760 260 40 to arrange a pickup appointment.
Our pickup warehouse is located at Raiffeisenstr. 8, 97209 Veitshöchheim, Germany.
As a consumer, you have a statutory right of withdrawal. Details can be found in our right of withdrawal information.
We are constantly working to package our products perfectly so that they arrive undamaged. Should you nevertheless find any damage, simply send us an email at kontakt@energie24.shop and we will arrange a quick replacement.
