Welcome to our Inverter category – your source for efficient energy conversion in your home. Discover our selection of home solar inverters and PV inverters perfect for your home. Our products guarantee maximum efficiency and are ideal for self-consumption of solar power. Regardless of whether you choose grid-connected or hybrid inverters, we offer high-quality solutions for your photovoltaic system. #EnergyFuture 🌞🔌🌱🏡

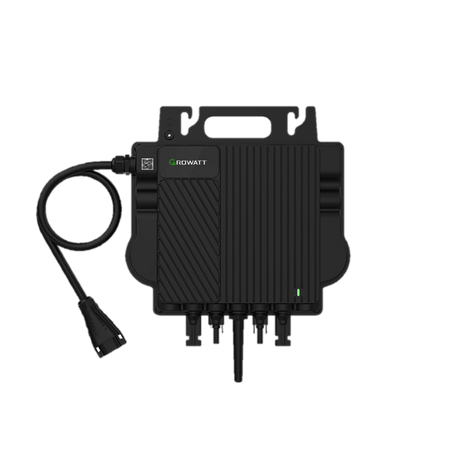

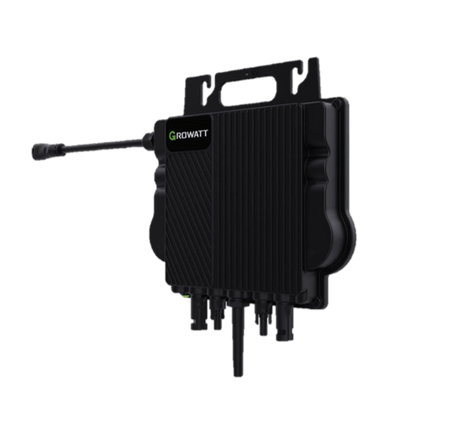

The Growatt NEO 800M-X microinverter is characterized by modern technology and outstanding efficiency. It is equipped with two independent MPP trackers that allow flexible adaptation to different solar module configurations, ideal for use in balcony power plants. The inverter supports a maximum input voltage of 60 V and a starting voltage of 16 V, achieves a maximum AC apparent power of 800 VA and offers an efficiency of up to 97.3%.
Integrated protective mechanisms such as DC reverse polarity protection, AC surge arresters and ground fault monitoring ensure safety. Thanks to its IP67 protection class, the inverter is robust against environmental influences. The integrated WiFi communication enables easy monitoring and control.
With dimensions of 260 x 220 x 43 mm and a weight of 3.1 kg, the NEO 800M-X is easy to install and handle. It works reliably in a temperature range of -40°C to +65°C, with natural convection for cooling. Growatt offers a 10-year warranty on the device, which underlines its durability and reliability.
Technical data:
Maximum input voltage: 60 V
Starting voltage: 16 V
Maximum AC apparent power: 800 VA
Efficiency: Up to 97.3%
Protection class: IP67
Dimensions: 260 x 220 x 43mm
Weight: 3.1 kg
Operating temperature range: -40°C to +65°C
Cooling: Natural convection
Warranty: 10 years
Manufacturer: Growatt Manufacturer No.: A9891776 EAN/GTIN: 4255704414004
Hoymiles Micro Inverter HMS-800W-2T (built-in WIFI)
Hoymiles HMS series microinverters are specially designed for mini PV systems, such as balcony systems, and feature an integrated Industrial+ class Wi-Fi module.
With the user-friendly HMS Plug and Play cable, installation is effortless.
Users can plug the microinverter directly into a power outlet – no complex wiring is required.
The HMS series microinverters simplify system monitoring by enabling seamless access to real-time production data by connecting smartphones directly to the microinverter.
Remote monitoring is also possible via the S-Miles Cloud by creating PV systems.
Main features of the Growatt SPF 6000 ES Plus:
IP20 rated for indoor use
Up to 6000W output power
Integrated MPPT charge controller
Off-grid solar inverter with WiFi
Supports parallel operation of up to 6 units
Multiple communication options: WiFi/GPRS
2 independent MPP trackers
Maximum input current per MPPT is 16A
Advanced technology of the Growatt SPF 6000 ES Plus
The Growatt SPF 6000 ES Plus is a state-of-the-art off-grid storage inverter designed for efficient energy management in residential and commercial applications. With its robust, IP20-rated housing, this inverter is designed for indoor use and ensures long-lasting performance and reliability.
Improved performance
With a powerful output of 6000W and an integrated MPPT charge controller, the SPF 6000 ES Plus maximizes the energy yield of your solar panels. It has 2 independent MPP trackers with a maximum input current of 16A per MPPT and one string per tracker, ensuring optimal performance. The inverter supports parallel operation of up to 6 units and offers scalability and flexibility to meet different energy needs.
Easy installation and connectivity
The Growatt SPF 6000 ES Plus is designed for easy installation and integration into existing energy systems. It offers multiple communication options, including WiFi and GPRS, for real-time monitoring and control via the Growatt Shine app. This user-friendly interface allows convenient management of your solar system, ensuring efficient energy use and increased savings.
Reliability and versatility
This off-grid inverter supports a wide range of battery types, including lead-acid and lithium-ion, offering flexibility in energy storage solutions. Its ability to operate in off-grid mode with battery backup ensures uninterrupted power supply, making it an ideal choice for areas with unstable grid connections or remote locations.
The Growatt SPF 3000TL HVM-24 is an off-grid inverter. It is suitable for a maximum circuit voltage of 102VDC. The inverter can be used with batteries, but can also work without them. The integrated solar charger optimizes the charging and discharging of the battery. Priorities can be set, for example, charging from the grid can be preferred over charging from the PV system. Monitoring is possible if a separate Wi-Fi or GPRS dongle is added.
The solar charger helps to maximize the longevity of the battery. This is partly because the solar charger continuously regulates the charge to and from the battery. This protects the battery from overcharging or total discharge.
A separate dongle allows you to connect the inverter to a mobile phone or a desktop computer, for example. This allows you to query the status of the entire PV system. The dongle is available in a Wi-Fi and GPRS version.
Growatt SPF 5000 ES Off-Grid Inverter
The Growatt SPF 5000 ES is an inverter that can operate both with and without a battery. The maximum input voltage is 450VDC. The integration of an MPPT charge controller optimizes the charging and discharging of the battery to extend its lifespan. Priority can be given to charging from the grid or the connected PV system. The system can also be remotely monitored via a WiFi or GPRS dongle. Parallel scaling is supported.
Charge controller
The MPPT charge controller lowers the voltage of the modules to the required level to charge the battery. The current is increased in the same proportion as the voltage is lowered. This happens continuously during the day to optimize the use of energy. This depends on the power of the sun, the angle and temperature, as well as the condition of the modules. The charge controller also ensures that the battery is neither overcharged nor completely discharged.
Monitoring the Growatt SPF 5000 ES off-grid inverter
A separate dongle allows remote access to the inverter. There is a WiFi and a GPRS version. Data can be checked at any time and priority can be given to either supply from the grid or from the PV system.
Capacity expansion The capacity of the system can be expanded to up to 30 kW by combining a total of six of these units in parallel operation.
APsystems is expanding its 3rd generation dual microinverter series with the DS3D. With an unprecedented output power of 1800 W, the DS3D can be connected to 4 high-performance modules (2 times 2 in series). With 2 independent MPPTs and an encrypted ZigBee signal, the DS3D benefits from a completely new architecture.
Doubling the performance of the most powerful dual microinverter series
The DS3D series achieves unprecedented performance and is compatible with other DS3 microinverters and accessories. It features 2 input channels, each with independent MPPT, and encrypted wireless Zigbee communication.
With its unparalleled performance, 97% efficiency and high reliability, APsystems' DS3D microinverter is a game changer for multi-family and commercial solar deployments.
A micro inverter for connecting four modules
Maximum output power of 1800 W
Two input channels with independent MPPT
Designed for the highest possible high-performance modules (maximum input current 20 A)
Maximum reliability, IP67
Encrypted Zigbee communication
Integrated safety protection relay
The MPPT RS SmartSolar from Victron Energy (MPN SCC145110410) is a 48V solar charge controller with a PV input voltage of up to 450 VDC and an output current of 100A. It is used in on-grid and off-grid solar applications where maximum battery charging power is required.
Characteristics
With ultra-fast Maximum Power Point Tracking (MPPT)
Multiple independent MPPT tracking inputs
Isolated PV connectors for additional safety
Wide MPPT voltage range
Light, efficient and quiet
Integrated display and Bluetooth communication
PV insulation resistance monitoring for safety at higher voltages
VE.Can and VE.Direct connection
I/O connections
Configure and monitor with VictronConnect app or VRM portal
The integrated BluetoothSmart connection allows for quick monitoring or configuration of settings via app. The integrated 30-day history shows the individual performance of each MPPT tracker. The app allows the display of e.g. battery voltage and current, PV voltage and current, historical data and trends. The VictronConnect app is available for Android, iOS, Windows and macOS X. When the solar controller is connected to a GX device and the Internet, the Victron Remote Management Portal (VRM) provides access to the full power of your SmartSolar RS charge controllers .
Additional units connected in series
The SmartSolar RS charge controller is equipped with VE.Can bus ports. This allows communication with additional SmartSolar RS & VE.Can MPPT units. The additional units are simply "daisy chained" together with an RJ45 cable. When connected together, all individual charge controllers synchronize their charging levels. You can also send your data to a GX device (such as the CerboGX) for monitoring via the same cable.
Technical data
Battery voltage: 48V
Nominal charging current: 100A
Max. charging power: 5.8kW at 57.6V
Charging algorithm: multi-stage adaptive (customizable)
Max. DC PV voltage: 450V
MPPT operating voltage range: 80-450V
Number of trackers: 2
Max. PV operating input current: 18A per tracker
Protection class: IP21
Dimensions: 440 x 313 x 126mm
Weight: 7.9 kg
Scope of delivery:
1x Victron SmartSolar MPPT RS 450/100 48V charge controller
Product specifications:
Recommended PV input power: 9000W
DC starting voltage: 100V
Maximum input current per MPPT: 13A / 13A
Rated power: 6000W
Protection class: IP65
Standard manufacturer warranty: 5 years
Inverter / Inverter Sofar Solar HYD 6000-EP
Single phase
Protection class IP 65
A range of optional operating modes
Built-in deep discharge function
Fanless design with heat dissipation function
Compatible with grid-tied and off-grid systems
EPS function, switch-on time less than 10 milliseconds
Flexible configuration of lead-acid and lithium batteries
The Multiplus 24/3000/70-50 from Victron (MPN PMP243021011) is a device combination of a 24V 2400W sine wave inverter and battery charger. The permanently integrated battery charger delivers an impressive 70A, which means that even large batteries can be fully charged quickly when shore/mains power is available. The 24V sine wave voltage converter built into the Multiplus converts your power from the battery into 230V alternating current. Thanks to the real sine wave, the power quality is also perfect for sensitive electronic devices. In addition to the two integrated device types, a lightning-fast 50A transfer switch is also installed, which can also be used to implement numerous grid-connected solutions. In addition to the VE.Bus port, a COM port is also available for system integration, which enables virtually limitless networking of the Multiplus. Comprehensive and flexible As it has an inverter and charger as well as a lightning-fast 50A transfer switch, it is an ideal inverter for mobile homes, boats or yachts and for grid-connected uninterruptible power supplies in the event of power fluctuations or power outages. It can also be used in grid-connected self-consumption systems that only draw power from the supplier when the battery power is no longer sufficient or as a UPS solution in which the Multiplus steps in when the power from the grid operator suddenly fails, thus ensuring an uninterruptible power supply. Key features of the Multiplus C 24/3000/70-50
2400W continuous power and 6000W peak power, for 24V battery voltage
Device combination of inverter with transfer switch and 70A battery charger
delivers pure 230V sine wave voltage and a clean 50Hz frequency
VE.Bus communication port provides extensive possibilities for networking, system integration, configuration and control of Victron Multiplus devices.
supports three-phase operation (3 identical units of the same model required)
Multiplus devices can be connected in parallel, up to 6 devices can be connected in parallel and the system performance can thus be significantly increased if necessary
2 AC outputs from Multiplus 3000 and larger. The second output can be used to connect devices that should only run when mains power is available
From the Multiplus 3000 onwards, a COM port is available in addition to the VE.Bus port, meaning that there are virtually no limits to system integration
PowerControl function enables working with limited generator power as well as limited shore or mains power
PowerAssist function enables “performance increase” of generators and shore connection support when required
Can be used as a UPS solution for uninterruptible power supply, thanks to the integrated transfer switch with 16A or 50A
Can be used for grid-connected self-consumption systems that only draw power from the grid operator when the battery capacity is no longer sufficient or other programmable events have occurred
compatible with numerous Victron control and display panels
Three-phase operation possible with identical MultiPlus inverters
Massive performance expansion possible Apart from the parallel connection, three units of the same model can also be configured for a three-phase output. But that's not all: up to six sets of three units can be connected in parallel to achieve a huge 75 kW / 90 kVA inverter and over 2,000 A charging capacity (calculated with the 5000 version) PowerControl – Working with limited generator power, limited shore or mains power The MultiPlus is a very powerful battery charger. It therefore takes a lot of power from the generator or shore power supply (almost 10A per 5kVA Multi at 230 VAC). The maximum mains or generator current to be drawn can be set using the Multi Control remote control panel. The MultiPlus then takes other connected AC consumers into account and only uses the power that is "left over" for charging. This prevents the generator or shore power connection from being overloaded. PowerAssist – “performance enhancement” of generators and shore connection support This function gives the PowerControl principle a new dimension. It enables the MultiPlus to support alternative sources that are too weak. Load peaks often only occur for a limited period of time. In such a case, the MultiPlus ensures that insufficient shore power or generator power is immediately compensated for by energy from the battery. BackUp system: alternating current even in the event of a power failure The Multiplus can be used with both off-grid and grid-connected PV systems as well as other alternative energy systems. Software is available to detect a grid failure. Simple system configuration If settings need to be changed on a single device, this can be done within a few minutes using a DIP switch setting procedure. Parallel and three-phase systems can be configured using the VE.Bus Quick Configure and VE.Bus System Configurator software. monitoring options and on-site control Several options are available: Battery Monitor, Multi Control Panel, Ve.Net Blue Power Panel, Color Control Panel, Smartphone or Tablet (Bluetooth Smart), Laptop or Computer (USB or RS232). remote monitoring and control Victron Ethernet Remote, Victron Global Remote and the Color Control Panel enable remote maintenance and monitoring of the MultiPlus. In addition, system data can be stored and viewed free of charge on the VRM (Victron Remote Management) website. remote configuration If systems with a Color Control Panel are connected to the Ethernet, they can be accessed and settings can be changed remotely. Scope of delivery: 1x Victron PMP243021011 Multiplus 24/3000/70-50 device combination consisting of 24V 2400W sine wave converter + 24V 70A battery charger + 50A transfer switch 1x user manual

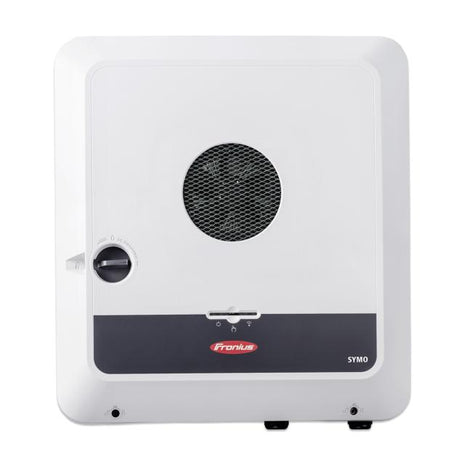

The Fronius Symo GEN24 SC Plus impresses with a variety of integrated features that will make the hearts of private system owners beat faster. Communication via WLAN and Ethernet as well as the simple and quick integration of third-party components offer a high level of flexibility with other software and hardware products. The basic emergency power supply PV Point, which is integrated as standard, guarantees security of supply and the greatest possible independence.
In the SC variant, Fronius has increased the possible DC input currents on the inverter. This means that high-current modules can also be connected without any problems.
Thanks to Multi Flow Technology, longer emergency power supply and higher self-consumption are possible.
Open interfaces allow easy integration of third-party components. Fronius optionally offers a full backup emergency power function for operating heat pumps.
The Fronius Symo GEN24 SC Plus impresses with a variety of integrated features that will make the hearts of private system owners beat faster. Communication via WLAN and Ethernet as well as the simple and quick integration of third-party components offer a high level of flexibility with other software and hardware products. The basic emergency power supply PV Point, which is integrated as standard, guarantees security of supply and the greatest possible independence.
In the SC variant, Fronius has increased the possible DC input currents on the inverter. This means that high-current modules can also be connected without any problems.
Thanks to Multi Flow Technology, longer emergency power supply and higher self-consumption are possible.
Open interfaces allow easy integration of third-party components. Fronius optionally offers a full backup emergency power function for operating heat pumps.
The SolarEdge wireless Home Load Controller is used to optimize energy consumption by regulating the operation of connected devices. The device monitors and manages all permanently connected devices in the home to increase backup time.
The Home Load Controller can control both small and large appliances. Solar power consumption is optimized, which reduces dependence on the power grid and can save money. The SolarEdge load controller is seamlessly integrated into the SolarEdge Home network and has a wide AC and DC voltage range.
Specifications SolarEdge Home Load Controller SE-SEM-DCS-R08-00:
Suitable for the SolarEdge Home network
Configuration via SetApp
Protection class IP30
Dimensions: 100 x 50 x 35 mm
Hoymiles Micro Inverter HMS 1800-4T
With an output power of up to 2,000 VA, the new Hoymiles HMS-2000 microinverter is at the forefront of 4-in-1 microinverters. Each microinverter can connect up to four PV modules with independent MPPT control and monitoring, enabling higher energy efficiency and easier use.
The new wireless Sub-1G solution enables stable communication for installations in any environment.
Features:
Up to four modules can be connected to each microinverter - quick installation and lower costs
Safe in rooftop solar stations equipped with an isolated transformer to withstand sudden outages
The wireless Sub-1 G solution enables stable communication in commercial and industrial facilities
High performance micro inverters with output power up to 2000 VA
Independent MPPT and monitoring functions enable higher efficiency and easier use
The reactive power control system complies with EN50549-1 :2019, VDE-AR-N 4105:2018, UL 1741, ABNT NBR 16150, etc.

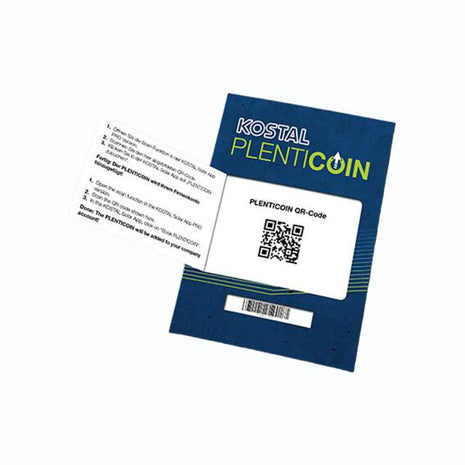

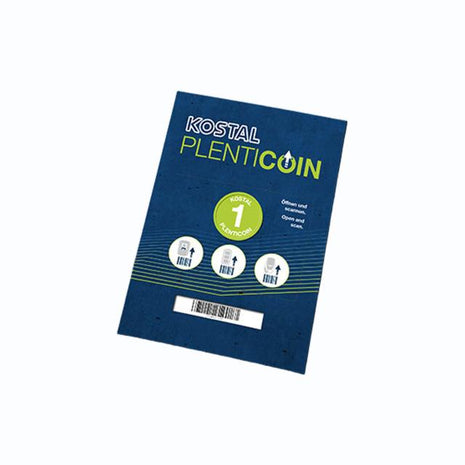

The QR code on the PLENTICOIN card is used to retrieve activation codes for product extensions of KOSTAL inverters and wall boxes and can be used in the KOSTAL Solar webshop. This is a Single-purpose voucher.
The QR code on the PLENTICOIN card is used to retrieve activation codes for product extensions of KOSTAL inverters and wall boxes and can be used in the KOSTAL Solar webshop. This is a Single-purpose voucher.

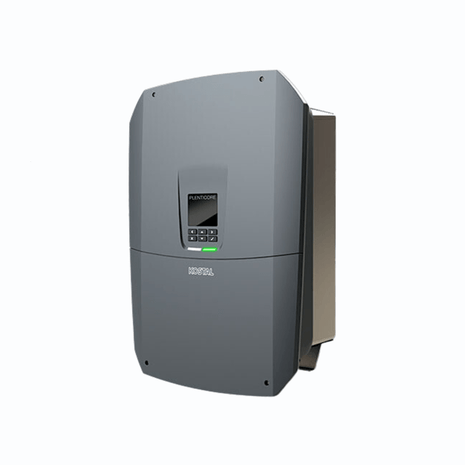

The KOSTAL PLENTICORE G3 is a transformerless inverter with 3 MPP trackers. Can be used universally as a solar, hybrid or battery inverter with basic outputs AC 4.0 (S) / 8.5 (M) / 15.0 kW (L).
The benefits can optionally be extended with 1 - 2x Plenticoin. The battery input can be subsequently implemented with 3x Plenticoon via the 3rd MPP tracker and thus enables the connection of a compatible HV storage unit.
Prepared for additional battery charging via AC energy sources (e.g. for KOSTAL Doppelpower).
Emergency power operation can be implemented with the manual switch KOSTAL BackUp Switch G3 (08-000747) or via the enwitec mains switching box KOSTAL 3P 35kW (08-000772/773).
4 digital outputs for load control or event reporting, SG-Ready compatible Free monitoring via KOSTAL Solar Portal and Solar App Direct integration of an overvoltage protection module is possible with the KOSTAL DC overvoltage protection module G3 (08-000746).
The KOSTAL PLENTICORE G3 is a transformerless inverter with 3 MPP trackers. Can be used universally as a solar, hybrid or battery inverter with basic outputs AC 4.0 (S) / 8.5 (M) / 15.0 kW (L).
The benefits can optionally be extended with 1 - 2x Plenticoin. The battery input can be subsequently implemented with 3x Plenticoon via the 3rd MPP tracker and thus enables the connection of a compatible HV storage unit.
Prepared for additional battery charging via AC energy sources (e.g. for KOSTAL Doppelpower).
Emergency power operation can be implemented with the manual switch KOSTAL BackUp Switch G3 (08-000747) or via the enwitec mains switching box KOSTAL 3P 35kW (08-000772/773).
4 digital outputs for load control or event reporting, SG-Ready compatible Free monitoring via KOSTAL Solar Portal and Solar App Direct integration of an overvoltage protection module is possible with the KOSTAL DC overvoltage protection module G3 (08-000746).
The KOSTAL PLENTICORE G3 is a transformerless inverter with 3 MPP trackers. Can be used universally as a solar, hybrid or battery inverter with basic outputs AC 4.0 (S) / 8.5 (M) / 15.0 kW (L).
The benefits can optionally be extended with 1 - 2x Plenticoin. The battery input can be subsequently implemented with 3x Plenticoon via the 3rd MPP tracker and thus enables the connection of a compatible HV storage unit.
Prepared for additional battery charging via AC energy sources (e.g. for KOSTAL Doppelpower).
Emergency power operation can be implemented with the manual switch KOSTAL BackUp Switch G3 (08-000747) or via the enwitec mains switching box KOSTAL 3P 35kW (08-000772/773).
4 digital outputs for load control or event reporting, SG-Ready compatible Free monitoring via KOSTAL Solar Portal and Solar App Direct integration of an overvoltage protection module is possible with the KOSTAL DC overvoltage protection module G3 (08-000746).
The three-phase 100 kW inverter from KOSTAL has 16 DC inputs and 8 MPP trackers and an input current of 20 A per MPPT. DC installation is simple, cost-effective and possible without string collection boxes.
The PIKO CI inverter offers optimal monitoring and service by monitoring the connected PV strings and is reliable in use thanks to its integrated and certified grid service functions.
We expect the necessary certificates for connection to the medium-voltage grid to be available in April 2024.
The three-phase hybrid inverter is always the right choice thanks to its wide range of possible applications - whether for generating electricity with up to 3 MPP trackers or for additional storage of self-generated energy via an optionally switchable battery input. The PLENTICORE plus can be used as a replacement device, when building a new system or in combination with an energy generation system. The second generation offers a new communication board for easy connection via Wi-Fi, SG-Ready interfaces for your heat pump and an additional RJ45 connection for other components. Please note: A PLENTICOIN is required to use the battery function.
The three-phase hybrid inverter is always the right choice thanks to its wide range of possible applications - whether for generating electricity with up to 3 MPP trackers or for additional storage of self-generated energy via an optionally switchable battery input.
The PLENTICORE plus can be used as a replacement device, when building a new system or in combination with an energy generation system. The second generation offers a new communication board for easy connection via Wi-Fi, SG-Ready interfaces for your heat pump and an additional RJ45 connection for other components.
Please note: A PLENTICOIN is required to use the battery function.
The three-phase hybrid inverter is always the right choice thanks to its wide range of possible applications - whether for generating electricity with up to 3 MPP trackers or for additional storage of self-generated energy via an optionally switchable battery input.
The PLENTICORE plus can be used as a replacement device, when building a new system or in combination with an energy generation system. The second generation offers a new communication board for easy connection via Wi-Fi, SG-Ready interfaces for your heat pump and an additional RJ45 connection for other components.
Please note: A PLENTICOIN is required to use the battery function.
The three-phase hybrid inverter is always the right choice thanks to its wide range of possible applications - whether for generating electricity with up to 3 MPP trackers or for additional storage of self-generated energy via an optionally switchable battery input. The PLENTICORE plus can be used as a replacement device, when building a new system or in combination with an energy generation system. The second generation offers a new communication board for easy connection via Wi-Fi, SG-Ready interfaces for your heat pump and an additional RJ45 connection for other components.
Please note: A PLENTICOIN is required to use the battery function.
