DTU-WLite S module Used for wireless WiFi communication at sub1.0GHz with Hoymiles microinverters to monitor the system and operation of the photovoltaic modules. THE MODULE ONLY WORKS WITH HMS AND HMT SERIES MICRO INVERTERS! Main advantages: Monitoring and data collection at the module level Ready to use, literally plug and play Incredibly user-friendly for visual representation Local installation wizard for a high quality installation Optimized communication with microinverter and server, new alarm system Specification: Communication with micro inverter: Signal: below 1.0GHz Maximum distance (open space): 400m Limit of data monitoring panels: 99   Note:  A 5V USB-A power adapter is required for operation.

Read more less

The HMS-2000-4T from Hoymiles is the perfect microinverter for your balcony power plant. The compact, lightweight (only 5.56kg) is suitable for solar power production with up to four solar panels with an output of 400W to 670W+ each. Just like all other Hoymiles microinverters, it is suitable for long operating hours and wide PV module application because its starting voltage is very low (only 22V) and the DC input operating voltage range (16-60V) is extremely wide. Compared to the previous model from the HM series The HMS-2000-4T offers more safety for rooftop solar power plants through quick shutdown and isolated transformer. The new Sub-1G wireless solution enables more stable communication with the Hoymiles gateway DTU. Properties Minimizing the effects of e.g. shading, dust or aging MPPT High-quality energy production with high MPPT-Accuracy Optimal system reliability Peak efficiency of 96.5% 12 year product guarantee High security thanks to integrated protective functions Easy installation Long lifespan Complies with EN50549-1:2019, VDE-AR-N 4105: 2018, VFR2019, IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4, IEC/EN 61000-3-2/-3 Optionally possible: Monitoring via S-Miles App or S-Miles Cloud A DTU Lite-S is required for system monitoring In order to be able to change settings in addition to monitoring, a DTU is used instead of the DTU-Lite-S Pro-S required Optimal reliability Microinverter systems are inherently more reliable than traditional inverters. The decentralized structure of a microinverter system ensures that the entire PV system does not fail in the event of a fault. Hoymiles microinverters are designed to operate at full power in ambient temperatures up to +65°C (150°F). The housing of the microinverter is designed for outdoor installation and complies with protection class IP67. Simple construction PV systems with Hoymiles microinverters are very easy to plan. You don't need to install cumbersome traditional inverters. Each microinverter can be quickly mounted on the PV mounting frame or directly under the PV module. The PV module is connected to the microinverter directly on site, thereby eliminating the risk of people being exposed to dangerously high DC voltage. Technical data Recommended module power: up to 400W - 670+W (per module) MPPT voltage range: 16-60V Switch-on voltage: 22V Maximum input voltage: 65V Maximum input current: 4*16A Maximum input short circuit current: 4*25A Rated output power: 2000VA Rated output current: 8.7A Rated output voltage/range: 230V / 180-275V CEC peak efficiency: 96.50% Ambient temperature range: -40°C - +65°C Dimensions (WxHxD): 331 x 218 x 40.6 mm Weight: 5.56kg Housing rating: IP67 Scope of delivery: 1x Hoymiles HMS-2000-4T microinverter

Read more less

Hoymiles micro inverter HMS 400-1T With an output power of up to 40A, the new Hoymiles HMS-400 microinverter is at the forefront of 1-in-1 microinverters. A PV module with independent MPPT and monitoring function can be connected to each microinverter, enabling higher energy efficiency and easier use. The new Sub-1G wireless solution enables stable communication for installations in any environment. Features: -The Sub-1 G wireless solution enables stable communication in commercial and industrial installations -Excellent flexibility, quick installation and good adaptability to different module arrangements Powerful 1-in-1 micro inverter with output power up to 500VA -The reactive power control system meets the requirements of EN50549-1:2019, VDE-AR-N 4105:2018, UL1741, etc. -Safe in rooftop solar stations equipped with an isolated transformer to withstand sudden failures.

Read more less

Hoymiles DTUPRO-S monitoring module It is used for wireless communication on the SUB-1G frequency with Hoymiles microinverters. The DTUPRO-S MODULE ONLY works with 3-PHASE HMT and 1-PHASE HMS microinverters. Key benefits: Monitoring and data collection at the module level Stronger communication with the microinverter and the monitoring server More accurate monitoring of photovoltaic energy production Supports limiting energy export and applying zero export The SUB-1G wireless solution enables stable communication with HMS and HMT microwave inverters More communication options with Ethernet, Wi-Fi or 4G. Specification: Communication with the micro inverter: Signal: SUB-1G Maximum distance (free space): 400m Data monitoring panel limit: 99 Data transfer to the meter: Signal: RS 485 Maximum distance: 400m

Read more less

HOYMILES- HMT2000-4T micro inverter   The new generation of Hoymiles HMT-2000 series microinverters is designed for high performance photovoltaic modules with a maximum output power of up to 2000VA and a maximum DC input current of up to 16A. The innovative 4-input design allows for faster installation and lower costs, making the HMT-2000 series a very cost-effective choice. The new Sub-1G wireless solution enables more stable communication with the Hoymiles DTU gateway. The intelligent S-Miles cloud platform enables module-level monitoring as well as remote operation and maintenance. SPECIFICATIONS: Dimensions: 326 × 222 × 40.6mm Rated output power: 2000VA Usual module power: 400W to 670W+ Maximum input current: 4 × 16A Max. input voltage: 65V Number of connected modules: 4 MPPT voltage range: 16V-60V Number of MPPT: 2

Read more less

HOYMILES DTSU 666 The DTSU counter has an LCD display, performs bidirectional measurement and is installed on a DIN rail. Technical data: Working range: -40°C - +75°C Protection class: IP54 Dimensions: 98 x 65 x 72mm Weight: 0.4kg RS485 communication LCD display CT transformers

Read more less

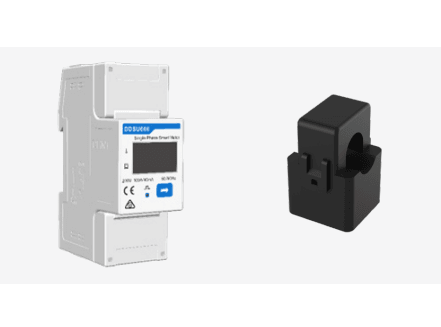

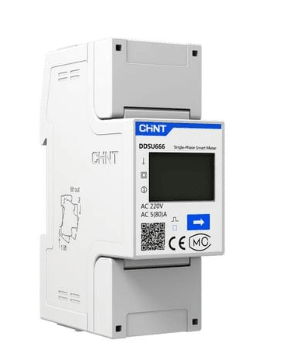

HOYMILES counter DDSU 666 The DTSU counter has an LCD display, performs bidirectional measurement and is installed on a DIN rail. Technical data: Working range: -40°C - +75°C Protection class: IP54 Dimensions: 98 x 65 x 36mm Weight: 0.2kg RS485 communication LCD display CT transformers

Read more less

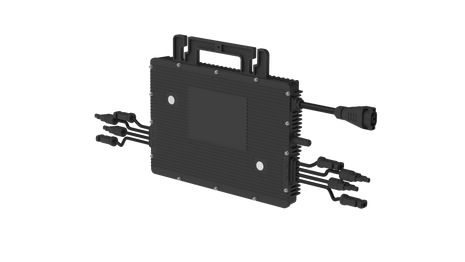

Hoymiles micro inverter HMS 1800-4T With an output power of up to 2,000 VA, the new Hoymiles HMS-1800 microinverter is at the forefront of 4-in-1 microinverters. Up to four PV modules can be connected to each microinverter with independent MPPT control and monitoring, enabling higher energy efficiency and easier use. The new Sub-1G wireless solution enables stable communication for installations in any environment. Features: Up to four modules can be connected to each microinverter - quick installation and lower costs Safe in rooftop solar stations equipped with an isolated transformer to withstand sudden failures The Sub-1G wireless solution enables stable communication in commercial and industrial facilities High performance micro inverter with output power up to 1800VA Independent MPPT and monitoring functions enable greater efficiency and easier use The reactive power control system complies with EN50549-1:2019, VDE-AR-N 4105:2018, UL 1741, ABNT NBR 16150, etc.

Read more less

The Hoymiles HiBattery HB-4020-X is a compact all-in-one solar storage system with an integrated LiFePO4 battery and inverter. As the base unit of the HiBattery 4020 X series, the system combines the direct acquisition, storage and delivery of solar power in one device. The integrated storage capacity of 4.02 kWh can be increased to 16.08 with up to three HB-4020-S expansion batteries kWh expand. Four independent MPPT inputs enable the connection of solar modules with a total PV input power of up to 4,000 W. The integrated inverter offers a grid-tied nominal power of 800 VA and a maximum grid-independent output power of 2,500 W. Long-lasting LFP cells, intelligent battery management, automatic battery heating and IP66 protection class support reliable operation. 4,02 kWh LiFePO4 storage, modular to 16.08 kWh expandable Four independent MPPT inputs for up to 4,000W PV power Integrated inverter with up to 2,500 W output power The Hoymiles HiBattery HB-4020-X combines battery storage, inverters and four MPPT trackers in a compact base unit. The system is suitable for new photovoltaic systems and can be flexibly expanded as energy requirements increase. Scope of delivery: 1x Hoymiles HiBattery HB-4020-X, 1x MS plug-and-play cable, 2x bracket

Read more less

The Hoymiles HiFlow HMS-800-2WB Pro is a single-phase 2-in-1 microinverter from HiFlow Pro Series for balcony power plants and compact photovoltaic systems. As model HMS-800-2WB Pro It can process up to two solar modules via two independent MPP trackers. This means that both modules are regulated separately, which is particularly advantageous if they are aligned differently or are temporarily shaded. The rated output power is 800 VA, the MPPT voltage range is 16 to 60 V. The integrated 2.4 GHz WiFi and Bluetooth enable monitoring and configuration via the S-Miles Home app. The weather-protected IP67 housing, fanless cooling and galvanically isolated high-frequency transformer support reliable outdoor operation. 800VA output power with two independent MPPTs Integrated WiFi and Bluetooth for the S-Miles Home app IP67 housing with quick shutdown and isolated transformer The Hoymiles HiFlow HMS-800-2WB Pro is suitable for plug-in solar systems with up to two compatible PV modules. The supplied Schuko connection cable and the integrated communication enable uncomplicated integration and system monitoring. Scope of delivery Scope of delivery: 1x Hoymiles HiFlow HMS-800-2WB Pro, 1x 5 m cable with Schuko plug,

Read more less

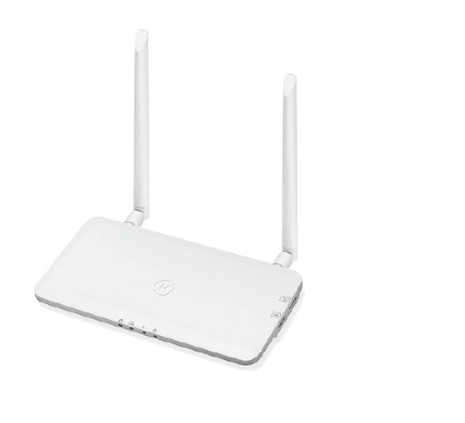

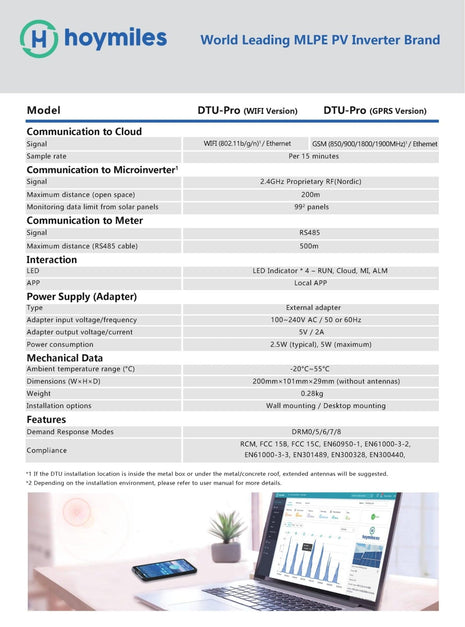

Hoymiles DTUPRO Monitoring module It is used for 2.4GHz WiFi wireless communication with Hoymiles micro inverters. The DTUPRO MODULE ONLY works with single-phase HM microwaves. The most important advantages: Monitoring and data collection at the module level Stronger communication with the microinverter and the monitoring server More accurate monitoring of photovoltaic energy production Supports limiting energy export and applying zero export. Specification: Communication with the micro inverter:Signal: 2.4GHz Maximum distance (open space): 200m Limit for data monitoring panels: 99 Data transfer to the meter: Signal: RS485 Maximum distance: 500m

Read more less

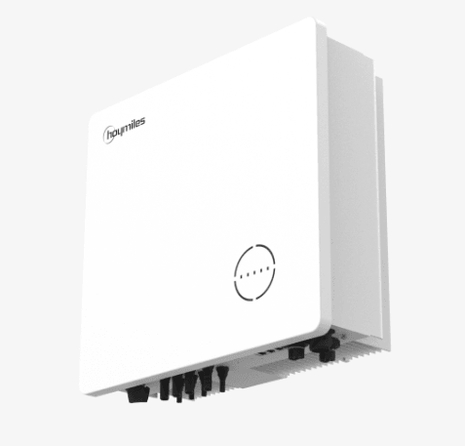

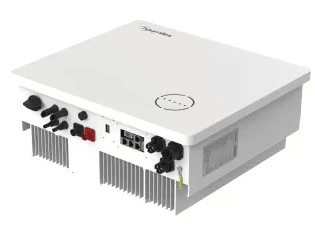

The HYT-HVseries are powerful, three-phase hybrid inverters with the highest reliability in power classes from 5 to 12 kW. The intelligent EMS function supports self-consumption mode, economy mode and emergency mode in multi-scenario applications. Monitoring management via the S-Miles Cloud allows the user to remotely diagnose and track the performance of individual systems over time and offers the highest quality of energy production. Maximum efficiency: 97.6%; Efficiency according to European standards: 97.0%  Double Maximum Power Point Tracking (MPPT), up to 14A MPPT current  DC/AC ratio of up to 150% Built-in dry contact, monitors ground fault alarm and allows load or generator control  Ultralight design for easy installation and space saving  Supports direct current (DC) and alternating current (AC) coupled systems  Remote monitoring via the S-Miles Cloud Service  EMS system with built-in self-consumption mode, economy mode and emergency mode, providing solutions for multiple scenarios in daily life

Read more less

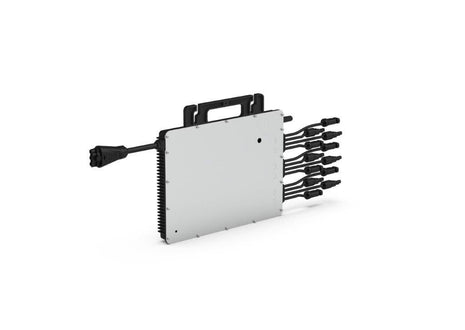

Product specification: Maximum power of the connected photovoltaic system: 3800W DC switch-on voltage: 22V Maximum input current: 6*11.5A Maximum AC power: 1800W Tightness class: IP67 Standard Manufacturer Warranty: 12 years Possibility to extend the warranty to 25 years (price: 30% of the product value)

Read more less

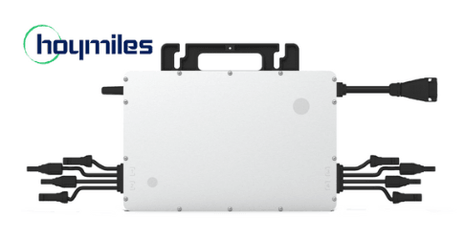

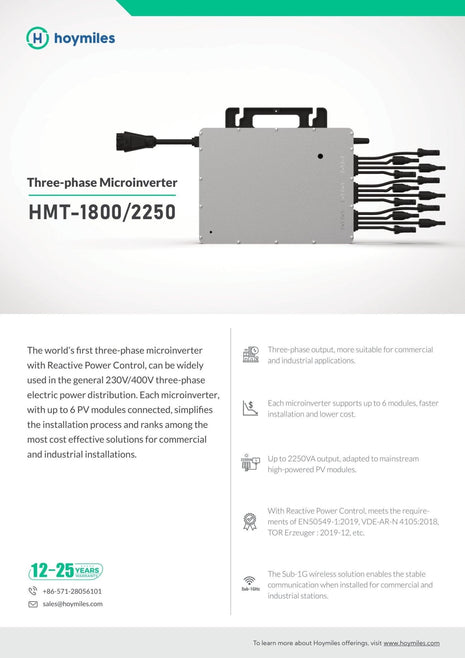

HOYMILES- HMT1800-4T micro inverter  The new generation of Hoymiles HMT-2000 series micro inverters is designed for high performance photovoltaic modules with a maximum output power of up to 2000VA and a maximum DC input current of up to 16A. The innovative 4-input design allows for faster installation and lower costs, making the HMT-2000 series a very cost-effective choice. The new Sub-1G wireless solution enables more stable communication with the Hoymiles DTU gateway. The intelligent S-Miles cloud platform enables module-level monitoring as well as remote operation and maintenance. SPECIFICATIONS: Dimensions: 326 × 222 × 40.6mm Rated output power: 1800VA Common module power: 360W to 600W+ Max. input current: 4 × 15A Max. input voltage: 65V Number of connected modules: 4 MPPT voltage range: 16V-60V Number of MPPT: 2
