Adjustable solar panel mounts for PV systems 15-30° Our weather-resistant, adjustable PV system brackets made of high-quality AL6005-T5 aluminum can be easily attached to solar modules, so that your solar system is ready for use quickly and efficiently. Screws and nuts made of SUS304 stainless steel are already included in the delivery. The adjustable brackets are ideal for flat surfaces such as garages, gardens and balconies. The angle of inclination can be easily adjusted to ensure maximum energy yield. Material thickness: 2.0 mm Bracket material: Aluminium AL6005-T5Screws & nuts material: Stainless steel SUS304 Angle: 15 - 30° Suitable for: flat surfaces and facades Scope of delivery: Bracket for a solar module 2x short bracket - black 2x long bracket (adjustable length) - Black 4x rubber pads (EPDM) 1x screw set Before installation, the surface must be checked and, if necessary, the standard screws provided must be replaced with screws approved for the installation location!

Read more less

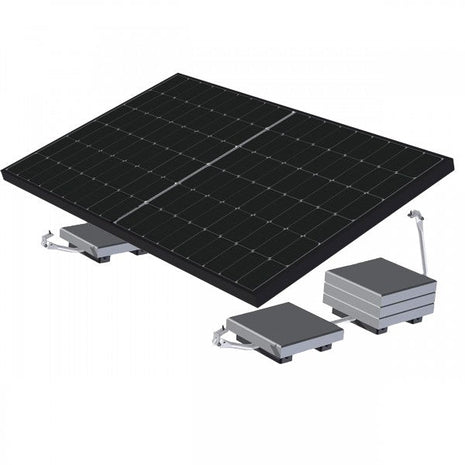

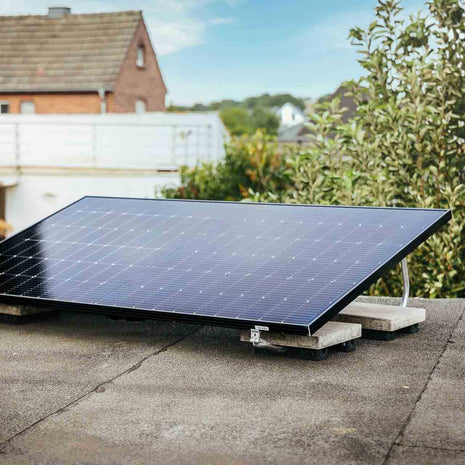

ValkBox3 mounting system for flat roof mounting up to module width 1150 mm The mounting system was developed specifically for flat roofs and consists of high-quality components. The single element allows the installation of a solar module and is very easy to install. Those who have to install their modules on a roof with many obstacles will really appreciate the ingenious design. The system is supplied as a ready-to-install kit, which leads to shorter installation times. Delivered as a ready-to-install kit Tilt angle of 17 degrees Fast assembly thanks to pre-assembly of essential components NOTE: Ballasting not included in delivery - suitable are e.g. paving slabs (30 x 30cm; 40 x 40cm) Technical data: For one module in landscape mounting up to module width 1150 mm Tilt angle of 17 degrees Developed in accordance with European standards Suitable for panel dimensions: length approx. 2280mm, width maximum 1150mm   Scope of delivery: Mounting kit for one (1) solar module 2 x aluminum supports 4 x connectors 5 x short screws 5 x screws long 9 x nuts 3 x cable holder 4 x rubber pads
