Description
Hot water preparation and building heating with solar power

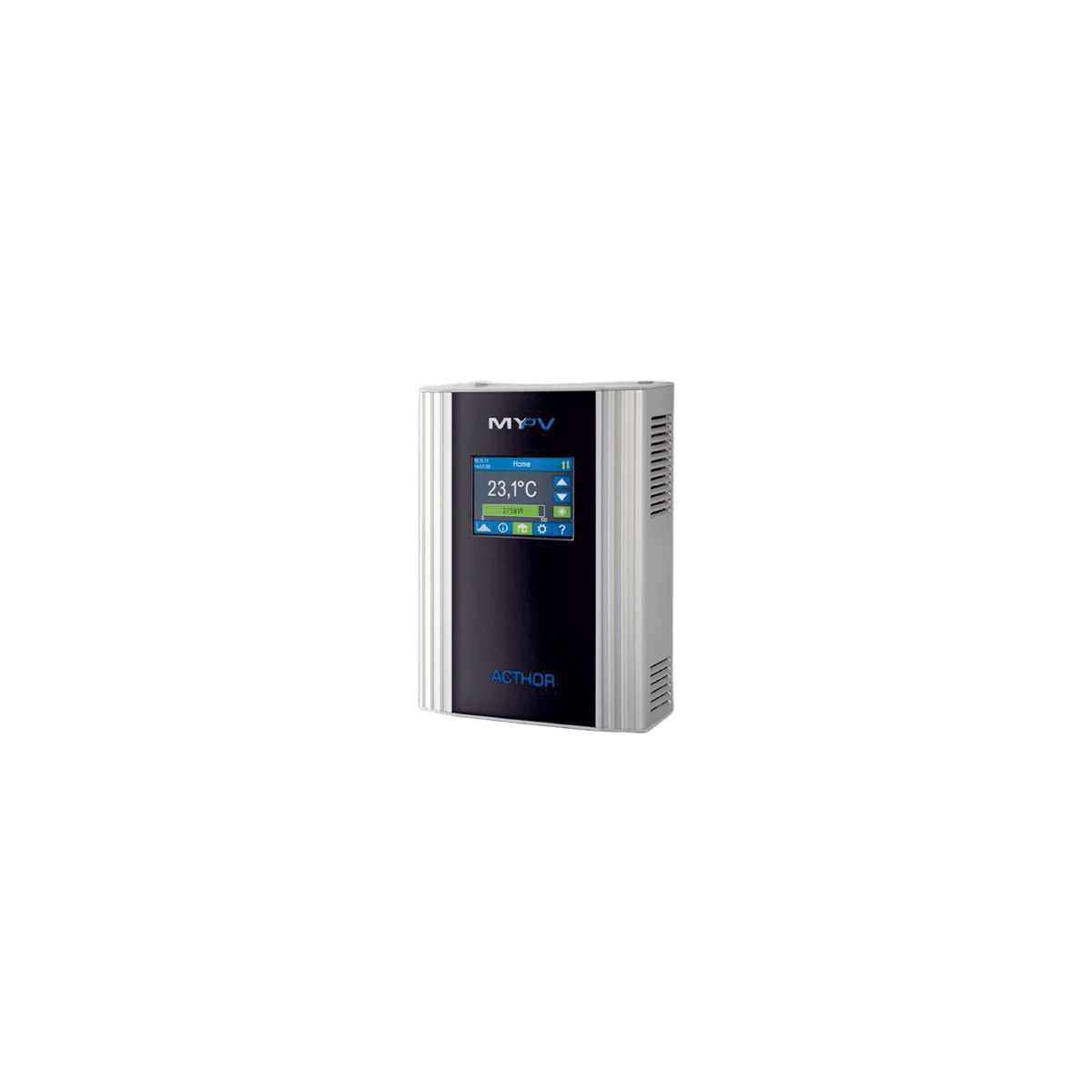

AC•THOR 9s is a 0 - 9 kW continuously controlled photovoltaic power manager for hot water, electrical heat sources and optional heating.
Simple & efficient: The AC•THOR 9s controls up to 3 electrical heat sources depending on the availability of PV energy and heat requirements. And that for both hot water and space heating. It ensures your personal living comfort fully automatically. In a residential building that has been built or renovated according to today's thermal technology standards, the AC•THOR 9s replaces conventional, water-based building technology. Any remaining energy that is missing can be obtained from the public power grid.
Of course, the AC•THOR 9s can also be integrated into conventional, water-based systems such as buffer storage. Its flexibility leaves nothing to be desired. Thanks to the built-in touch display, it can be operated at any time without additional devices and is very easy to install.
The AC•THOR 9s is particularly suitable for:
- Single and multi-family homes
- Agricultural businesses
- Commercial and industrial applications
- Hotels and tourism companies
- Local and district heating networks
Advantages
- Continuously variable up to 9 kW possible
- 3 adjustable outputs
- For 3-phase heating elements with a common neutral conductor
- Easiest loading of three zones 3 x 3 kW
- Can also be combined with a heat pump
- Two-zone space heating possible
- Reduction of the building services room
- System open for various inverters, battery systems and SmartHomes
- Up to 85% PV self-consumption/self-use even without battery storage
Plug & Play - All connections are pluggable!
- No time-consuming wiring
- No clamping points, no PG screw connections
- No complicated opening of a case
Technical data
- Mains voltage: 3 x 230 V, 50 Hz
- Outputs: 0-3000 W continuously regulated, three outputs, max. 9000W
- Mains connection: 3-phase with neutral conductor
- Consumer connections: plug contacts
- Display: color graphics, touch screen 2.83"
- Dimensions (W x H x D): 135 x 195 x 65 mm
