The Schneider Electric Acti9 iC40 - 1P+N - C40 is an advanced low-voltage installation circuit breaker specifically designed for use in residential and industrial applications. The circuit breaker, consisting of a single pole (1P) plus a switching neutral conductor (N), has a nominal current capacity of 40A. The device is also equipped with a C tripping characteristic.
This installation circuit breaker offers a breaking capacity of 4500A at 230VAC according to EN/IEC 60898-1 for household standards and is boosted to 6kA at 230VAC according to EN/IEC 60947-2 for industrial standards.
The innovative clip-on function makes the installation circuit breaker easy to install and maintain, saving time and effort. The service life is up to 10,000 electrical cycles and up to 20,000 mechanical cycles, which underlines the durability and reliability of the product.
Technical characteristics Schneider Electric Acti9 iC40 - 1P+N - C40
Technically, the iC40 supports an operating voltage (Ue) of 230VAC and an insulation voltage (Ui) of 400VAC, with a surge voltage (Uimp) of 4kV. This installation circuit breaker is suitable for network frequencies of 50Hz or 60Hz. For easy modular installation, the installation circuit breaker can be easily mounted on a DIN rail, with a width of just one 18mm module.
The Acti9 iC40 is white (RAL9003) and has compact dimensions of 18mm wide, 85mm high and 74mm deep, and weighs 120g. The device is IP20 according to IEC 60529, but can be increased to IP40 when mounted in a suitable modular housing.
The circuit breaker is designed to operate efficiently at operating temperatures between -25°C and 70°C and can be stored at temperatures from -40°C to 85°C, making it a versatile choice for a variety of installation environments.
The Schneider Electric Acti9 iC60N is designed as a low voltage installation circuit breaker and is ideal for use in both residential and industrial applications. It is a single-pole installation circuit breaker with one protected pole, equipped with a nominal current of 40A and a C tripping characteristic. The Acti9 iC60N installation circuit breaker is characterized by a breaking capacity of 6000A at 230VAC - in accordance with the domestic standard EN/IEC 60898-1 - and an increased capacity of up to 10kA at a voltage of 220-240VAC in accordance with the industrial standard EN/IEC 60947-2.
This installation circuit breaker offers optimal protection for electrical circuits, with protection against short circuits and overload currents. The device includes the innovative VisiTrip indicator, which facilitates the identification of the tripped circuit breaker by clearly marking it. Thanks to the VisiSafe technology, characterized by the green indicator, the physical separation of the contacts is confirmed, allowing safe maintenance downstream.
The design of the iC60N aims at durability and ease of use. With an electrical life of up to 10,000 cycles and a mechanical life of up to 20,000 cycles, this Schneider Electric installation circuit breaker guarantees long-lasting performance. The circuit breaker supports a nominal insulation voltage Ui of 500VAC and falls into limitation class 3 according to EN/IEC 60898-1, which significantly reduces the cost of protecting the circuit.
Schneider Electric Acti9 IC60N - 1P - C40 Features
For a flexible and modular installation, the iC60N can be easily mounted on a DIN rail. With a width of only one 18mm module, this product is compact and easy to integrate into existing systems.
The circuit breaker is white (RAL9003) in colour. The dimensions are 18mm wide, 85mm high and 78.5mm deep, and it weighs 0.215kg. The IP20 protection level can be increased to IP40 when installed in a modular enclosure with insulation class II, making this product suitable for a wide range of ambient temperatures, ranging from -35°C to 70°C in use and from -40°C to 85°C in storage.
The Schneider Electric Acti9 iCV40N modular residual current circuit breaker combines the functions of a miniature circuit breaker with residual current protection in one efficient solution. Designed as a 3P+N residual current circuit breaker, this model has three protected poles and a connected neutral conductor, with a nominal current of 20A and a C tripping characteristic.
The residual current device belongs to class A and has a sensitivity of 30mA, reacts without time delay. The breaking capacity is 6000A at 400VAC according to the standards EN/IEC 61009-2-1.
Schneider Electric Acti9 iCV40N 3-phase modular residual current circuit breaker
The Schneider Electric Acti9 iCV40N offers protection against short circuits, overload currents, electric shock and fire hazards. The VisiTrip system with two indicators speeds up the detection of a tripped circuit breaker by clearly marking it. In addition, the VisiSafe function with its green indicator ensures the physical separation of the contacts, allowing safe maintenance. This product complies with the EN/IEC 61009-2-1 standards for residual current devices.
Technical details
Electrical and mechanical life of 20,000 cycles
Nominal operating voltage (Ue) of 230VAC
Nominal insulation strength (Ui) of 440VAC
Nominal impulse voltage (Uimp) of 4kV at a network frequency of 50/60Hz.
Installation is done on a DIN rail for a modular approach. With a width of five 18 mm modules, the product is painted white (RAL9003), with dimensions of 90 mm wide, 93 mm high and 73 mm deep and a weight of 500 g.
The standard protection level is IP20, rising to IP40 in a modular housing of insulation class II. The operating and storage temperatures are between -25°C and 60°C and -40°C and 85°C respectively.

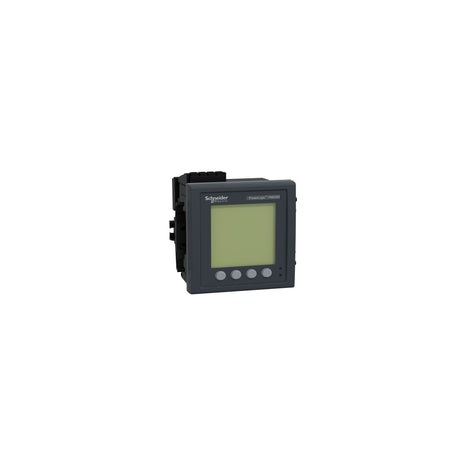

The PowerLogic PM5320 is a universal meter for front mounting (96 mm x 96 mm) with a fully graphic, backlit LCD display. The meter with accuracy class 0.5S (according to IEC 62053-22) measures energy, active and reactive power, voltage, current, frequency, power factor and enables harmonic analysis of up to 31 harmonics. It is suitable for 50 Hz or 60 Hz applications and supply voltages in the range of 100 to 415 VAC and 125 to 250 VDC. Universal measurement for three-phase transformer measurement of three- or four-wire three-phase networks via current transformers (secondary 1 A or 5 A) and direct measurement up to 690 V AC or medium voltage applications via voltage transformers. The measuring voltage range between the phases is 35 to 690 V AC at 47 to 63 Hz, the measuring range between phase and neutral conductor is 20 to 400 V AC at 47 to 63 Hz. Communication takes place via Ethernet (Modbus TCP, BACnet/IP, EtherNet/IP), in addition 2 configurable digital inputs and 2 configurable transistor outputs are available. Data is read out via dynamic QR code displays. There are 35 configurable alarms and 15min load profile recording for 2 measured variables (e.g. kWh and kVAh) for 60 days. The product dimensions are as follows: width 96 mm, depth 72 mm, height 96 mm and weight 380 g.

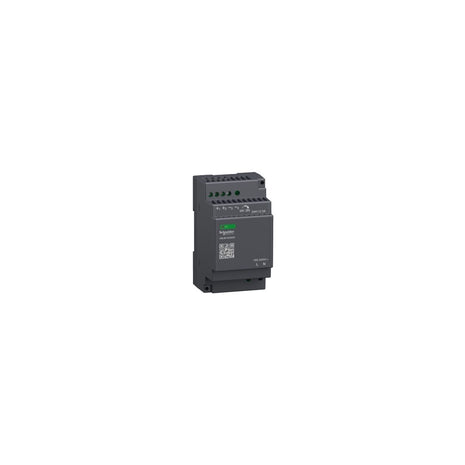

This ABLM regulated switching power supply (SMPS) supplies DC voltage. It has a rated input voltage of 100 V to 240 V AC, a rated output current of 2.5 A at 24 V DC and a power rating of 60 W. It is ideal for providing the DC voltage required by automation equipment for applications in industrial, commercial and domestic applications such as conveying, packaging, control, food and beverage, mining, oil and gas and water. It installs on an omega rail or is fixed with a screw. It is 53 mm wide, 91 mm high and 55.6 mm deep. It offers protection against overloads and short circuits with automatic restart after the overload/short circuit source is corrected. It weighs 0.221 kg. It is an industrial power supply for rail mounting. It complies with EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 and is CE certified, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of miniature circuit breakers are recommended for their protection. The degree of protection is 6 A, C curve or 10 A, B curve. On the front there is an LED indicating the presence of DC output voltage and a QR code to access the latest technical documentation. Thanks to their modular housing, they can be installed either in enclosures or industrial panels by clamping them onto an Omega rail (DIN). They supply power to your automated systems. Designed for simple machines and applications, modular power supplies are particularly appreciated for their extreme compactness.
