Description
The Schneider Electric Acti9 iCV40N modular residual current circuit breaker combines the functions of a miniature circuit breaker with residual current protection in one efficient solution. Designed as a 3P+N residual current circuit breaker, this model has three protected poles and a connected neutral conductor, with a nominal current of 20A and a C tripping characteristic.
The residual current device belongs to class A and has a sensitivity of 30mA, reacts without time delay. The breaking capacity is 6000A at 400VAC according to the standards EN/IEC 61009-2-1.

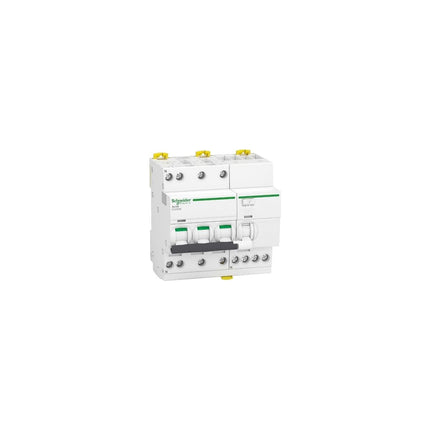

Schneider Electric Acti9 iCV40N 3-phase modular residual current circuit breaker
The Schneider Electric Acti9 iCV40N offers protection against short circuits, overload currents, electric shock and fire hazards. The VisiTrip system with two indicators speeds up the detection of a tripped circuit breaker by clearly marking it. In addition, the VisiSafe function with its green indicator ensures the physical separation of the contacts, allowing safe maintenance. This product complies with the EN/IEC 61009-2-1 standards for residual current devices.
Technical details
- Electrical and mechanical life of 20,000 cycles
- Nominal operating voltage (Ue) of 230VAC
- Nominal insulation strength (Ui) of 440VAC
- Nominal impulse voltage (Uimp) of 4kV at a network frequency of 50/60Hz.
Installation is done on a DIN rail for a modular approach. With a width of five 18 mm modules, the product is painted white (RAL9003), with dimensions of 90 mm wide, 93 mm high and 73 mm deep and a weight of 500 g.
The standard protection level is IP20, rising to IP40 in a modular housing of insulation class II. The operating and storage temperatures are between -25°C and 60°C and -40°C and 85°C respectively.
