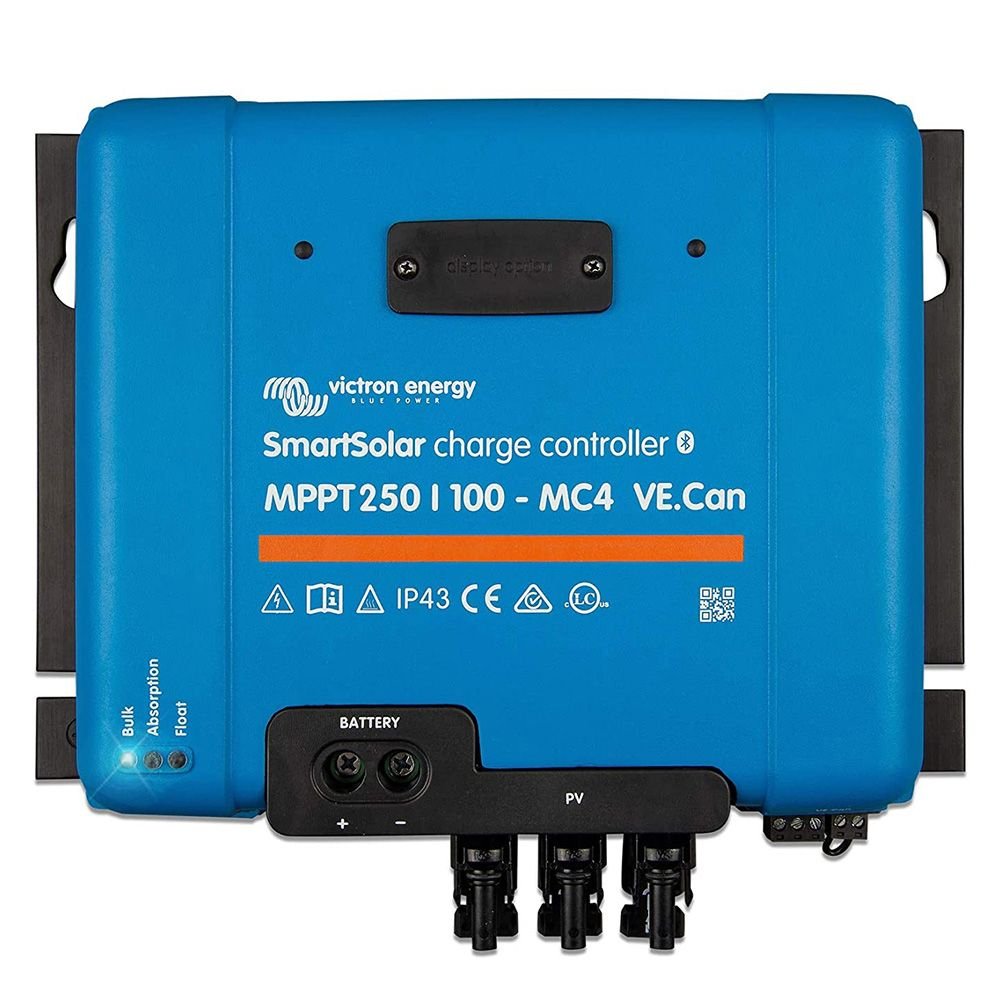

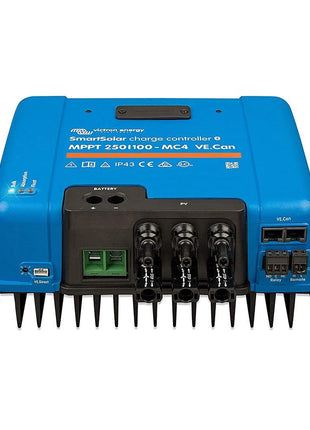

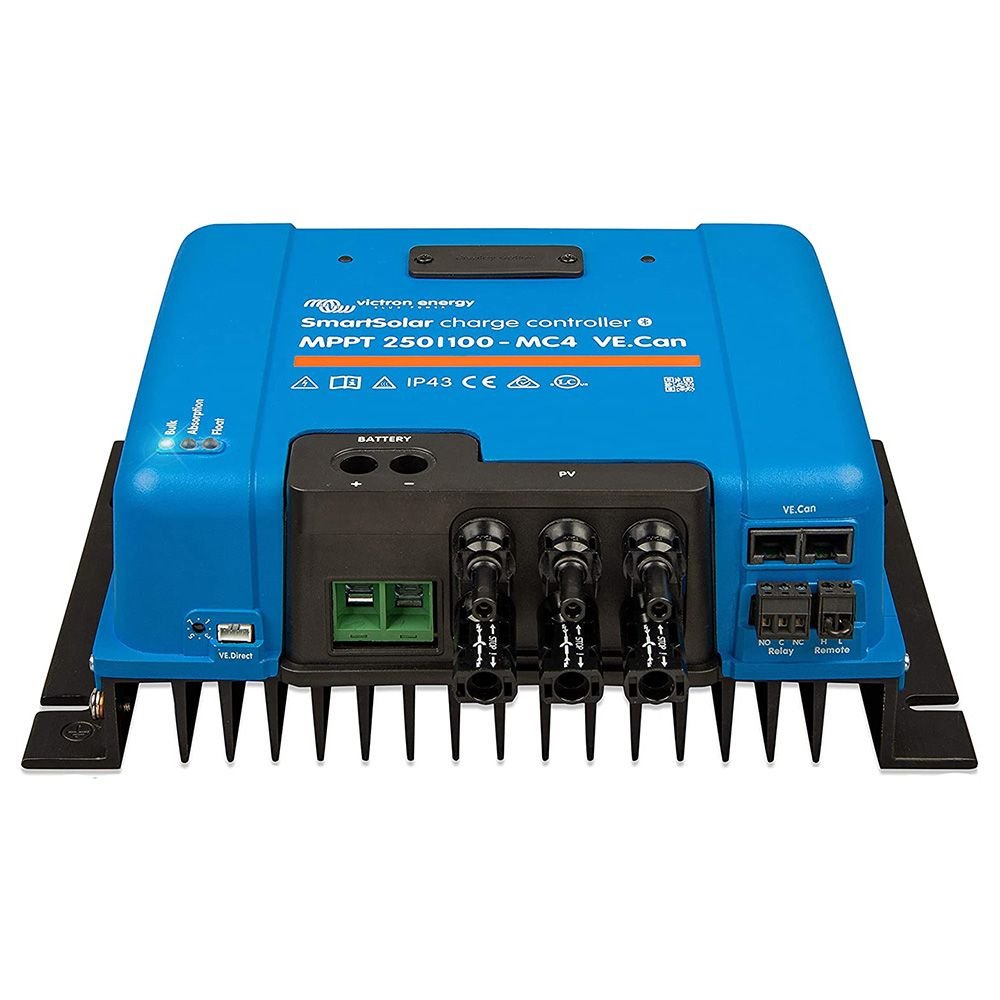

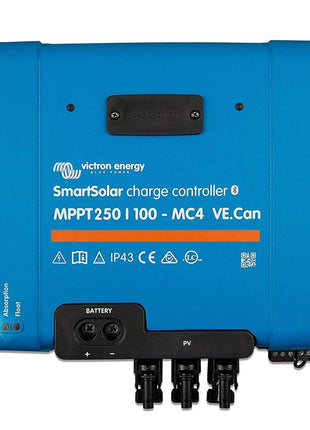

The SmartSolar Mppt 250/100-MC4 from Victron Energy (MPN SCC125110310), belongs to the latest generation of smart solar regulators from the Dutch premium manufacturer. Ultra-fast power tracking and automatic power point detection in part shading are only 2 of the many highlights of this new device class. This model also dominates parallel operation with other controls of the same type.
Compared to the SmartSolar 150/XXX series, the 250/XXX series can process a maximum PV input voltage of 250V. This is also one of the reasons why the 250 solar regulator family was able to increase the efficiency by 1 percent to a total of 99% and thus defined new standards across the sector. This value is currently the best among all solar loaders we know. Compared to the Bluesolar family, the Bluetooth module is already integrated in the controller on the 250 SmartSolar series, which makes the smart dongle unnecessary in this device if you want to analyze and configure the controller via a smartphone or tablet via Bluetooth. Also new is the optionally available LCD display, which can simply be attached to the SmartSolar 150/85-MC4 if necessary. The display then provides all important information about the controller. If necessary, the Mppt Wirbox-XL MC4 from Victron Energy The ideal addition to your SmartSolar Loader. The cable inputs or the connection terminals of the controller are covered safely and thus protected by external influences and touch.
Essential product features of the SmartSolar 250/100-MC4 100A 12V 24V 36V 48V Mppt
- ultra -quick Mppt-Tracker of the latest generation ensures the best possible yield even with a covered sky
- Automatic detection of the Mpp Tension in the case of partial shading ensures further earnings compared to "simpler" Mppt Loader
- With optional LCD display
- Fixed integrated Bluetooth module for app -based analysis and configuration of the controller (via free Victron app on compatible devices)
- Optional LCD display available
- Max. PV performance: 12V 1450W / 24V 2900W / 48V 5800W
- max.
- Max. PV input current: 250 volt integrated VE.Direct data communication sport for connection with additional devices with additional devices the GX Color Control Panel or a Smart BMV battery monitor
- pioneering efficiency 99%
- Parallel operation with other 250/85 controls possible
- Regulatory constant charging voltage
- Regulatory conservation charging voltage
- Suitable for all AGM, gel, lead-acid calcium calcium and lithium batteries
- Fully programmable charging algorithms that can later be activated and switched manually via a switch on the housing
- Integrated protection against battery reolving
- Multi-level and adaptive loading algorithm
- Remote-controlled switching on and off over 2-pin plugs possible
- Protection level IP 43 for the electronic components and protection class IP 22 for the connection area of the controller
- Integrated temperature sensor compensates for conservation and constant charging voltage after temperature
- Day/night-time control and light insulation option
Smart configuration and analysis via Victron Connect App
Modern Apple and Android Smartphones, Tablets, MacBooks and other devices can be connected thanks to the fixed Bluetooth module and the free VICTRON Connect app. The app can then be used to configure many important functions of the SmartSolar controller. Of course, it also delivers all important parameters such as the current solar yield in real time.
Automatic detection of the Maximum Power Point With partial shading
In the event of a partial shading, two or more points of maximum performance can be found on the electricity voltage curve (Mpp) to be available. Conventional MPTS tend to get on a local Mpp to set. However, this may not be the optimal Mpp. The innovative algorithm of the SmartSolar controller will always maximize the energy yield by Mpp set.
High-speed Mpp-Mc4acker of the latest generation
Especially when the sky is covered, when the light intensity changes constantly, an extremely faster improves Mppt-Regulator the energy yield compared to PWM charging controls by up to 30 % and compared to slower Mppt-Mear -down by up to 10 %.
Optionally available LCD display available for retrofitting
Who the SmartSolar Mppt 250/100-MC4 would prefer to use and configure the SmartSolar Control SCC900600010 display. The installation effort is limited to plug in the display to the SmartSolar. The display enables the controller to be easily configured via key input, and it also offers all important performance data at a glance.
Extensive electronic protection
- Protection against flat battery connection
- PV backstream lock
- Protection against overheating of the device
- Protection before short circuits
- Protection against flat PV connection
The Ve.direct data communication sport
Ve.direct in text mode transmits all important parameters to other devices every second Loader are coupled and thus offers the possibility of communication with additional devices system panel GX Color Control. The VE.Direct connection is intended for products in which complete CANBUS integration (VE-Direct) would cause too high costs. You can find more information about Ve.direct in our Victron Energy brand shop.
Optionally also available as a version with MC4 connections
The devices of classes 250/60-MC4 to 250/100-MC4 are also available as a version with MC4 connections on the solar side of the loader control instead of the screw terminals.
Scope of delivery
1x Victron SCC125110310 SmartSolar Mppt 250/100-MC4 12V 24V 36V 48V 85A Loader
1x operating instructions
