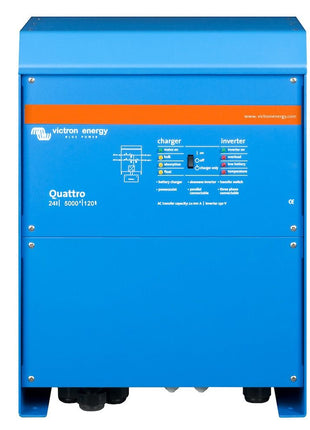

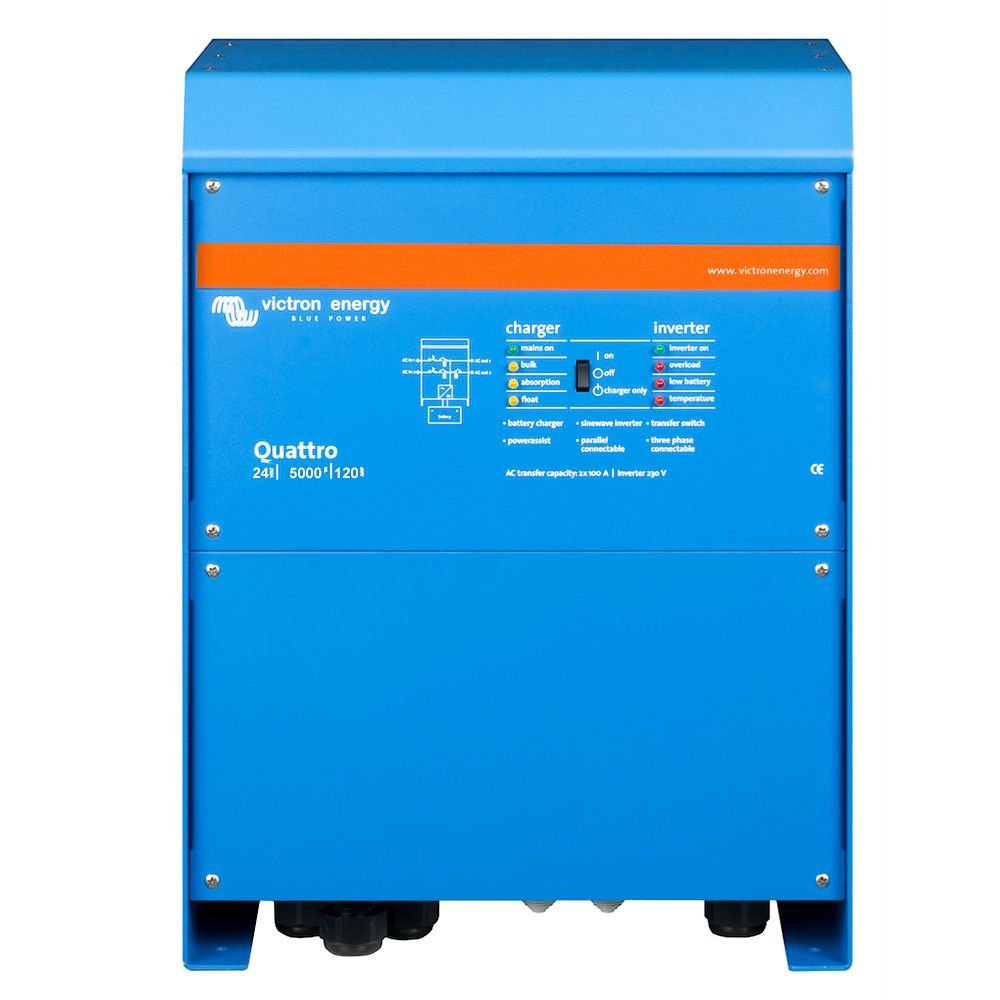

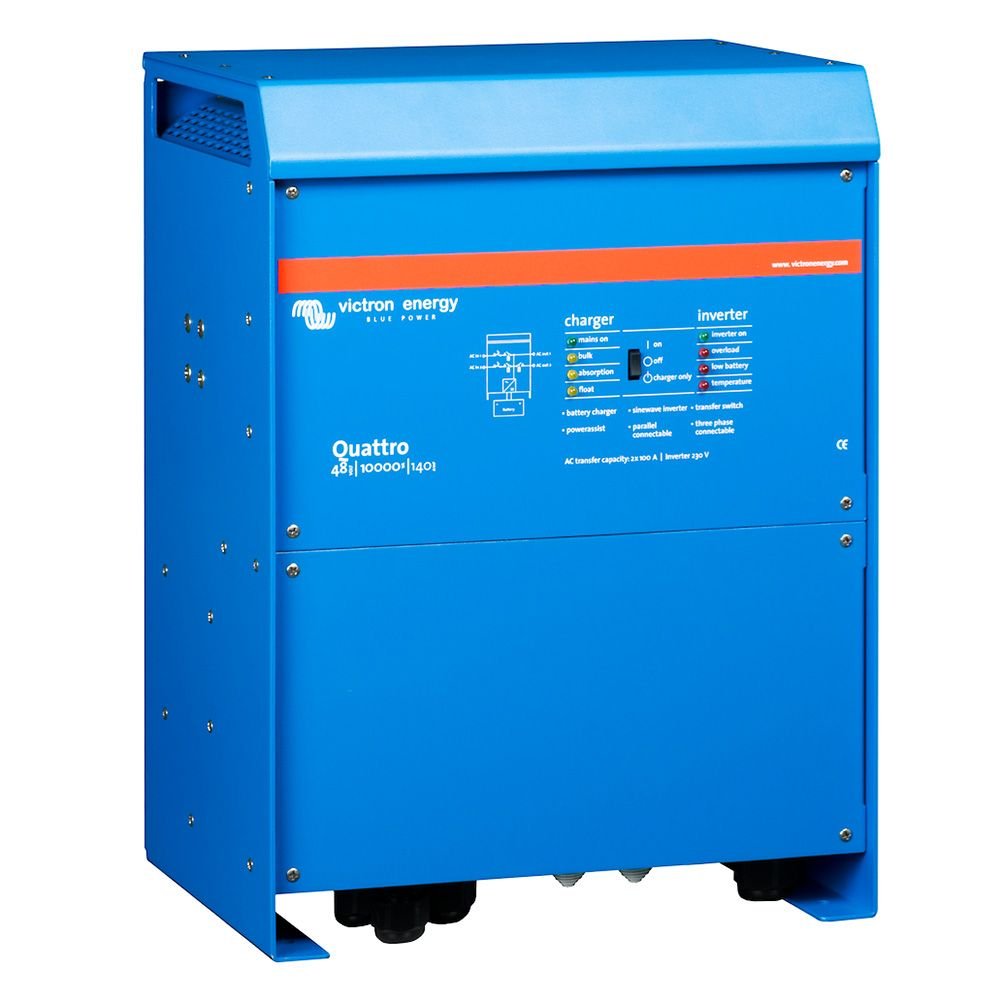

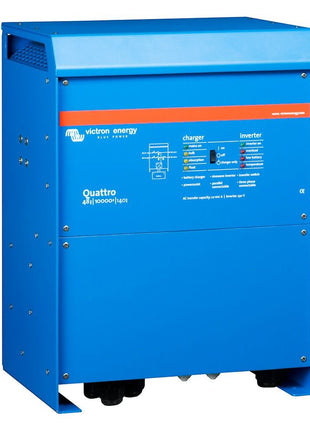

The Quattro 24/5000/120-100/100 from Victron (MPN QUA245021010) is a device combination of a 24V 4000W sine wave inverter, a powerful battery charger and transfer switch. It has two switchable AC outputs and 2 AC inputs, each equipped with a 100A transfer switch. The Quattro can be connected to two independent AC sources: for example to the public power grid and a generator or to two generators. The Quattro automatically connects to the active source.
The integrated battery charger delivers an impressive 120A, which means that even large batteries can be fully charged quickly if shore/mains power is available. The 24V sine wave voltage converter installed in the Quattro converts your battery power into 230V alternating current. Thanks to the real sine wave, the power quality is also perfect for sensitive electronic devices. In addition to the two integrated device types, 1 lightning-fast 100A transfer switch is installed for each alternating current input. Thanks to these switches, countless applications can also be implemented in the grid-connected area. In addition to the VE.Bus port, 2 COM ports are also available for system integration, which enables virtually unlimited networking of the Quattro.
Extremely flexible thanks to 2 AC inputs and 2 AC outputs
The main output ensures uninterrupted operation. In the event of a power failure or an interruption in shore/generator power, the Quattro takes over the supply of the connected consumers. The switchover is so fast (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic devices is guaranteed. The second output only supplies power when AC power is available at one of the Quattro's inputs. Consumers that must not discharge the battery, such as a water heater, can be connected to this output.
Key features of the Quattro 24/5000/120-100/100
- 4000W continuous power and 8000W peak power, for 24V battery voltage
- Device combination of inverter with transfer switch and 120A battery charger
- delivers pure 230V sine voltage and a clean 50Hz frequency
- 2 AC inputs with integrated transfer switch / 2 x 100 A maximum switchable current
- 2 AC outputs + 1x additional output which only allows current to pass to the consumer when the AC input is active.
- VE.Bus communication port provides extensive possibilities for networking, system integration, configuration and control of Victron Multiplus devices.
- supports three-phase operation (3 identical units of the same model required)
- Multiplus devices can be connected in parallel, up to 6 devices can be connected in parallel and the system performance can thus be significantly increased if necessary
- 2x COM ports are available in addition to the VE.Bus port, meaning there are virtually no limits to system integration
- PowerControl function enables working with limited generator power as well as limited shore or mains power
- PowerAssist function enables “performance increase” of generators and shore connection support when required
- Can be used as a UPS solution for uninterruptible power supply, thanks to the integrated transfer switch with 16A or 50A
- Can be used for grid-connected self-consumption systems that only draw power from the grid operator when the battery capacity is no longer sufficient or other programmable events have occurred
- 3 separately programmable relays
- Compatible with numerous Victron control and display panels
- very high efficiency and low self-consumption
massive performance expansion possible
Up to 6 Quattros can be connected in parallel. For example, with six 48/10000/140 units this results in 54 kW/60 kVA power or 840 A charging current. Three units can be connected in a three-phase configuration. But that's not all: up to 6 sets with three devices can be connected in parallel, giving 162 kW/180 kVA inverter power and over 2,500 A charging capacity.
PowerControl – Working with limited generator power, limited shore or mains power
The MultiPlus is a very powerful battery charger. It therefore draws a lot of power from the generator or shore power supply (almost 10A per 5kVA Multi at 230 VAC). The Multi Control remote control panel can be used to set the maximum mains or generator current to be drawn. The MultiPlus then takes other connected AC consumers into account and only uses the power that is "left over" for charging. This prevents the generator or shore power connection from being overloaded.
PowerAssist – “performance enhancement” of generators and shore connection support
This function gives the PowerControl principle a new dimension. It enables the Quattro to support alternative sources that are too weak. Load peaks often only occur for a limited period of time. In such a case, the Quattro ensures that insufficient shore power or generator power is immediately compensated for by energy from the battery.
BackUp system: alternating current even in the event of a power failure
The Quattro can be used in both off-grid and grid-connected PV systems as well as other alternative energy systems. Software is available to detect a grid failure.
simple system configuration
If settings need to be changed on a single device, this can be done within a few minutes using a DIP switch setting procedure.
Parallel and three-phase systems can be configured using the VE.Bus Quick Configure and VE.Bus System Configurator software.
On-site monitoring options and control
Several options are available: Battery Monitor, Multi Control Panel, Ve.Net Blue Power Panel, Color Control Panel, Smartphone or Tablet (Bluetooth Smart), Laptop or Computer (USB or RS232).
Remote monitoring and control
Victron Ethernet Remote, Victron Global Remote and the Color Control Panel enable remote maintenance and monitoring of the MultiPlus. In addition, system data can be stored and viewed free of charge on the VRM (Victron Remote Management) website.
Remote configuration
If systems with a Color Control Panel are connected to the Ethernet, they can be accessed and settings can be changed remotely.
Scope of delivery:
1x Victron QUA245021010 Quattro 24/5000/120-100/100 device combination consisting of 24V 4000W sine wave converter + 24V 120A battery charger + 2 AC inputs with integrated 100A transfer switches
1x User manual
