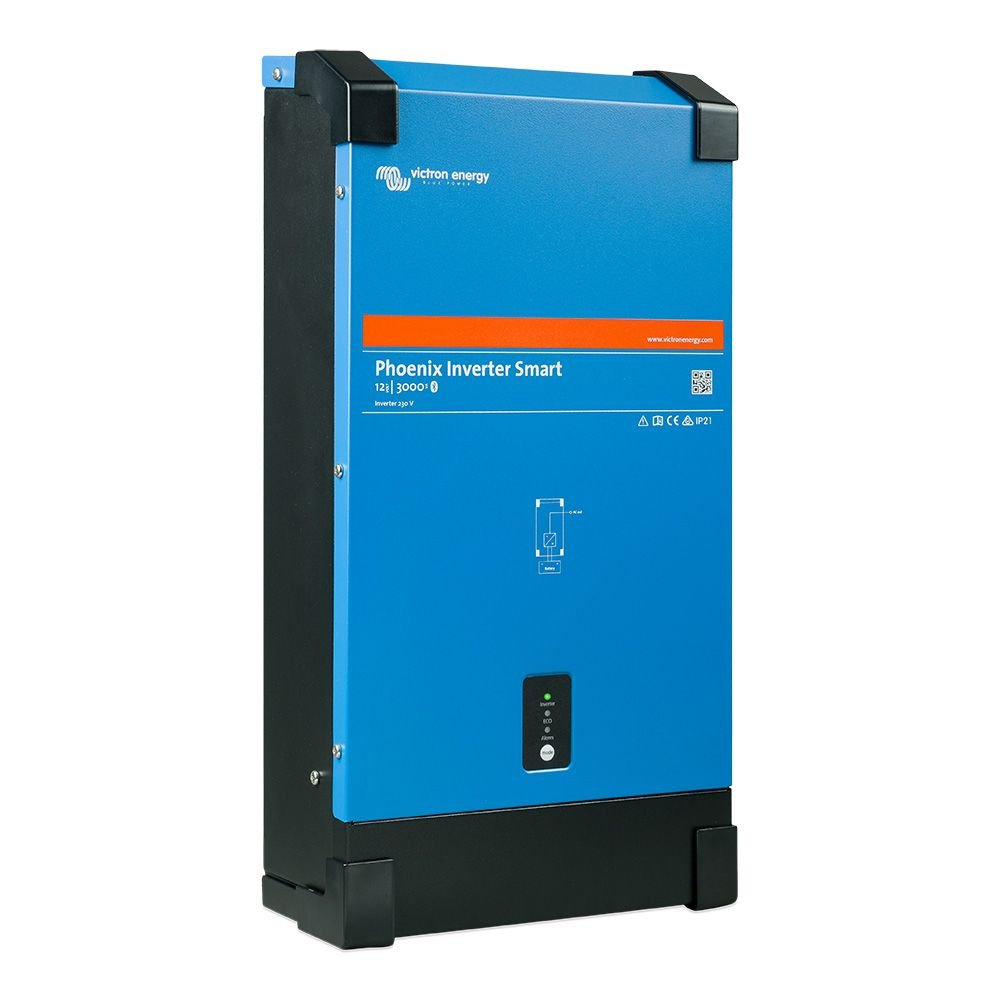

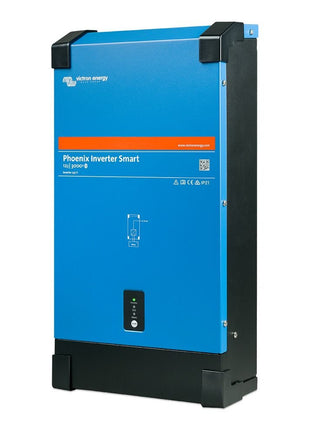

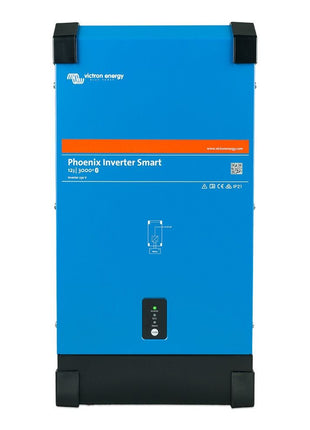

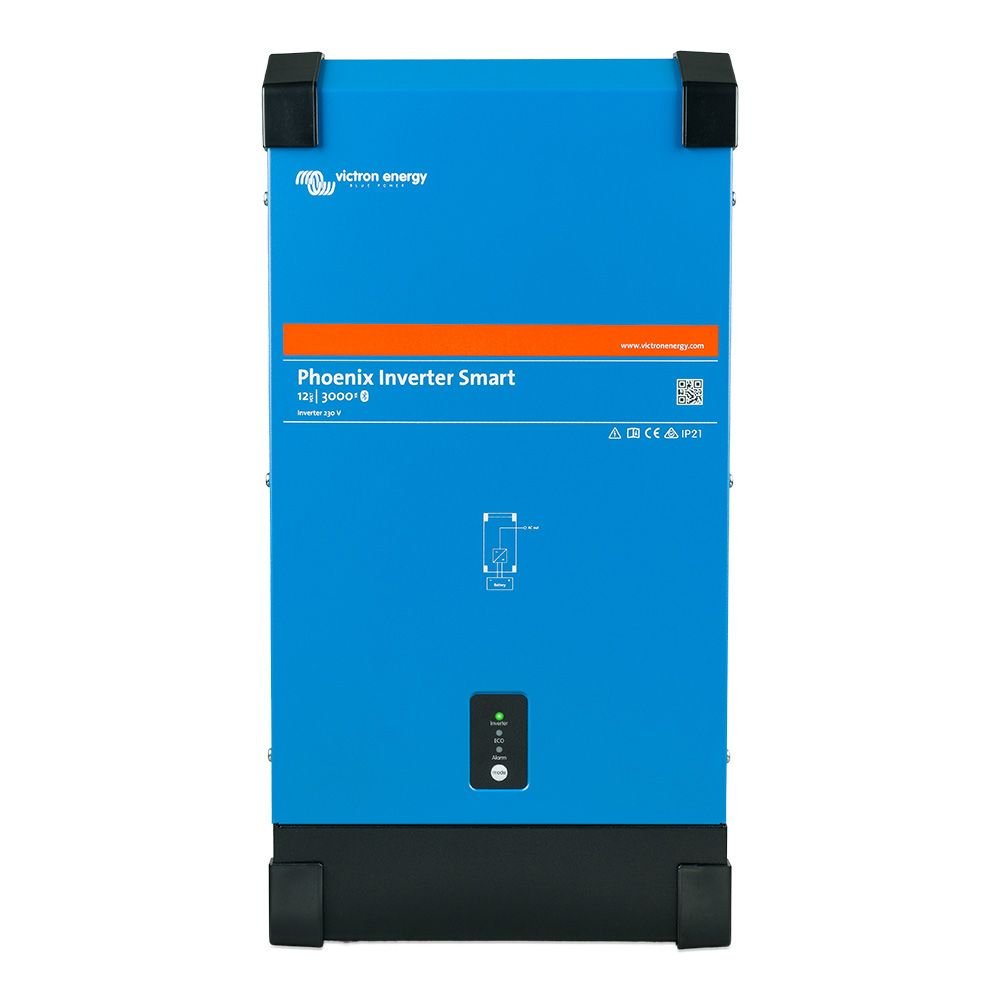

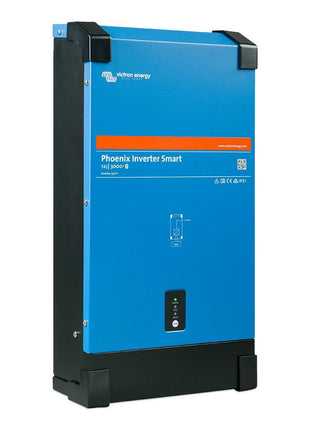

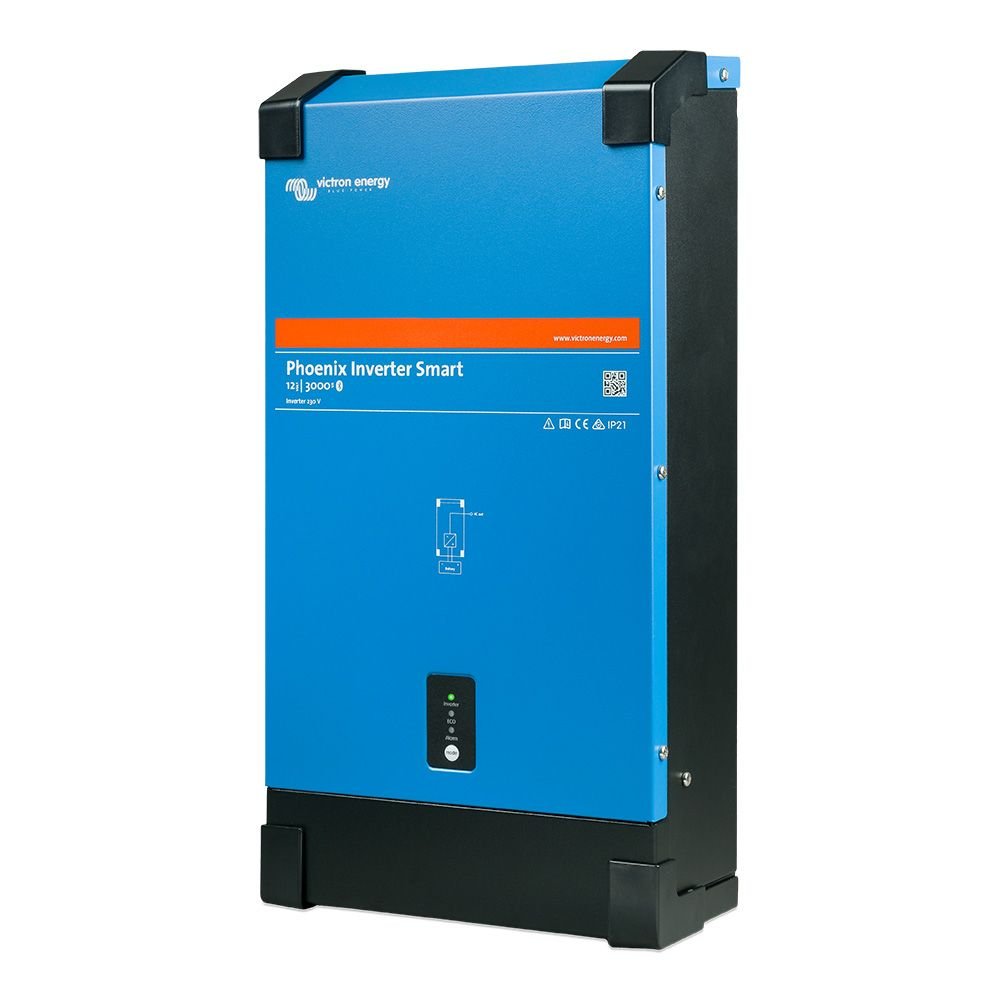

The Phoenix 12/3000 smart inverter from Victron Energy (MPN PIN122300000), is an advanced inverter based on the proven Phoenix series. It offers a continuous output of 3000W and is designed for 12V battery voltage. In comparison to the previous models, the Phoenix Smart series has a Bluetooth module and a VE.Direct output for wireless remote monitoring and system configuration.
The Phoenix 12/3000 Smart is further characterized by its high switching power and reliability and, thanks to the integrated ECO mode, is also in the top league of this device class in terms of self-consumption and efficiency.
Performance features Phoenix 12/3000 Smart
- for 12V battery voltage, output voltage range 210C – 245V
- Output power (non-linear): 3000W, 2400W linear continuous load at 25 degrees ambient temperature
- 6000W peak power to handle high starting currents
- Integrated Bluetooth module and VE.Direct port for wireless monitoring and system integration
- designed for high inrush currents
- Integrated alarm relay, ECO mode
- Monitoring of input and output voltage, load and alarms etc. via Bluetooth or VE.Direct
- Integrated, two-pin plug for connecting an on/off switch (remote control)

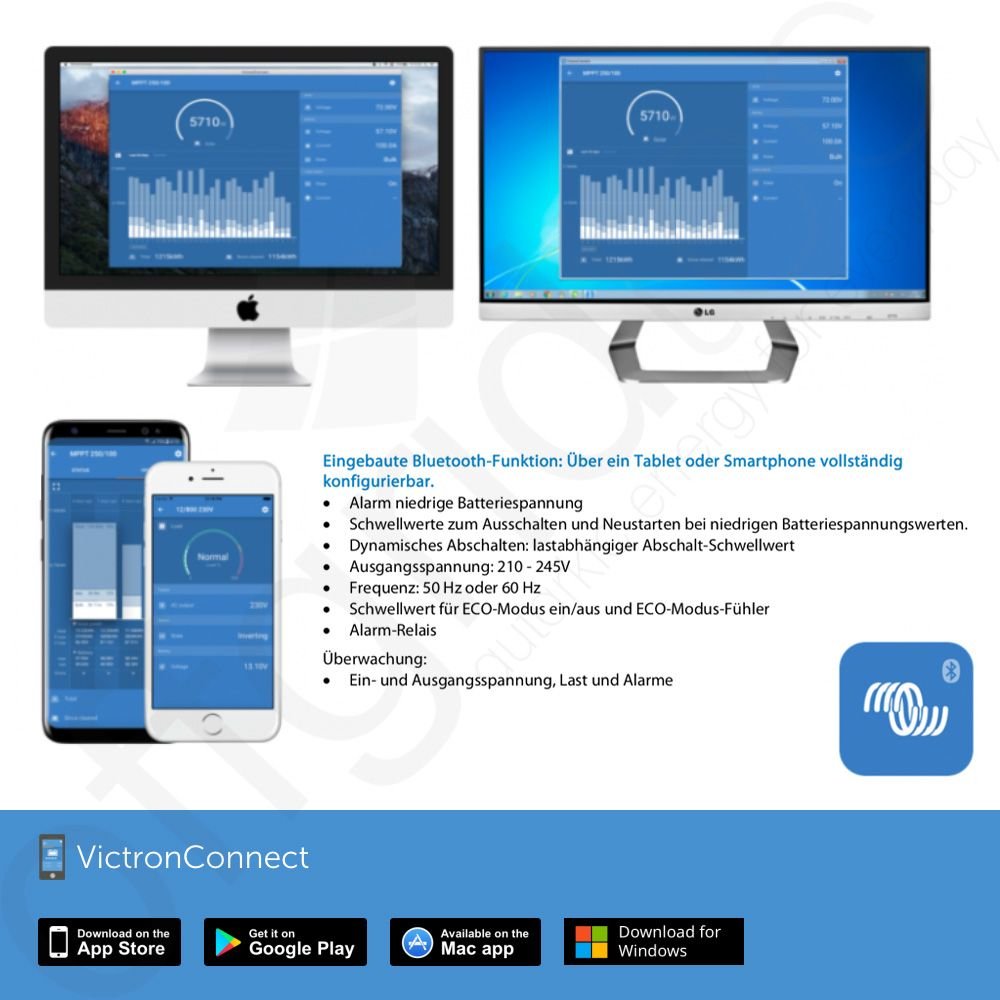

Parameters configurable via Bluetooth or VE.Direct
- Low battery voltage alarm
- Thresholds for switching off and restarting at low battery voltage values
- Dynamic shutdown: load-dependent shutdown threshold
- Output voltage: 210 - 245V, frequency: 50 Hz or 60 Hz
- Threshold for ECO mode on/off and ECO mode sensor
- Alarm relay
High reliability thanks to ring transformer topology
Complete bridging with a ring transformer topology has proven itself for years. The inverters are short-circuit proof and protected against overheating (whether caused by overload or by the ambient temperature).
Very high switching power
This is required to switch on loads such as voltage converters for LED lamps, halogen lamps or power tools.
Eco mode
In ECO mode, the inverter switches to standby as soon as the load falls below a preset value. In standby mode, the inverter then switches on every 2.5 seconds for a short period of time (adjustable). If the load exceeds the preset threshold, the inverter remains switched on.
Remote controlled on/off switch

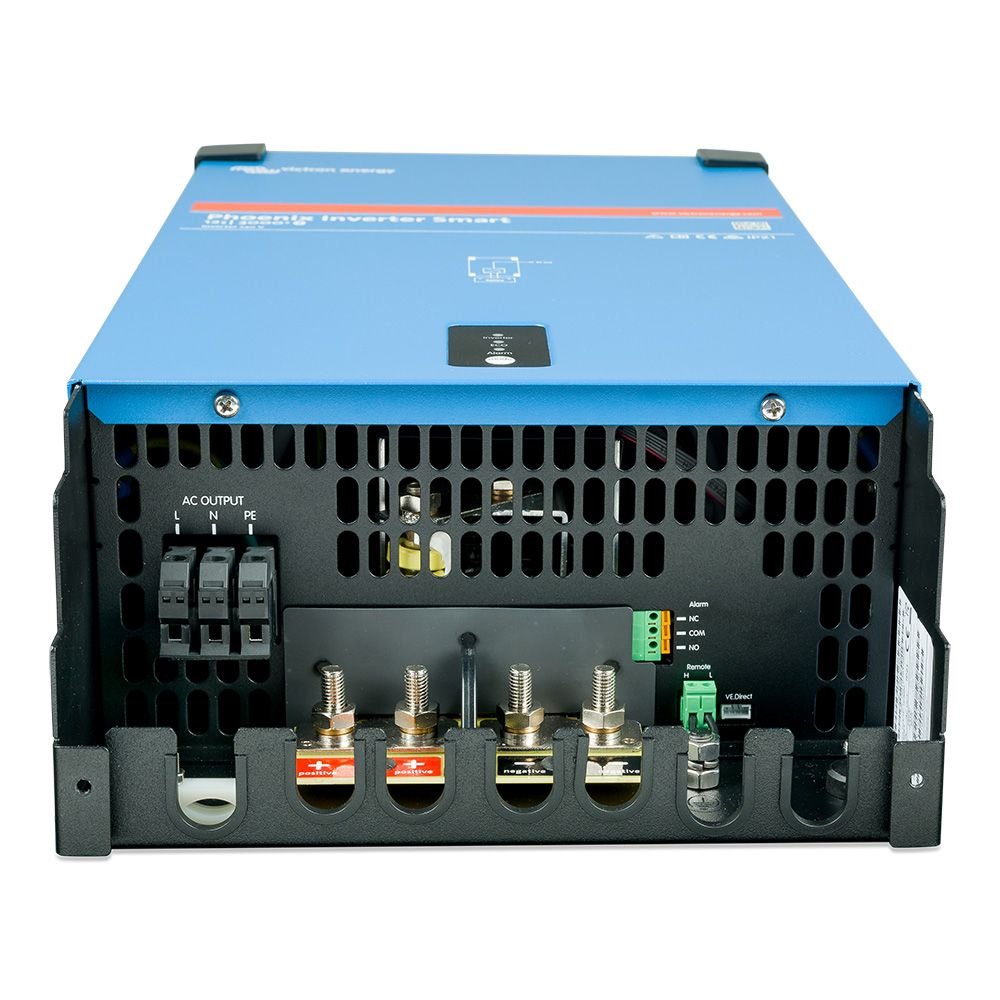

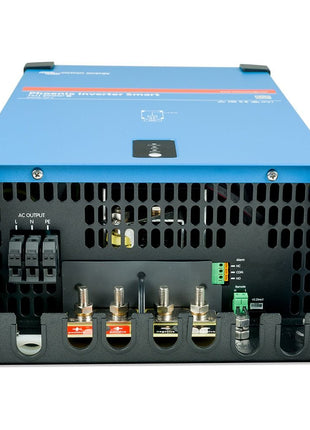

A remote-controlled on/off switch or a relay contact can be connected to the two-pin plug. Alternatively, the H (left) connection of the two-pin plug can be connected to a battery positive terminal or the L (right) connection of the two-pin plug can be connected to the battery negative terminal (or, for example, to the body of a vehicle).
Scope of delivery:
1x Victron PIN122300000 Phoenix Smart 12/3000
1x user manual
