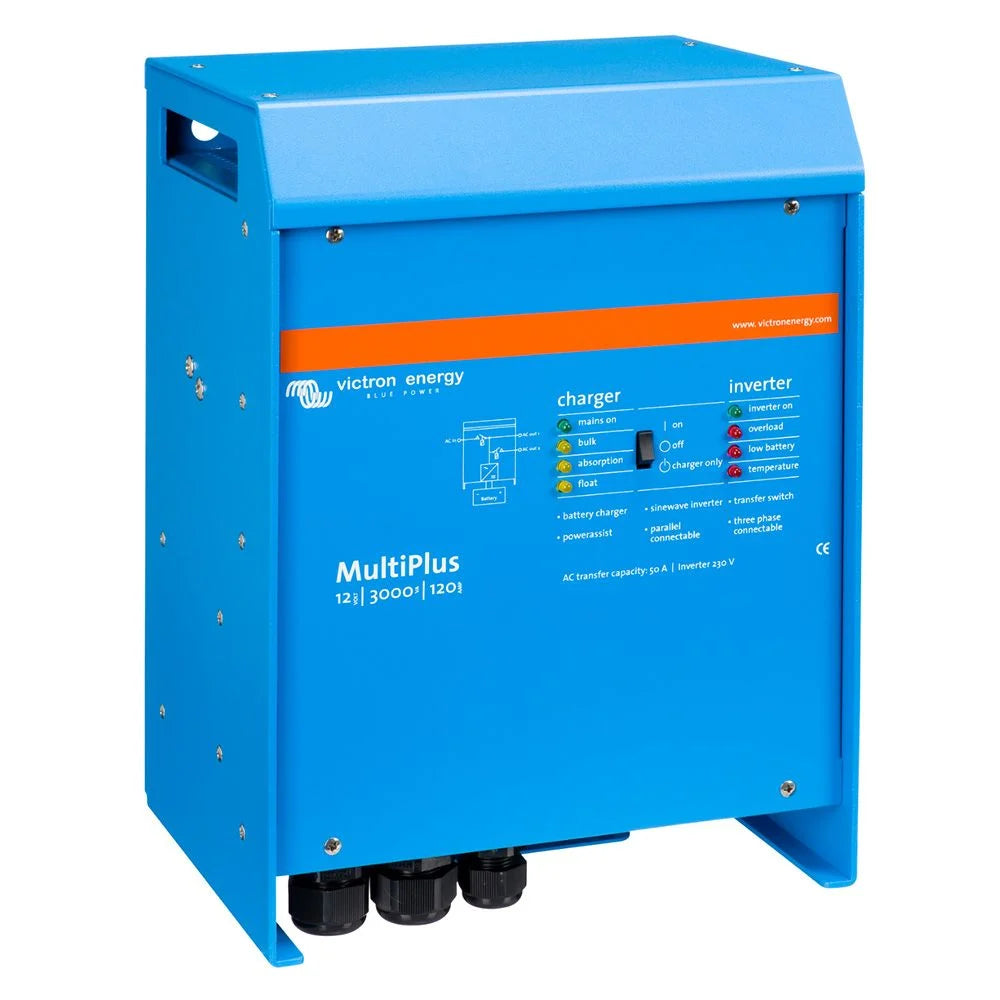

The Multiplus 12/3000/120-16 from Victron Energy (MPN: PMP123020001) is a device combination of a 12V 2400W sine wave inverter and a battery charger. The integrated battery charger delivers an impressive 120A, which means that even large batteries can be fully charged quickly if shore/mains power is available. The 12V sine wave voltage converter built into the Multiplus converts your power from the battery into 230V alternating current.
Thanks to the real sine wave, the power quality is also perfect for sensitive electronic devices. In addition to the two integrated device types, a lightning-fast transfer switch is also installed, which can be used to implement numerous grid-connected solutions. In addition to the VE.Bus port, a COM port is also available for system integration, which enables virtually limitless networking of the Multiplus.
Comprehensive and flexible
This inverter combines a charger, inverter and a fast transfer switch, perfect for RVs, boats, yachts and grid connection. It ensures uninterrupted power supply in the event of grid fluctuations or outages. Also ideal for self-consumption systems that only access grid power when battery power is low, or as a UPS solution that ensures uninterrupted power flow when the grid fails.
About the Multiplus 12/3000/120-16
- Powerful: 2400W continuous power, 6000W peak power at 12V battery voltage
- All-in-one device: inverter with transfer switch, 120A battery charger
- Reliable power supply: Pure 230V sine wave voltage, 50Hz frequency
- Networkability: VE.Bus communication port enables comprehensive networking, configuration and control
- Scalability: Parallel connection of up to 6 devices possible for higher performance
- Flexibility: 2 AC outputs, COM port from Multiplus 3000 for extended system integration
- Functions: PowerControl, PowerAssist for optimized power usage
- Versatility: Can be used as UPS, suitable for grid-connected self-consumption systems
- Compatibility: Supports various Victron control and display panels
- Three-phase operation possible with identical MultiPlus inverters
Massive performance expansion possible
Apart from the parallel connection, three units of the same model can also be configured for a three-phase output. But that's not all: up to six sets of three units can be connected in parallel to achieve a huge 75 kW / 90 kVA inverter and over 2,000 A charging capacity (calculated with the 5000 version)
PowerControl
Working with limited generator power, limited shore or mains power
The MultiPlus is a very powerful battery charger. It therefore draws a lot of power from the generator or shore power supply (almost 10A per 5kVA Multi at 230 VAC). The maximum mains or generator current to be drawn can be set using the Multi Control remote control panel. The MultiPlus then takes other connected AC consumers into account and only uses the power that is "left over" for charging. This prevents the generator or shore power connection from being overloaded.
PowerAssist
“Performance increase” of generators and shore connection support
This function gives the PowerControl principle a new dimension. It enables the MultiPlus to support alternative sources that are too weak. Load peaks often only occur for a limited period of time. In such a case, the MultiPlus ensures that insufficient shore power or generator power is immediately compensated for by energy from the battery.
BackUp system: alternating current even in the event of a power failure
The Multiplus can be used with both off-grid and grid-connected PV systems as well as other alternative energy systems. Software is available to detect a grid failure.
Easy system configuration
If settings need to be changed on a single device, this can be done within a few minutes using a DIP switch setting procedure.
Parallel and three-phase systems can be configured using the VE.Bus Quick Configure and VE.Bus System Configurator software.
On-site monitoring options and control
Several options are available: Battery Monitor, Multi Control Panel, Ve.Net Blue Power Panel, Color Control Panel, Smartphone or Tablet (Bluetooth Smart), Laptop or Computer (USB or RS232).
Remote monitoring and control
Victron Ethernet Remote, Victron Global Remote and the Color Control Panel enable remote maintenance and monitoring of the MultiPlus. In addition, system data can be stored and viewed free of charge on the VRM (Victron Remote Management) website.
Remote configuration
If systems with a Color Control Panel are connected to the Ethernet, they can be accessed and settings can be changed remotely.
Technical data:
- Input voltage range: 9.5-17V, 19-33V, 38-66V
- Output voltage: 230VAC±2% - 50Hz ± 0.1%
- Peak power: 6000W
- Continuous power: 2400W
- Battery connection: Four M8 bolts (2 plus and 2 minus connections)
- 230VAC connection: screw terminals 13mm² (6 AWG)
- Max. efficiency: 95%
- Protection class: IP21
- Dimensions: 362 x 258 x 218mm
- Weight: 18kg
Scope of delivery:
1x Victron PMP123020001 Multiplus 12/3000/120-16 device combination
1x User manual
