The LiFePO4 12.8V 100Ah Smart Battery (MPN BAT512110610) from Victron Energy is a LiFePO4 battery of the latest generation. When fully charged, the LiFePO4 12.8/100 Smart stores a whopping 1280Wh of power with very low self-discharge and an outstanding service life. The LiFePO4 battery family from Victron already has an integrated cell balancing and a BMS (Battery Management System) interface. The integrated Bluetooth for connecting to the Li-Ion app rounds off the overall package.

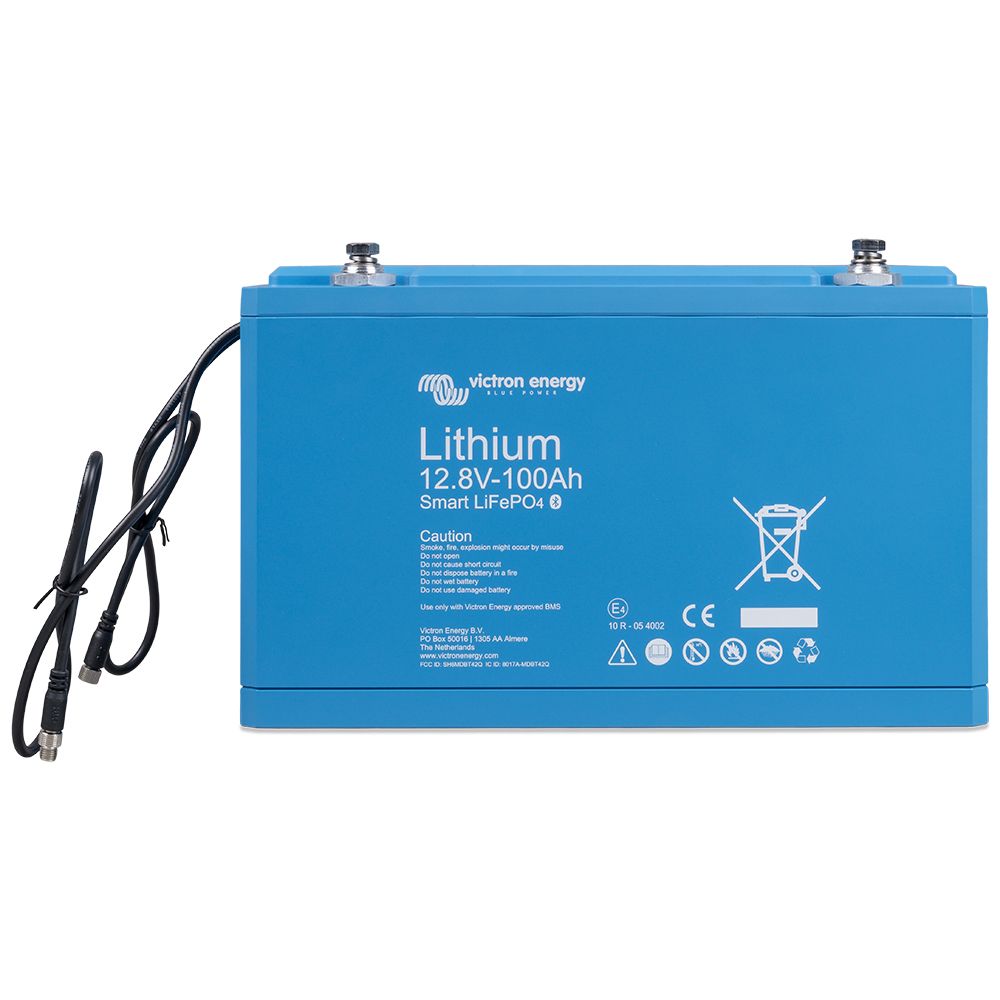

Victron LiFePO4 12.8V 100AH Smart Battery
- Nominal voltage: 12.8V
- Integrated Bluetooth for connection to the Victron Li-Ion app
- Victron Part Number: BAT512110610
- Nominal energy at 25°C*: 1280Wh
- Nominal capacity at 25°C/0°C/-25°C: 100Ah / 80Ah / 50Ah
- Number of cycles at depth of discharge 80%/70%/50%: 2500 / 3000 / 5000 cycles
- Recommended continuous discharge current: 100A
- Maximum continuous discharge current: 200A
- Weight: 16kg
- Connection terminal: M8
Further technical data can be found in the official data sheet and further down in the “technical data” section.
Efficient, economical...: LiFePO4 12.8V 100Ah Smart Battery
Although LiFePO4 batteries are expensive compared to AGM batteries or GEL batteries, the higher purchase costs are more than worth it in most cases. With a service life of up to 5000 cycles, they exceed the maximum service life of even the best lead-acid batteries by several times. In addition, the LFP 12.8/100 scores highly in terms of space saving and weight saving, each with 70%. The energy utilization rate of 92% is also significantly higher than the 80% of lead-acid batteries, which can be of essential importance in off-grid systems, especially in off-grid solar and/or wind power plants.
All-rounder: infinitely flexible with lithium technology from Victron Energy
LiFePO4 Smart batteries from Victron can be implemented in almost all common applications. This technology has long played an important role in the mobile sector. But thanks to the fact that these batteries are much easier to charge than conventional lead-acid batteries and irregular charging does not harm them, they are also making their way into land applications and can now be found in almost all system classes.
Parallel and series connection up to max. 3000AH at 48V
Thanks to the integrated cell balancing and cell monitoring function, you can easily connect up to 10 batteries of this type in parallel and up to 4 blocks of 10 in series, which results in a maximum of 3000Ah at 48V - this corresponds to a maximum storable nominal energy of around 154,000 Wh (when used with the 300Ah 12.8V version).
Integrated Bluetooth for smart handling
Cell voltages, temperature and alarm status can be monitored via Bluetooth. This is very useful for detecting a (possible) problem such as a cell imbalance in good time.
IMPORTANT NOTE: The use of an additional BMS is mandatory to interrupt or switch off the load when the voltage of a battery cell drops below 2.5V or to stop the charging process when the voltage of a battery cell rises above 4.2V and to switch off the system when the temperature of the cell exceeds 50°C.
You can choose between the BMS 12/200 and the VE.Bus BMS – for further details about the devices, please refer to the respective article descriptions.
Due to the classification as dangerous goods, this product will be shipped via freight forwarder!
Scope of delivery:
1x Victron Energy BAT512110610 LiFePO4 12.8V 100AH Smart Battery
1x User manual
