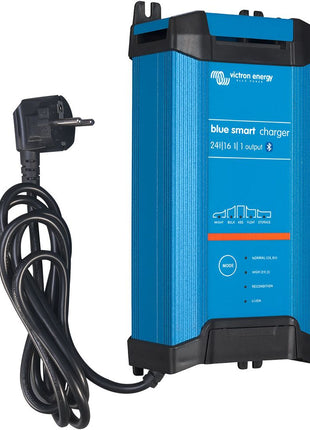

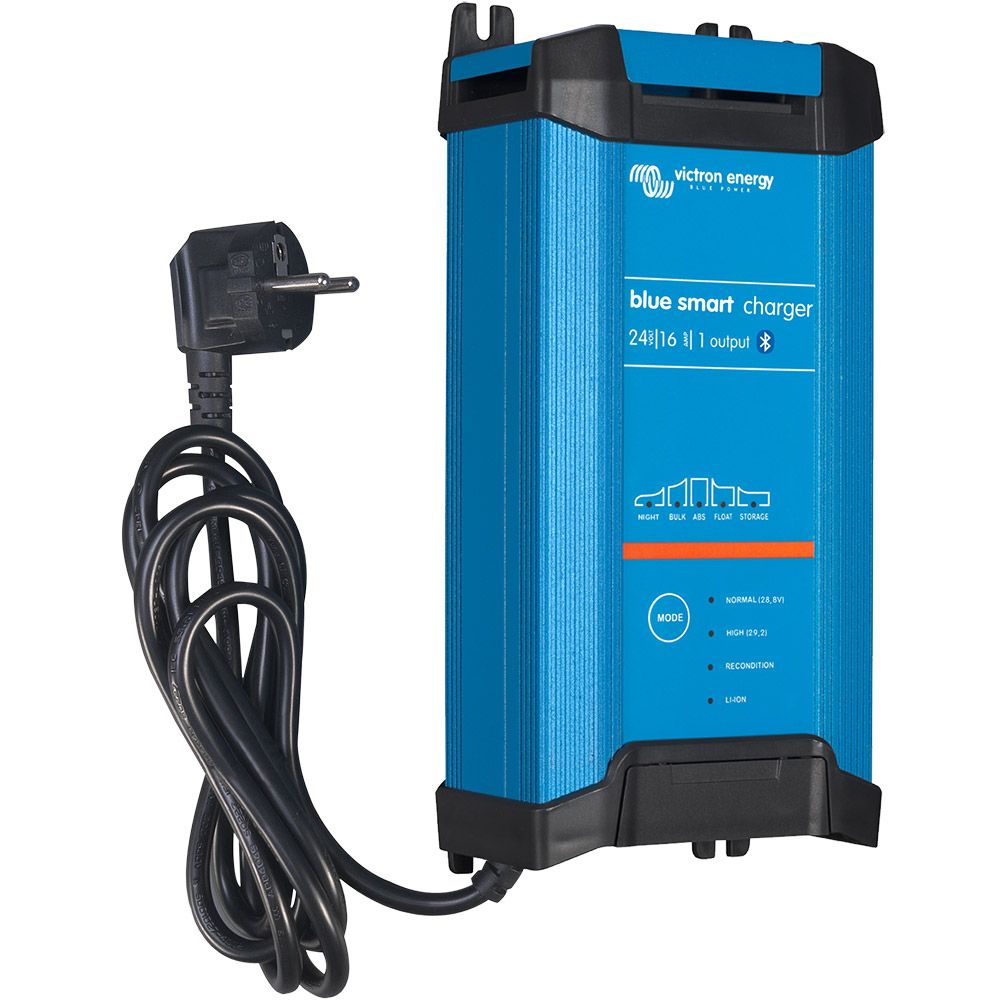

The Blue Smart IP22 24/16(1) charger from Victron Energy (MPN BPC241642002) is a professional, compact 24V 16A battery charger of the latest generation with a charging output and built-in Bluetooth! The Blue Smart IP22 24/16(1) charger can be used with equipment in your workshop or with motor vehicles such as (classic) cars, motorcycles, boats and mobile homes and charges both classic 24V lead batteries and modern lithium batteries. It offers
Highlights of the 24/16(1) Blue Smart IP22 Charger
Intelligent charging until the battery reaches its perfect state...
The seven-stage charging algorithm gets the most out of your battery. The charger delivers the energy the battery needs, keeps it in a healthy state, ensures better performance... and a longer life.
Recovery of deeply discharged "dead" batteries
Unlike most other brands and ranges, the Blue Smart IP22 charger will attempt to recharge a deeply discharged battery by forcing a low charge current through it. Normal charging will then resume once sufficient voltage is present between the battery terminals.

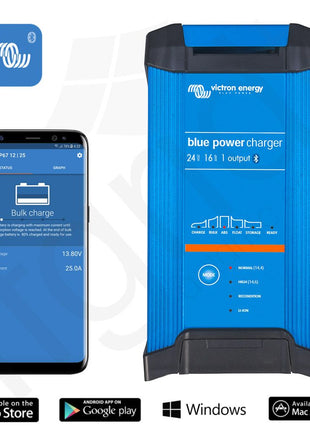

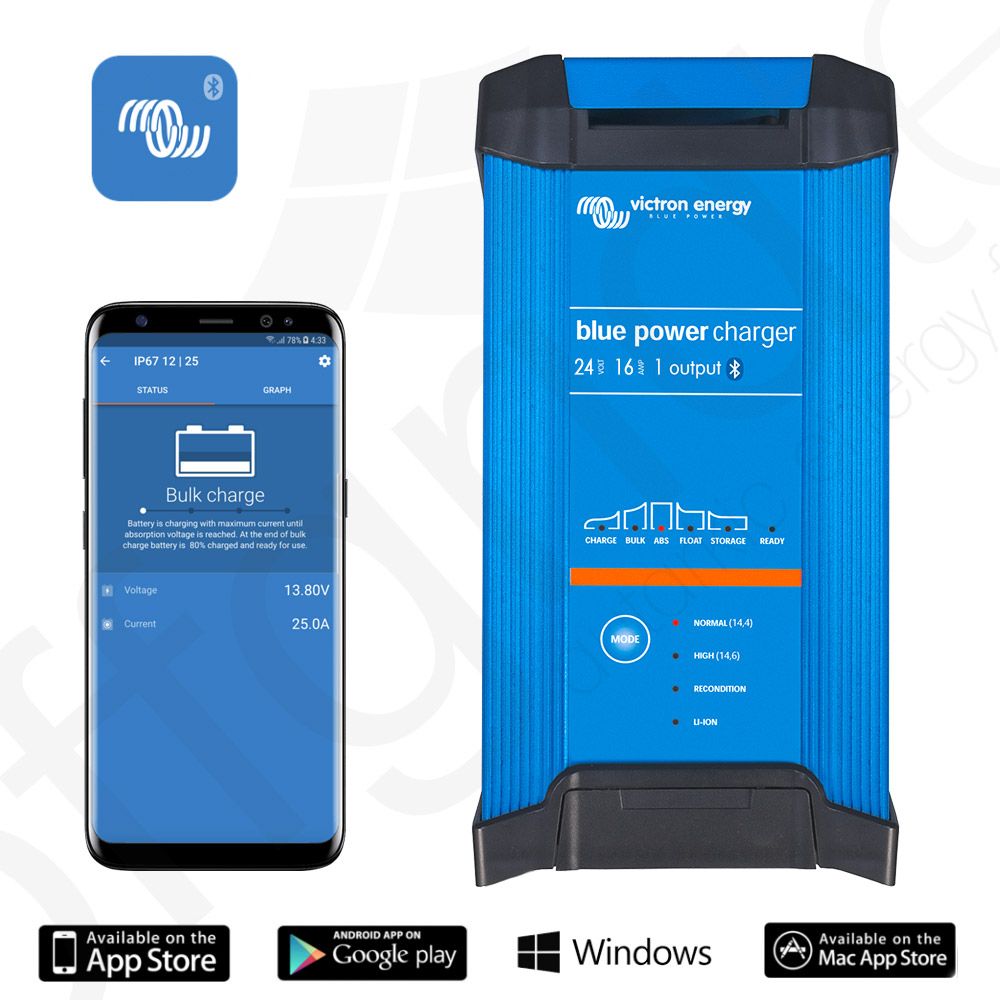

View battery status remotely with the VictronConnect app
The Blue Smart IP22 24/16(1) charger has built-in Bluetooth. This allows you to check the status of the charger and battery on a smartphone, tablet or laptop. All charger settings can be configured using the VictronConnect app.
The main technical features of the 24/16(1) Blue Smart IP22 Charger
- Victron Part Number: BPC241642002
- charges 24V lead-acid, gel, AGM and lithium batteries
- 16A maximum charging current
- 1 battery charging output
- very compact dimensions: 235 x 108 x 65mm
- highly modern, seven-stage loading algorithm
- with integrated Bluetooth for use with the free VictronConnect app
Other features of the 24/16(1) Blue Smart IP22 battery charger
Trend-setting efficiency
With an efficiency of up to 94%, these chargers generate up to four times less heat than the industry standard. Additionally, after the battery is fully charged, power consumption drops to less than 0.5 watts, which is about five to ten times better than the industry standard.
Adaptive 7-stage charging algorithm
The 24/16(1) Blue Smart charger is characterized by its microprocessor-controlled, “adaptive” battery management. “Adaptive” means that the charging process is automatically adapted to the type of battery use.
Storage mode: Less maintenance and aging when the battery is idle
Storage mode is activated whenever no discharge has occurred within 24 hours. The float charge voltage is then reduced to 2.2V/cell (13.2V for a 24V battery) to minimize gassing and prevent corrosion of the positive plates. Once a week, the voltage is increased to the level of the gassing voltage. This creates a kind of equalization charge that prevents electrolyte stratification and sulfation - the two main causes of premature battery failure.
Scope of delivery:
1x Victron Energy BPC241642002 24/16(1) IP22 Blue Smart Charger
1x User manual
