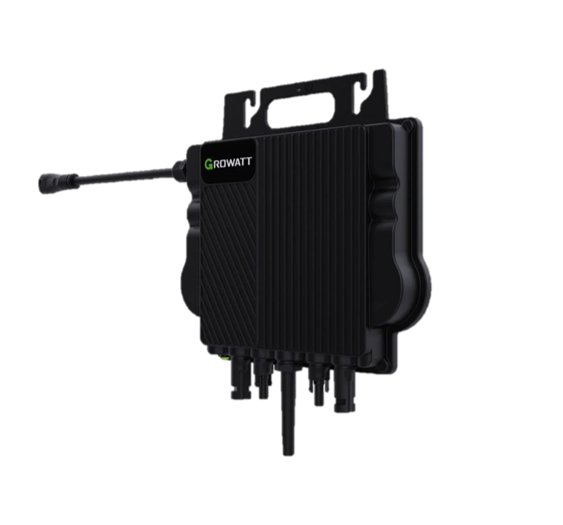

The Growatt NEO 800M-X microinverter is characterized by modern technology and outstanding efficiency. It is equipped with two independent MPP trackers that allow flexible adaptation to different solar module configurations, ideal for use in balcony power plants. The inverter supports a maximum input voltage of 60 V and a starting voltage of 16 V, achieves a maximum AC apparent power of 800 VA and offers an efficiency of up to 97.3%.
Integrated protective mechanisms such as DC reverse polarity protection, AC surge arresters and ground fault monitoring ensure safety. Thanks to its IP67 protection class, the inverter is robust against environmental influences. The integrated WiFi communication enables easy monitoring and control.
With dimensions of 260 x 220 x 43 mm and a weight of 3.1 kg, the NEO 800M-X is easy to install and handle. It works reliably in a temperature range of -40°C to +65°C, with natural convection for cooling. Growatt offers a 10-year warranty on the device, which underlines its durability and reliability.
Technical data:
-
Maximum input voltage: 60 V
-
Starting voltage: 16 V
-
Maximum AC apparent power: 800 VA
-
Efficiency: Up to 97.3%
-
Protection class: IP67
-
Dimensions: 260 x 220 x 43mm
-
Weight: 3.1 kg
-
Operating temperature range: -40°C to +65°C
-
Cooling: Natural convection
-
Warranty: 10 years
Manufacturer: Growatt Manufacturer No.: A9891776 EAN/GTIN: 4255704414004
