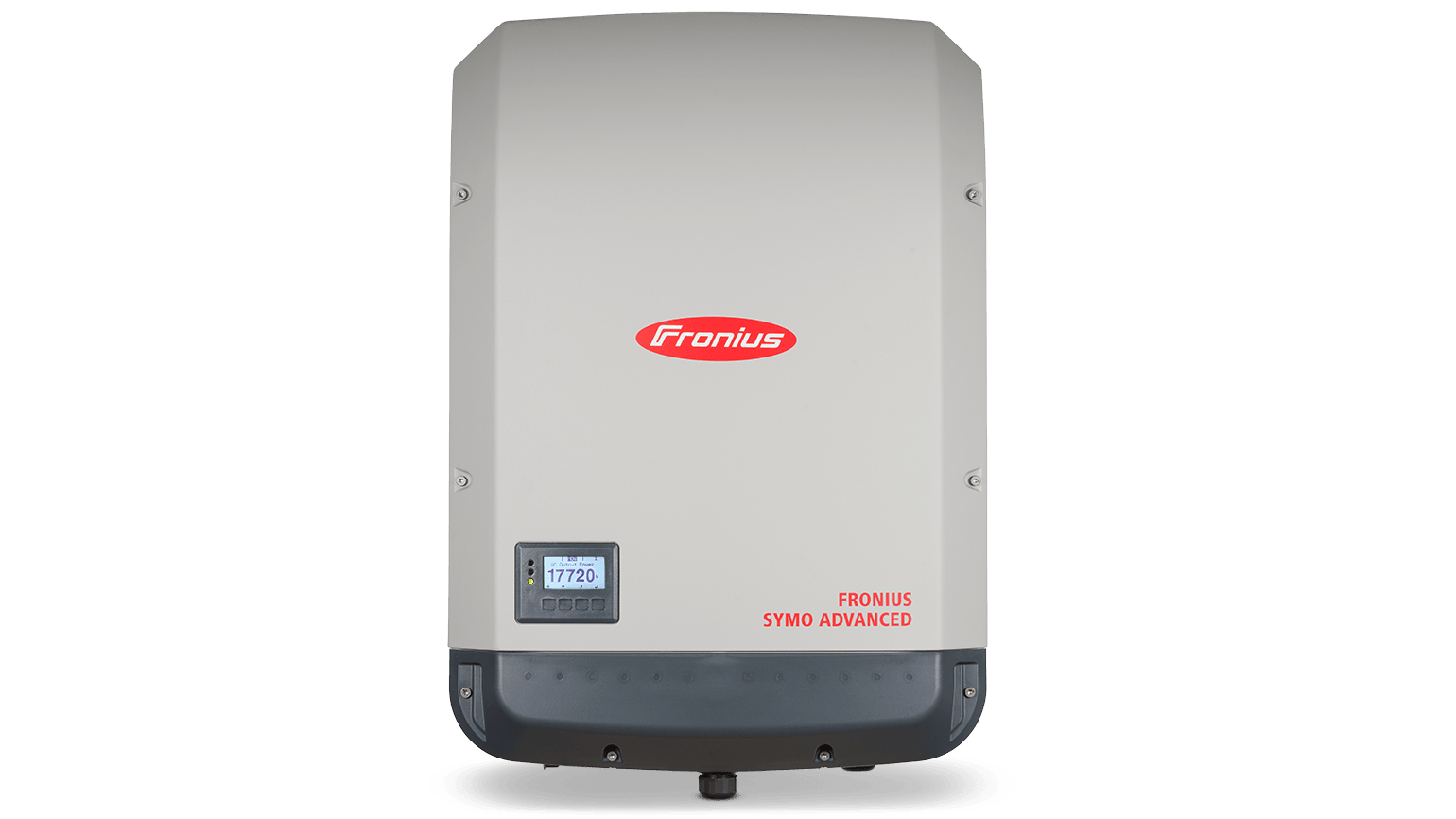

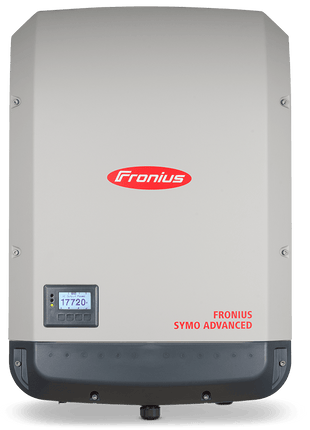

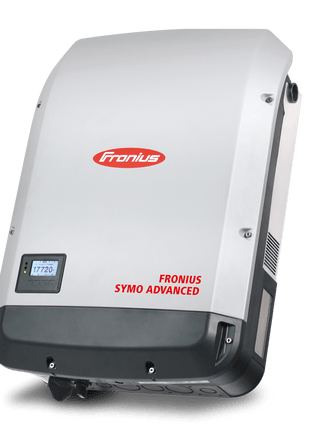

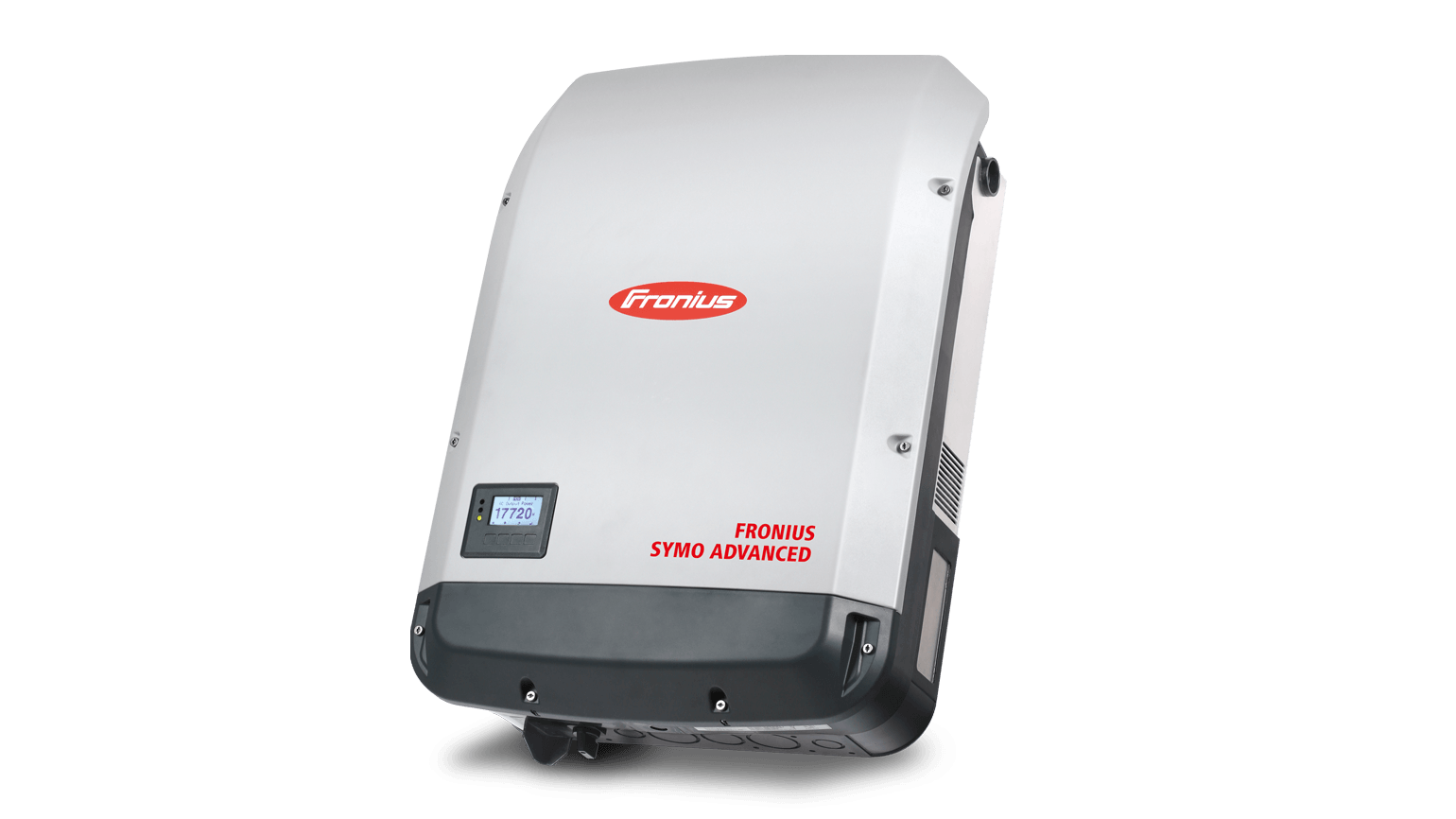

Description
INPUT DATA
- Number of MPP trackers: 2
- Max. input current (Idc max): 27.0 / 16.5 A
- Max. short-circuit current of the module field*: 55.7 / 34.0 A
- DC input voltage range (Udc min – Udc max): 200 – 1000 V
- Starting voltage (Udc start): 200V
- Nominal input voltage (Udc,r): 600 V
- MPP voltage range (Umpp min – Umpp max): 270 – 800 V
- Usable MPP voltage range: 200 - 800 V
- Number of DC ports: 3 + 3
- Max. photovoltaic generator power (Pdc max): 15 kWpeak
OUTPUT DATA
- Rated AC power (Pac,r): 10 kW
- Max. output power (Pac max): 10 kVA
- AC output current (Iac nom): 14.4 A
- Mains connection (Uac,r): 3~ NPE 400/230, 3~ NPE 380/220 V
- AC voltage range (Umin – Umax): 150 – 280 V
- Frequency (fr): 50 / 60 Hz
- Frequency range (fmin - fmax): 45 - 65 Hz
- Non-linear distortion factor: <3% @Pnom (230/400 VAC 50 Hz)
- Power factor (cos ?ac,r): 0 - 1 ind,/cap,
GENERAL DATA
- Dimensions / width: 510 mm
- Dimensions (height): 725 mm
- Dimensions (depth): 225 mm
- Weight: 32.1 kg
- Weight with packaging: 38.5 kg
- Protection class: IP 66
- Protection class: 1
- Overvoltage category (DC/AC) 1): 2 / 3
- Power consumption at night: < 1 W
- Cooling: Adjustable ventilation
- Installation: Indoor and outdoor installation
- Ambient temperature range: -25 °C to +60 °C
- Permissible humidity: 0 - 100 %
- Max. altitude above sea level 2): ??2,000 m / 3,400 m
- DC connection technology: 6x DC+ and 6x DC- 2.5-16 mm2 screw terminals
- AC connection technology: 5-pin AC screw terminals 2.5-16 mm2
- Existing certifications and standards met: IEC 62109-1/-2, IEC 62116, IEC 61727, VDE 0126-1-1/A1, VDE AR-N 4105, G98/1, G99/1, AS/NZS 4777.2 , UNE 206007-1, CEI 0-21, CEI 0-16, NRS 097-2-1, TOR Generator Type A, EN 50549-1/-2, IEC 61683, IEC60068

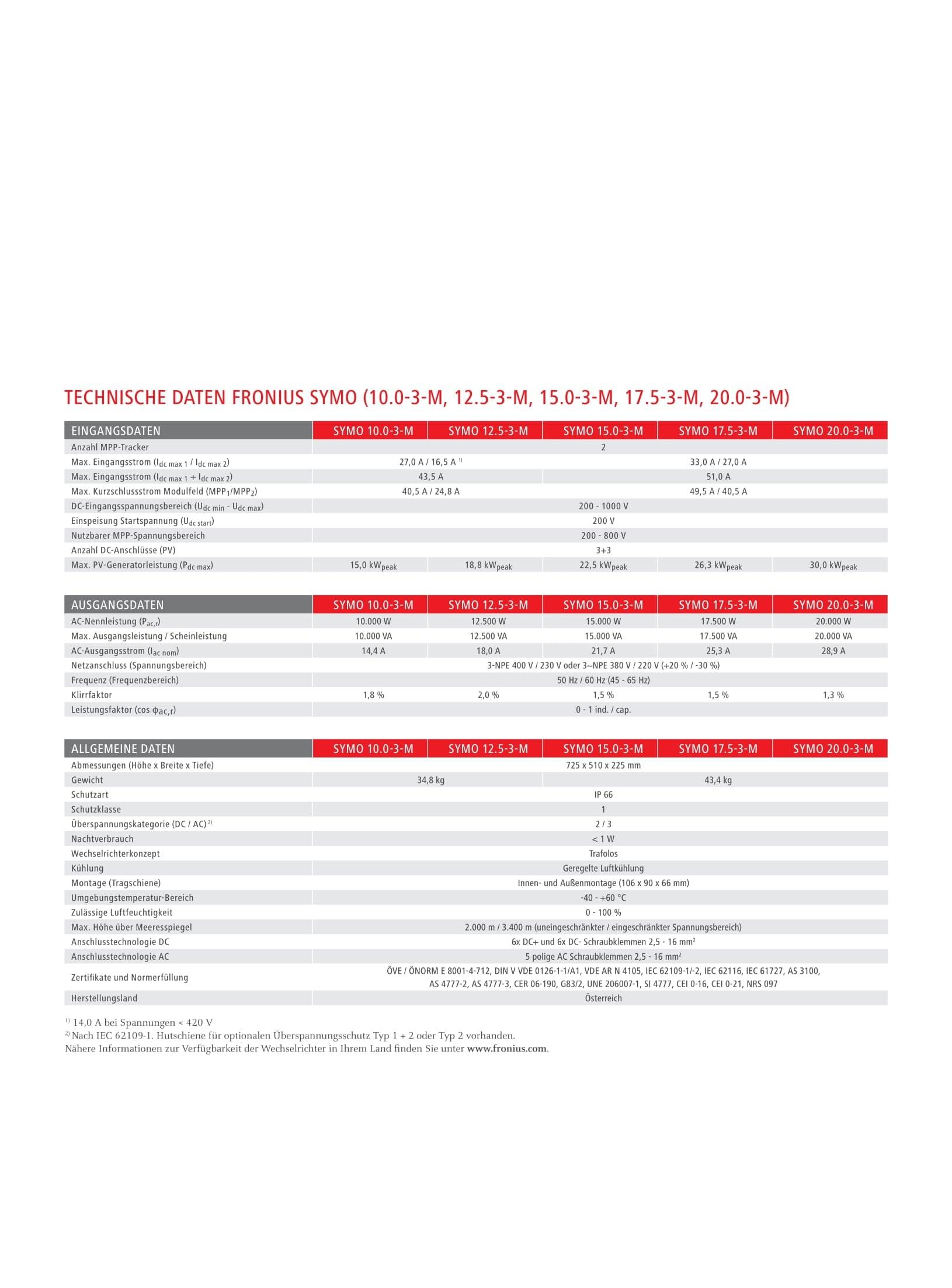

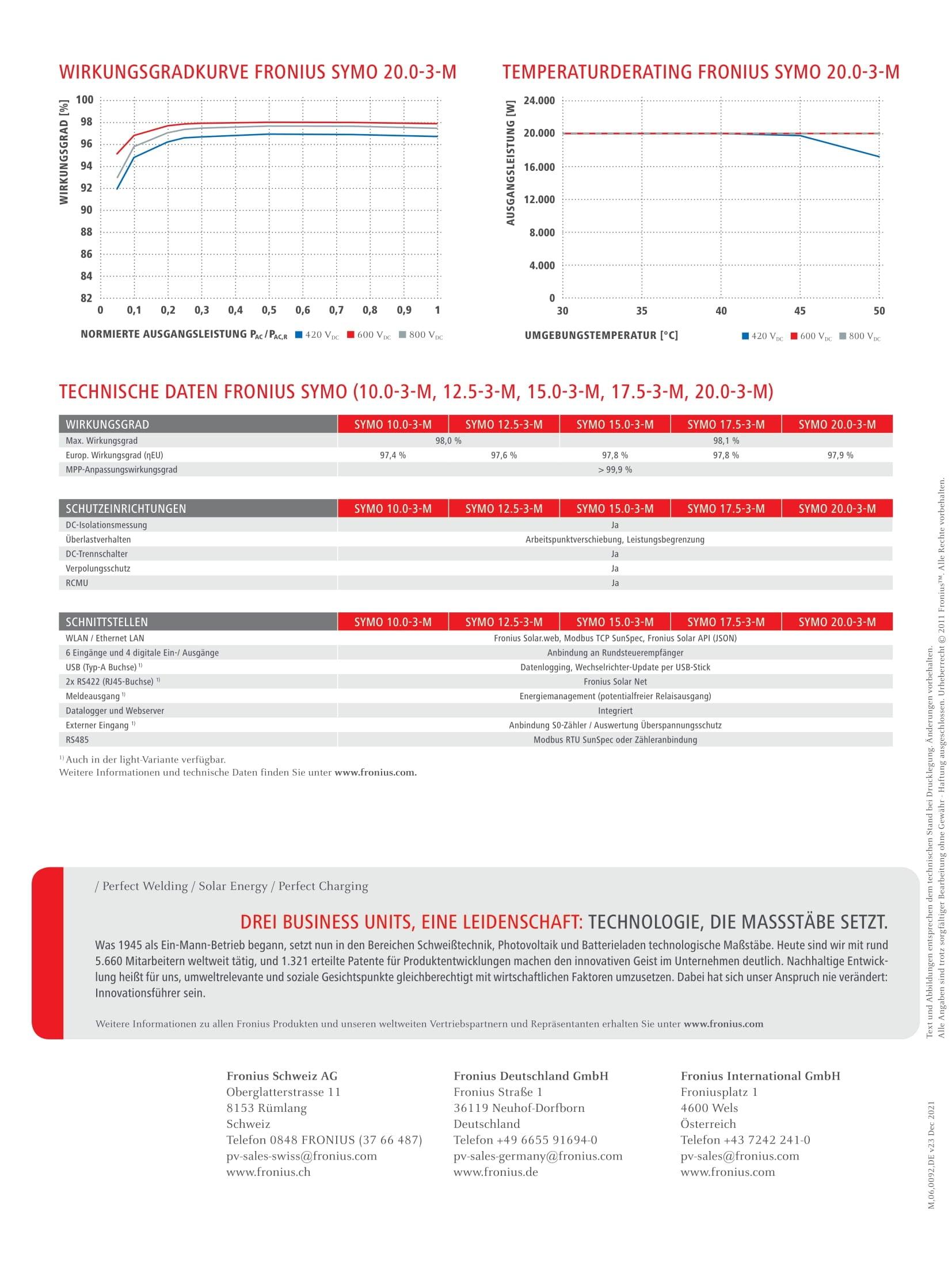

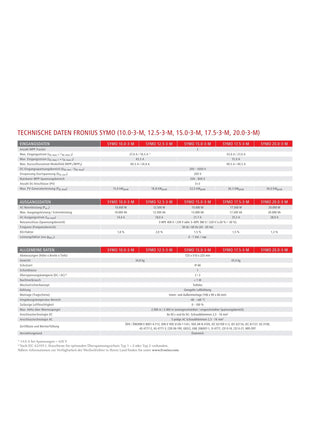

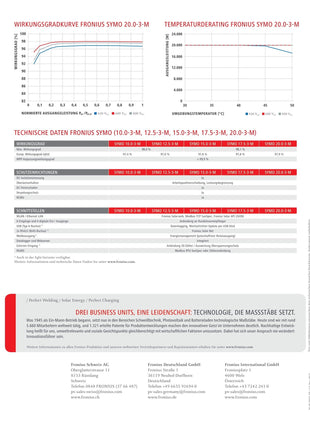

PERFORMANCE COEFFICIENT
- Max. efficiency (photovoltaic system – grid): 97.8%
- European efficiency factor (?EU): 95.5 / 97.1 / 96.3 %
- MPP adjustment efficiency: >99.9%.
PROTECTION
- DC insulation measurement: Yes
- Overload behavior: operating point shift, power limitation
- DC disconnect switch: Yes
- DC reverse polarity protection: Yes
- Arc detection – AFCI (Fronius Arc Guard): Yes
CONNECTIONS
-WLAN / Ethernet LAN: Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON)
-6 inputs and 4 digital inputs/outputs: connection to remote control receiver, power management
-USB (Type A socket) 4): Data logging, update of inverters via USB stick
-2x RS422 (RJ45 socket) 4): Fronius Solar Net
-Signal output 4): Energy management (potential-free relay output)
-Data logger and web server: Integrated
-External input 4): S0 counter connection / overvoltage protection monitoring
-RS485: Connection Modbus RTU SunSpec or energy meter
