Trina Vertex S+ TSM-440NEG9RC.27 datasheet

TrinaSolar Solar Modules User Manual

Solar module - Trina Vertex
S+ TSM-445NEG9RC.27

• rated power: 445 Wp, with a power tolerance of +5 Wp.
• module type: Monocrystalline double glass module, bifacial
• bifacial design: This module is bifacial, which means it can capture sunlight from both sides to increase energy production
  increase.
• back sheet: Transparent
• cell technology: The module consists of 144 monocrystalline cells arranged in a 24 x 6
  cell configuration.Trina Vertex technology with
  210 mm half-cells
• module efficiency: 22.3%
• voltage and current: The nominal voltage (Umpp) is 44.3 V and the nominal current (Impp) is 10.05 A. The maximum system voltage is 1500 V.
• temperature coefficient: The temperature coefficient of Isc is 0.04 %/K, of Pmpp -0.3 %/K and
  of Uoc -0.29 %/K.
• construction: Glass-glass, black frame design
• efficiency: 22.3%
• technology: N type TopCon technology
• voltage compatibility: Suitable for high-voltage systems up to 1500V DC
• fitness: Suitable for overhead glazing, high stability
• Thermal behavior: Improved performance at high temperatures
• cell configuration: The module consists of 144 monocrystalline cells arranged in a 24 x 6 cell configuration.
• Dimensions: It measures 1762 mm in length, 1134 mm in width and 30 mm in height.
• Weight: The module weighs about 21 kg.
• connection type: It uses the MC4 Evo 2 connection system.
• frame and construction: It features a sturdy anodized black aluminum frame and a double glass design with a transparent back.
• warranty and certification: The product comes with a 25-year performance guarantee and is PID-free. It also has CE certification.

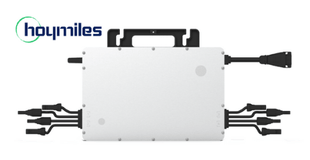

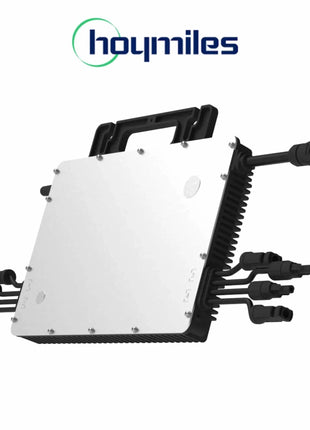

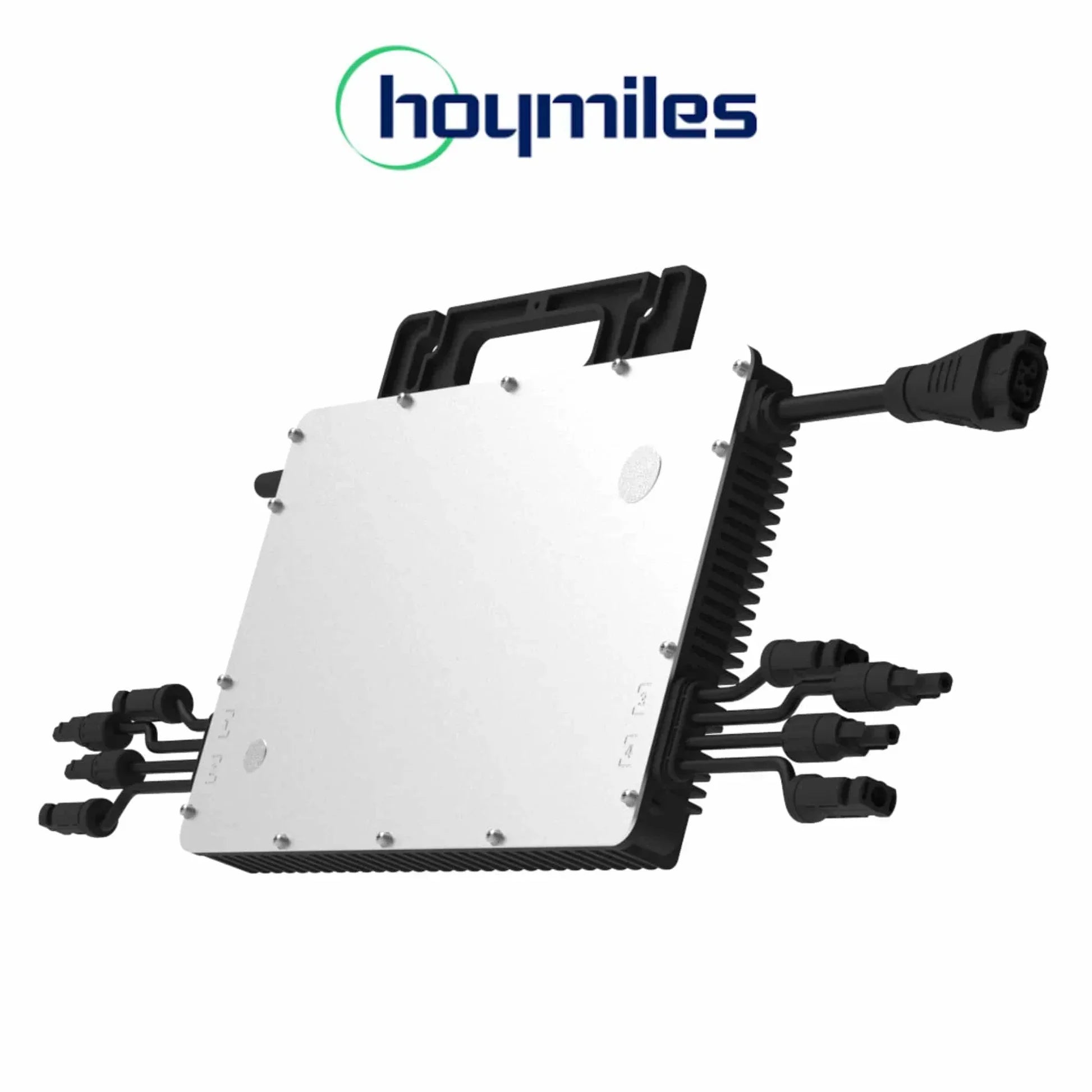

Hoymiles HMS-1600-4T

• Maximum output power: The inverter has a peak output power of 1600 VA and a maximum continuous output of 1440 VA.
• Dimensions: It measures 331 × 218 × 36.6 mm.
• Maximum input voltage: The maximum input voltage is 65 V.
• MPPT voltage range: The MPPT voltage range is between 16 V and 60 V.
• Maximum input current: The maximum input current is 4 × 14 A.
• number of connected modules:
  The inverter can connect up to four modules.
• Weight: 1.75 kg.
• operating temperature range: -40 °C to +65 °C.
• protection class: IP67 - suitable for outdoor use and adverse weather conditions.
• cooling: Cooling occurs naturally, without active cooling elements.
• Compatibility and Security: The inverter complies with EN 50549-1:2019, VDE-AR-N 4105:2018, VFR2019 and other standards. It also offers high operational reliability through fast shutdown and an isolated transformer.
• communication: A new Sub-1G radio solution enables more stable communication with the Hoymiles gateway
  DTU.
• Easy installation and maintenance:
  Due to its 4-in-1 design, it allows for faster installation and comes at a lower cost.
