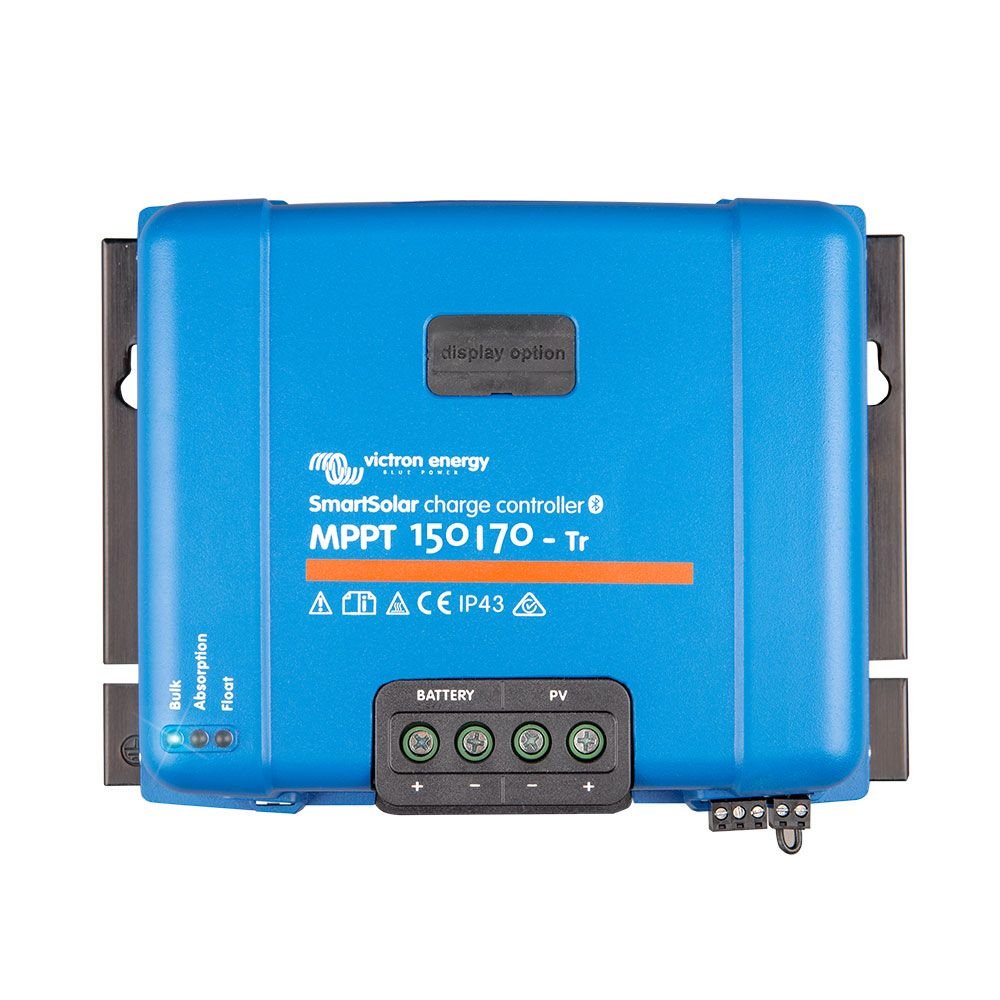

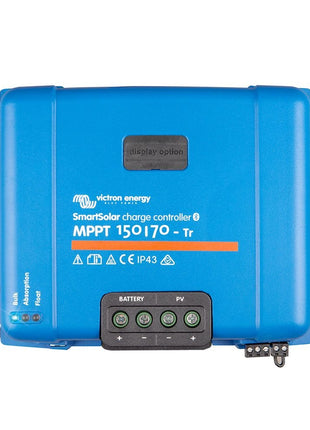

The Smartsolar MPPT 150/70-tr from Victron Energy (MPN SCC115070210) belongs to the latest generation of smart solar controllers from the Dutch premium manufacturer and processes a whopping 70A of solar power and can work flexibly with 12/24/36/48 V batteries. Ultra-fast power tracking and automatic power point detection in the event of partial shading are just two of the many highlights of this new class of device. The SmartSolar 150/70-tr is also available as a version with MC4 connections on the solar side of the charge controller instead of screw terminals. This model can also be operated in parallel with other controllers of the same type.

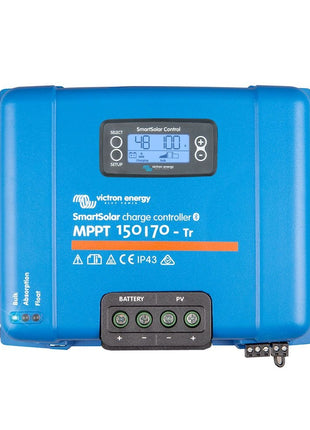

In comparison to the BlueSolar series, the Bluetooth module in the Smartsolar family is already integrated into the controller, which makes the Smart Dongle superfluous with this device. Also new is the optionally available LCD display, which can simply be plugged onto the SmartSolar 150/70-tr when required. The display then provides all the important information about the controller. If required, the MPPT WireBox-L Tr from Victron Energy is the ideal addition to your SmartSolar charge controller . It safely covers the cable inputs and the connection terminals of the controller, thus protecting them from external influences and contact.
Key product features of the SmartSolar 150/70-tr 70A 12V 24V 36V 48V MPPT
- Ultra-fast MPP tracker of the latest generation ensures the best possible yield even under overcast skies
- Nominal charging current 70A, 150V maximum PV open circuit voltage
- maximum PV power: 12 V 1000 W / 24 V 2000 W / 48 V 4000 W
- Victron Energy Part Number (MPN): SCC115070210
- Automatic detection of the MPP voltage in partial shading ensures a further improvement in yield compared to "simple" MPPT charge controllers
- with optional LCD display
- Built-in Bluetooth module for app-based analysis and configuration of the controller (via free Victron app on compatible devices)
- optional LCD display available
- Integrated VE.Direct data communication port for connection to additional devices such as the GX Color Control Panel or a Smart BMV battery monitor
- high maximum efficiency of 98%
- Parallel operation with other 150/70-tr controllers possible
- adjustable constant charging voltage
- adjustable trickle charge voltage
- suitable for all AGM, GEL, lead-acid calcium-calcium and lithium batteries
- Fully programmable charging algorithms that can later be manually activated and switched via a switch on the housing
- integrated protection against battery polarity reversal
- multi-stage and adaptive charging algorithm
- Remote controlled switching on and off possible via 2-pin plug
- Protection class IP 43 for the electronic components and protection class IP 22 for the connection area of the controller
- Integrated temperature sensor balances maintenance and constant charge voltage according to temperature
- Day/night time control and light dimming option
Smart data communication via VE.Direct and lightning-fast Bluetooth
Modern Apple and Android smartphones, tablets, Macbooks and other devices can be connected thanks to the integrated Bluetooth module and the free Victron Connect APP. The app can then be used to configure many important functions of the MPPT 150/70-tr SmartSolar controller. Of course, it also provides all important parameters such as the current solar yield in real time.
Automatic detection of the maximum power point in case of partial shading
In case of partial shading, there may be two or more maximum power points ( MPP ) on the current-voltage curve. Conventional MPPTs tend to adjust to a local MPP . However, this may not be the optimal MPP . The innovative algorithm of the SmartSolar 150/70-tr will always maximize the energy yield by adjusting to the optimal MPP .
High-speed MPP tracker of the latest generation
Especially under overcast skies, when the light intensity is constantly changing, an extremely fast MPPT controller improves energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Comprehensive electronic protection
- Protection against reversed battery connection
- PV backflow preventer
- Protection against overheating of the device
- Protection against short circuits
- Protection against reversed PV connection
The VE.Direct data communication port
VE.Direct in text mode transmits all important parameters every second to other devices that are linked to the charge controller and thus offers the possibility of communication with additional devices Systempanel GX Color Control. The VE.Direct connection is intended for products where full Canbus integration (VE-Direct) would be too expensive. You can find more information about VE.Direct in our Victron Energy brand shop.
Scope of delivery
1x Victron SCC115070210 SmartSolar MPPT 150/70-tr 12V 24V 36V 48V 70A charge controller
User manual
