Description

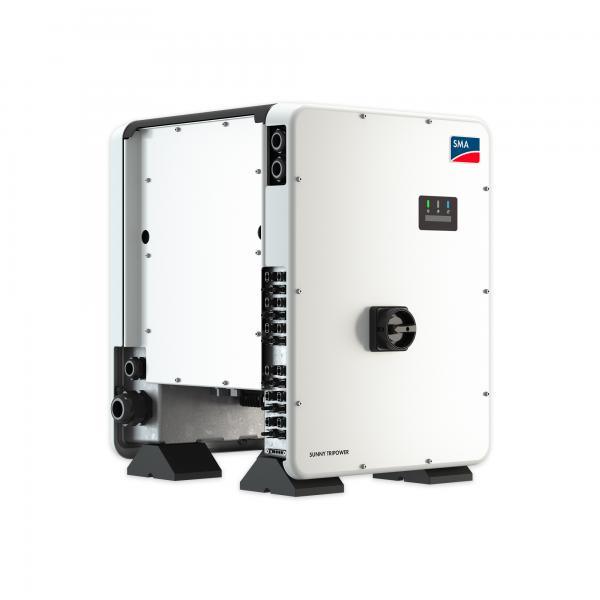

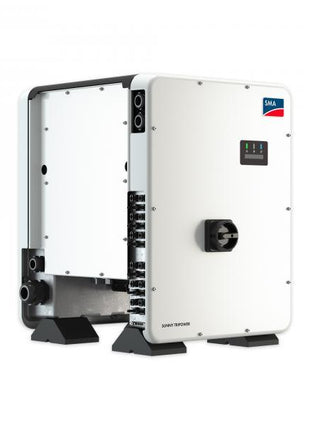

The Sunny Tripower CORE1 is the world's first free-standing string inverter for decentralized rooftop and open-space systems as well as covered parking spaces. The CORE1 is the 3rd generation of the successful Sunny Tripower product line and is revolutionizing the world of commercial inverters with its innovative concept. The SMA engineers' goal was to combine a unique design and an innovative installation method in order to significantly increase the installation speed and achieve an optimal return on investment for all target groups. From delivery to installation and operation, the Sunny Tripower CORE1 enables comprehensive cost savings in logistics, labor, materials and service. Commercial PV installations are now faster, safer and easier to implement than ever before.
Cost-effective
- Freestanding unit with minimal installation effort
- No DC fuses required
- Integrated DC isolator switch
Consistently integrated
- Integrated WiFi access with any mobile device
- 12 direct string inputs reduce labor and material costs
- AC/DC surge protection (optional) • Arc protection function (AFCI)
Shortest installation time
- Fast grid connection through simple inverter configuration and commissioning
- Optimally accessible connection areas
Maximum returns
- • Up to 150% oversizing of the PV generator
- Increased yield without installation effort thanks to integrated shading management SMA ShadeFix
Technical features
|
MPP voltage range
|
500 - 800V
|
|
Open circuit voltage
|
1,000V
|
|
Max. input current per MPP tracker
|
120A
|
|
Number of MPP trackers
|
6
|
|
AC rated power
|
50,000W
|
|
Number of feed-in phases
|
3
|
|
dimension
|
569x733x621mm
|
Guarantee / Warranty
|
guarantee
|
5 year manufacturer warranty
- Note: The maximum warranty period is 15
|
