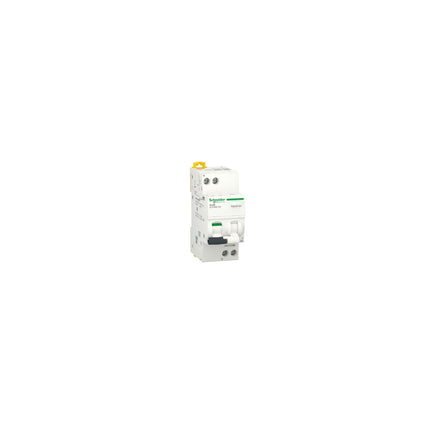

Schneider Electric (RCBO) Acti9 ICV40N - 1P+N - C40 - 6000A - A Type - 30mA

Description

This ACTI9 ICV40 is a modular fault current control switch with a built-in overflow protection device (RCBO). It is a 1P+N control switch with 1 protected POL, a 40 A in-line current and triggering line C. The earth's protective protection class is type A with the earth's sensitivity of 30 mA. Earth closure protection without a time delay. The ICN short-circuit navigation is up to 6000 A in accordance with standard EN/IEC 61009-2-1.

This product protects short circuit, cable overload, electrical blow through indirect contact and fire. Its two unique visitrip indicators reduce the intervention time by displaying the faulty circuit and quickly identifying the error type. The green visit strip guarantees the physical opening of the contacts to enable downstream maintenance. This product corresponds to the standard EN/IEC 61009-2-1. It has an electric lifespan of up to 10,000 cycles and a mechanical lifespan of up to 20,000 cycles.

The UE operating voltage is 230 VAC. The UI-nitolation voltage is 400 VAC. The UIMP incineration resistance is 4 kv. The frequency can be assembled 50/60 Hz. The width in 9 mm distances is 4. The product color is white (RAL 9003). The dimensions are (b) 36 mm x (h) 85 mm x (t) 73 mm. The weight is 210 g. The type of protection is IP20. This increases to IP40 in modular housing in accordance with standard IEC/EN 60529. The operating temperature is between -25 ° C and 60 ° C. The storage temperature is between -40 ° C and 85 ° C.

Schneider Electric (RCBO) Acti9 ICV40N - 1P+N - C40 - 6000A - A Type - 30mA

Product shape
Free collection in Our business (e)
  • In stock - in 2 to 3 working days with you

€191,59 VAT included

    • Guaranteed safer & protected Check out.

      klarna
    • Free Shipping for all orders over € 39 (except freight goods).
    • 30 days Money-back guarantee
    • Own warehouse At the company headquarters
    🌳 Environmentally friendly to your front door!

    We send CO₂-neutral and use sustainable materials-as far as technically possible.

    So your order arrives in an environmentally conscious and responsible manner.

    📦 Our shipping promise to you!

    Orders can be returned or exchanged within 30 days of receipt of the delivery if they are in an original state.

    We deliver across Europe. Your order will be carefully packed and delivered to the desired location.

    The delivery lasts Between 2 and 5 working days Depending on the type of shipping.

    Sku: EL-SE-ACT9-ICV40N-1P-C40-30MA-A-009
    Barcode: 3606480701078

    Description

    This ACTI9 ICV40 is a modular fault current control switch with a built-in overflow protection device (RCBO). It is a 1P+N control switch with 1 protected POL, a 40 A in-line current and triggering line C. The earth's protective protection class is type A with the earth's sensitivity of 30 mA. Earth closure protection without a time delay. The ICN short-circuit navigation is up to 6000 A in accordance with standard EN/IEC 61009-2-1.

    This product protects short circuit, cable overload, electrical blow through indirect contact and fire. Its two unique visitrip indicators reduce the intervention time by displaying the faulty circuit and quickly identifying the error type. The green visit strip guarantees the physical opening of the contacts to enable downstream maintenance. This product corresponds to the standard EN/IEC 61009-2-1. It has an electric lifespan of up to 10,000 cycles and a mechanical lifespan of up to 20,000 cycles.

    The UE operating voltage is 230 VAC. The UI-nitolation voltage is 400 VAC. The UIMP incineration resistance is 4 kv. The frequency can be assembled 50/60 Hz. The width in 9 mm distances is 4. The product color is white (RAL 9003). The dimensions are (b) 36 mm x (h) 85 mm x (t) 73 mm. The weight is 210 g. The type of protection is IP20. This increases to IP40 in modular housing in accordance with standard IEC/EN 60529. The operating temperature is between -25 ° C and 60 ° C. The storage temperature is between -40 ° C and 85 ° C.
