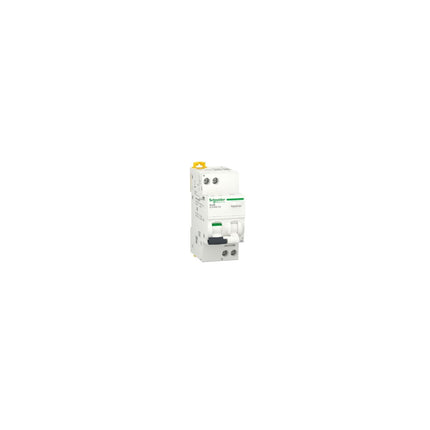

Schneider Electric (RCBO) Acti9 iCV40N - 1P+N - C20 - 6000A - A Type - 30mA

    Description

    This Acti9 iCV40 is a modular residual current device with built-in overcurrent protection device (RCBO). It is a 1P+N circuit breaker with 1 protected pole, a 20 A In rated current and tripping characteristic C. The earth fault protection class is type A with earth fault sensitivity of 30 mA. Earth fault protection without time delay. The Icn short-circuit breaking capacity is up to 6000 A according to EN/IEC 61009-2-1. This product protects against short circuit, cable overload, electric shock from indirect contact and fire hazards.

    Its two unique VisiTrip indicators reduce intervention time by indicating the faulty circuit and quickly identifying the type of fault. The green VisiSafe strip guarantees the physical opening of the contacts to allow downstream maintenance. This product complies with EN/IEC 61009-2-1. It has an electrical life of up to 20,000 cycles and a mechanical life of up to 20,000 cycles. The Ue operating voltage is 230 VAC. The Ui rated insulation voltage is 400 VAC. The Uimp rated impulse withstand voltage is 4 kV. The frequency is 50/60 Hz. DIN rail mountable. The width in 9 mm pitches is 4. The product color is white (RAL 9003).

    The dimensions are (W) 36 mm x (H) 85 mm x (D) 73 mm. The weight is 210 g. The protection class is IP20. This increases to IP40 in modular housing according to IEC/EN 60529. The operating temperature is between -25 °C and 60 °C. The storage temperature is between -40 °C and 85 °C.

    Schneider Electric (RCBO) Acti9 iCV40N - 1P+N - C20 - 6000A - A Type - 30mA

      Product form
      Free pickup in our shop(s)

      €170,17 Incl. VAT

      In stock - with you in 2 to 3 working days
        If you are within 10 Stdn. 50 Min. order
        Ordered
        Today
        Shipped
        Delivered
        Free Shipping

        from 39€*

        German company

        Shipping from Würzburg

        Personal service 24/7

        We are happy to help you with any questions

        30 days return policy

        Risk-free thanks to satisfaction guarantee

        SKU: EL-SE-ACT9-ICV40N-1P-C20-30MA-A-006
        Barcode: 3606480701061

        Specifications

        FAQ

        Here you can find our FAQs

        Description

        This Acti9 iCV40 is a modular residual current device with built-in overcurrent protection device (RCBO). It is a 1P+N circuit breaker with 1 protected pole, a 20 A In rated current and tripping characteristic C. The earth fault protection class is type A with earth fault sensitivity of 30 mA. Earth fault protection without time delay. The Icn short-circuit breaking capacity is up to 6000 A according to EN/IEC 61009-2-1. This product protects against short circuit, cable overload, electric shock from indirect contact and fire hazards.

        Its two unique VisiTrip indicators reduce intervention time by indicating the faulty circuit and quickly identifying the type of fault. The green VisiSafe strip guarantees the physical opening of the contacts to allow downstream maintenance. This product complies with EN/IEC 61009-2-1. It has an electrical life of up to 20,000 cycles and a mechanical life of up to 20,000 cycles. The Ue operating voltage is 230 VAC. The Ui rated insulation voltage is 400 VAC. The Uimp rated impulse withstand voltage is 4 kV. The frequency is 50/60 Hz. DIN rail mountable. The width in 9 mm pitches is 4. The product color is white (RAL 9003).

        The dimensions are (W) 36 mm x (H) 85 mm x (D) 73 mm. The weight is 210 g. The protection class is IP20. This increases to IP40 in modular housing according to IEC/EN 60529. The operating temperature is between -25 °C and 60 °C. The storage temperature is between -40 °C and 85 °C.
