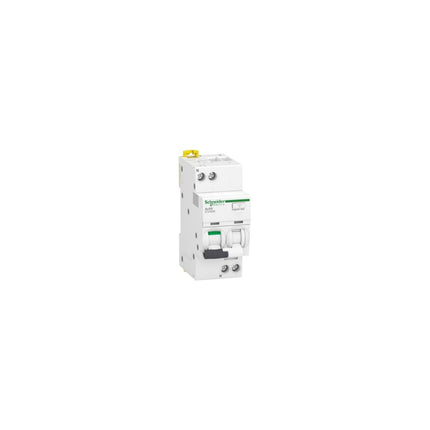

Schneider Electric (RCBO) Acti9 ICV40N - 1P+N - C20 - 6000A - A -SI Type - 30mA

Description

This ACTI9 ICV40 is a modular residual current circuit breaker with overflow protection (RCBO). It is a 1P+N line control switch with 1 protected pole, a nominal current strength of 20A and a C-extermination. The residual current protection device belongs to class A-SI with a sensitivity of 30mA. The time delay for residual current protection is immediately. The rated short-circuit circuit limit (ICN) is up to 6000A in accordance with the standard EN/IEC 61009-2-1. This product protects short circuits, cable overloads, electrical blows through indirect contact and fire.

The 2 unique visitrip indicators reduce the intervention time by displaying the faulty circuit and quickly identifying the error. The Green Strip's Visisafe ensures the physical opening of the contacts in order to enable downstream maintenance work. This product corresponds to the standard EN/IEC 61009-2-1. It has an electric lifespan of up to 20,000 cycles and a mechanical lifespan of up to 20,000 cycles. The operating voltage (UE) is 230VAC. The rated insulation voltage (UI) is 400VAC.

The evaluated impulse voltage strength (UIMP) is 4KV. The frequency is 50/60Hz. It can be assembled on a DIN rail. The width in 9mm steps is 4. The product color is white (RAL9003). The dimensions are (b) 36mm x (h) 85mm x (t) 73mm. The weight is 210g. According to the IEC 60529 standard, the level of protection is IP20 and IP40 in the housing. The operating temperature is between -25 ° C and 60 ° C. The storage temperature is between -40 ° C and 85 ° C.

Schneider Electric (RCBO) Acti9 ICV40N - 1P+N - C20 - 6000A - A -SI Type - 30mA

Product shape
Free collection in Our business (e)
  • In stock - in 2 to 3 working days with you

€153,51 VAT included

    • Guaranteed safer & protected Check out.

      klarna
    • Free Shipping for all orders over € 39 (except freight goods).
    • 30 days Money-back guarantee
    • Own warehouse At the company headquarters
    🌳 Environmentally friendly to your front door!

    We send CO₂-neutral and use sustainable materials-as far as technically possible.

    So your order arrives in an environmentally conscious and responsible manner.

    📦 Our shipping promise to you!

    Orders can be returned or exchanged within 30 days of receipt of the delivery if they are in an original state.

    We deliver across Europe. Your order will be carefully packed and delivered to the desired location.

    The delivery lasts Between 2 and 5 working days Depending on the type of shipping.

    Sku: EL-SE-ACT9-ICV40N-1P-C20-30MA-A-SI-007
    Barcode: 3606480701061

    Description

    This ACTI9 ICV40 is a modular residual current circuit breaker with overflow protection (RCBO). It is a 1P+N line control switch with 1 protected pole, a nominal current strength of 20A and a C-extermination. The residual current protection device belongs to class A-SI with a sensitivity of 30mA. The time delay for residual current protection is immediately. The rated short-circuit circuit limit (ICN) is up to 6000A in accordance with the standard EN/IEC 61009-2-1. This product protects short circuits, cable overloads, electrical blows through indirect contact and fire.

    The 2 unique visitrip indicators reduce the intervention time by displaying the faulty circuit and quickly identifying the error. The Green Strip's Visisafe ensures the physical opening of the contacts in order to enable downstream maintenance work. This product corresponds to the standard EN/IEC 61009-2-1. It has an electric lifespan of up to 20,000 cycles and a mechanical lifespan of up to 20,000 cycles. The operating voltage (UE) is 230VAC. The rated insulation voltage (UI) is 400VAC.

    The evaluated impulse voltage strength (UIMP) is 4KV. The frequency is 50/60Hz. It can be assembled on a DIN rail. The width in 9mm steps is 4. The product color is white (RAL9003). The dimensions are (b) 36mm x (h) 85mm x (t) 73mm. The weight is 210g. According to the IEC 60529 standard, the level of protection is IP20 and IP40 in the housing. The operating temperature is between -25 ° C and 60 ° C. The storage temperature is between -40 ° C and 85 ° C.
