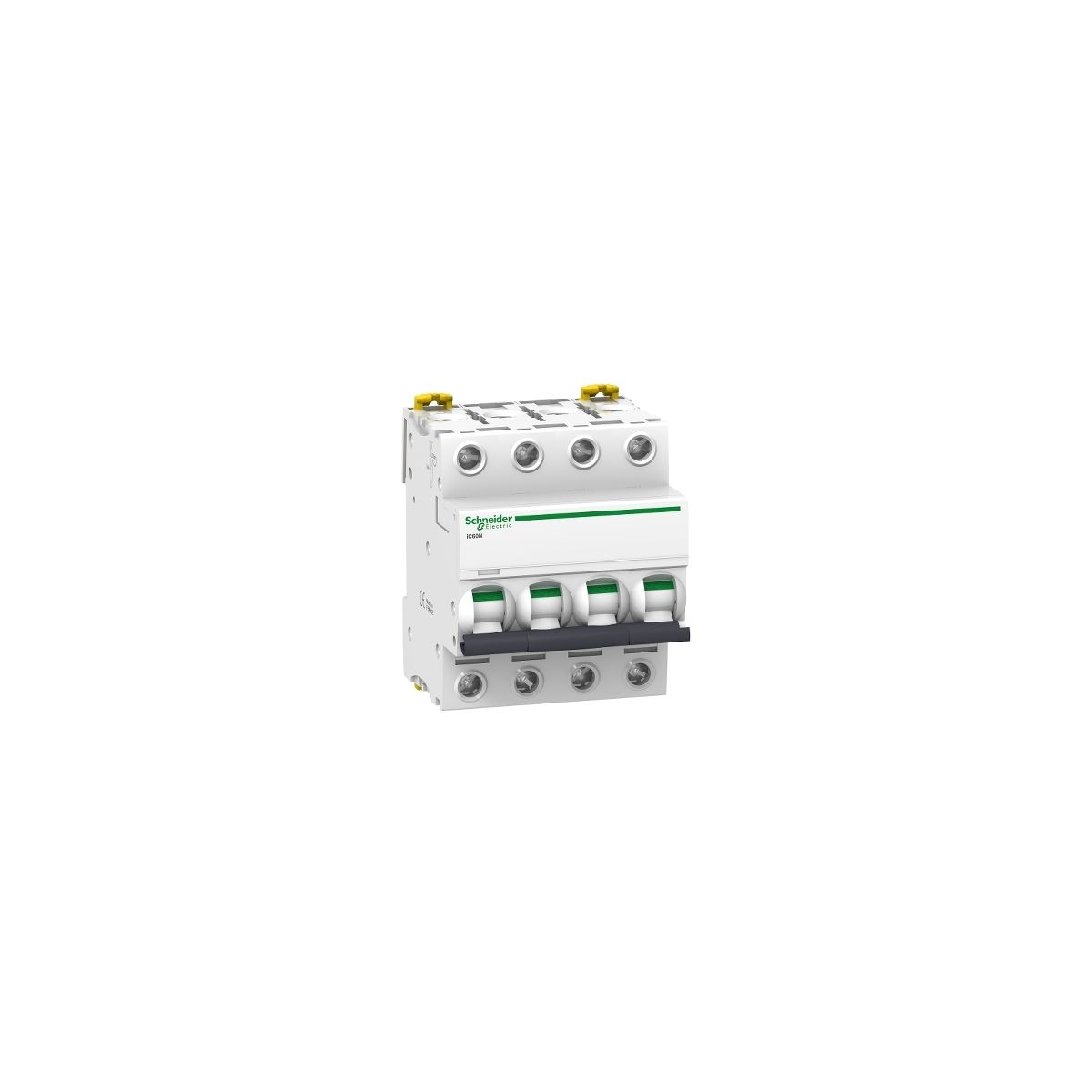

Schneider Electric (MCB) Acti9 IC60N - 4P - C20 - 6000A (IEC/EN 60898-1) - 10KA (IEC/EN 60947-2)

Description

This Acti9 IC60N is a low-voltage line control switch. It is a 4P system control switch with 4 protected Poland, a nominal current of 20 A and trigger characteristics C. The switch-off of this line protection switch is 6000 A at 400 VAC according to the standard EN/IEC 60898-1 (budget standard) and 20 KA at 220 VAC up to 240 VAC EN/IEC 60947-2 (industrial form).

This IC60N line protection switch corresponds to both the budget standard EN/IEC 60898-1 and industrial standard EN/IEC 60947-2. This line protection switch protects circuit circuits from short circuits and overload currents. The unique visitrip indicator shortens the search for the triggered line protection switch by clearly showing it. The green visit indicator guarantees the physical opening of the contacts to enable downstream maintenance.

The quick extinguishing mechanism extends the lifespan of this component. This Schneider Electric line control switch has an electric lifespan of up to 10,000 cycles and a mechanical lifespan of up to 20,000 cycles. The UI-nitolation voltage is 500 VAC. Lower costs for circuit protection thanks to restriction class 3 (in accordance with EN/IEC60898-1).

For modular installation on DIN rail. The width of this line circuit breaker is 4 modules of 18 mm each. The degree of pollution is 3 and the surge category IV. This product is designed in the color white (RAL 9003). The dimensions are 72 mm (W) x 85 mm (h) x 78.5 mm (T). The weight is 0.5 kg.

According to the IEC 60529 standard, the protection class IP20 is. This increases to IP40 in assembly in a modular housing with insulating class II. The operating temperature is between -35 ° C and 70 ° C. The storage temperature is between -40 ° C and 85 ° C.

Schneider Electric (MCB) Acti9 IC60N - 4P - C20 - 6000A (IEC/EN 60898-1) - 10KA (IEC/EN 60947-2)

Product shape
Free collection in Our business (e)
  • In stock - in 2 to 3 working days with you

€110,67 VAT included

    • Guaranteed safer & protected Check out.

      klarna
    • Free Shipping for all orders over € 39 (except freight goods).
    • 30 days Money-back guarantee
    • Own warehouse At the company headquarters
    🌳 Environmentally friendly to your front door!

    We send CO₂-neutral and use sustainable materials-as far as technically possible.

    So your order arrives in an environmentally conscious and responsible manner.

    📦 Our shipping promise to you!

    Orders can be returned or exchanged within 30 days of receipt of the delivery if they are in an original state.

    We deliver across Europe. Your order will be carefully packed and delivered to the desired location.

    The delivery lasts Between 2 and 5 working days Depending on the type of shipping.

    Description

    This Acti9 IC60N is a low-voltage line control switch. It is a 4P system control switch with 4 protected Poland, a nominal current of 20 A and trigger characteristics C. The switch-off of this line protection switch is 6000 A at 400 VAC according to the standard EN/IEC 60898-1 (budget standard) and 20 KA at 220 VAC up to 240 VAC EN/IEC 60947-2 (industrial form).

    This IC60N line protection switch corresponds to both the budget standard EN/IEC 60898-1 and industrial standard EN/IEC 60947-2. This line protection switch protects circuit circuits from short circuits and overload currents. The unique visitrip indicator shortens the search for the triggered line protection switch by clearly showing it. The green visit indicator guarantees the physical opening of the contacts to enable downstream maintenance.

    The quick extinguishing mechanism extends the lifespan of this component. This Schneider Electric line control switch has an electric lifespan of up to 10,000 cycles and a mechanical lifespan of up to 20,000 cycles. The UI-nitolation voltage is 500 VAC. Lower costs for circuit protection thanks to restriction class 3 (in accordance with EN/IEC60898-1).

    For modular installation on DIN rail. The width of this line circuit breaker is 4 modules of 18 mm each. The degree of pollution is 3 and the surge category IV. This product is designed in the color white (RAL 9003). The dimensions are 72 mm (W) x 85 mm (h) x 78.5 mm (T). The weight is 0.5 kg.

    According to the IEC 60529 standard, the protection class IP20 is. This increases to IP40 in assembly in a modular housing with insulating class II. The operating temperature is between -35 ° C and 70 ° C. The storage temperature is between -40 ° C and 85 ° C.
