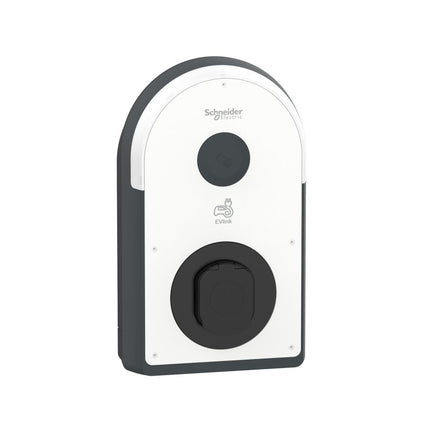

Schneider Electric Evink Pro AC, 22KW, 32A, 3P+N, T2S socket

Description

This evil Pro AC product is a wall-mounted charging station for all electric vehicles that corresponds to the IEC61851-1 standard. It can also be ground, either attached to a base or integrated into a kit housing. The base and kit housing must be ordered separately. It can be installed both indoors and outdoors. The IP protective degree is IP55. The IK protective degree is IK10. The operating temperature is between -30 ° C and 50 ° C. The storage temperature is between -40 ° C and 80 ° C.
The output type is a T2 socket with closure (T2S), which is attached to the front of the station. All contacts of the T2S socket are silver-plated to avoid overheating. The nominal output power is 22 kW. It is delivered three -phase (3P+N). The nominal charging current is 32 A at 380 V to 415 VAC with a frequency of 50 Hz to 60 Hz. It can be used with a TT, TN-S or TN-C-S earth-inheritance system. It is also IT compatible with an additional separator on the power supply.
The charging station is easy to install and put into operation. It is recommended at home and in fleet, on the street or at work. The dimensions are (b) 317 mm x (h) 529 mm x (t) 153 mm. The product weight is 7.2 kg. Its color is white (RAL9003). It has a built-in protection against error equivalent current with a 6-MA error-like current detection detection device (RDC-DD). For safety reasons, an MNX under-voltage resolution is also integrated in the charging station. In addition, it is necessary to meet the EV ready requirements. The charging station can be supplied via a cable that comes from behind, at the top or below. In order to charge an electric vehicle, access control is carried out via user authentication via RFID or NFC ID. The charging station can also be used for free access. The charging start can be delayed in a time delay. During the loading time, the performance can be limited to ensure operating continuity and optimize the loading time of all charging stations based on the same feed. It has 2 Ethernet RJ45 ports for the LAN connection. The parameters are set up via the Esetup app via Bluetooth or Ecostruxure EV Charging Expert. The charging station can be managed in an independent or in a cluster architecture. The communication protocol OCCP 1.6 is used to connect to the surveillance device. The available services are the charging line recordings, the diagnostic functions and load management. The charging station is CE and EV ready-certified. The firmware from Evink Pro AC is waited up to 2 years after the end of the marketing.







Schneider Electric Evink Pro AC, 22KW, 32A, 3P+N, T2S socket

Product shape
Free collection in Our business (e)
  • Order

€1.579,00 VAT included

    • Guaranteed safer & protected Check out.

      klarna
    • Free Shipping for all orders over € 39 (except freight goods).
    • 30 days Money-back guarantee
    • Own warehouse At the company headquarters
    🌳 Environmentally friendly to your front door!

    We send CO₂-neutral and use sustainable materials-as far as technically possible.

    So your order arrives in an environmentally conscious and responsible manner.

    📦 Our shipping promise to you!

    Orders can be returned or exchanged within 30 days of receipt of the delivery if they are in an original state.

    We deliver across Europe. Your order will be carefully packed and delivered to the desired location.

    The delivery lasts Between 2 and 5 working days Depending on the type of shipping.

    Description

    This evil Pro AC product is a wall-mounted charging station for all electric vehicles that corresponds to the IEC61851-1 standard. It can also be ground, either attached to a base or integrated into a kit housing. The base and kit housing must be ordered separately. It can be installed both indoors and outdoors. The IP protective degree is IP55. The IK protective degree is IK10. The operating temperature is between -30 ° C and 50 ° C. The storage temperature is between -40 ° C and 80 ° C.
    The output type is a T2 socket with closure (T2S), which is attached to the front of the station. All contacts of the T2S socket are silver-plated to avoid overheating. The nominal output power is 22 kW. It is delivered three -phase (3P+N). The nominal charging current is 32 A at 380 V to 415 VAC with a frequency of 50 Hz to 60 Hz. It can be used with a TT, TN-S or TN-C-S earth-inheritance system. It is also IT compatible with an additional separator on the power supply.
    The charging station is easy to install and put into operation. It is recommended at home and in fleet, on the street or at work. The dimensions are (b) 317 mm x (h) 529 mm x (t) 153 mm. The product weight is 7.2 kg. Its color is white (RAL9003). It has a built-in protection against error equivalent current with a 6-MA error-like current detection detection device (RDC-DD). For safety reasons, an MNX under-voltage resolution is also integrated in the charging station. In addition, it is necessary to meet the EV ready requirements. The charging station can be supplied via a cable that comes from behind, at the top or below. In order to charge an electric vehicle, access control is carried out via user authentication via RFID or NFC ID. The charging station can also be used for free access. The charging start can be delayed in a time delay. During the loading time, the performance can be limited to ensure operating continuity and optimize the loading time of all charging stations based on the same feed. It has 2 Ethernet RJ45 ports for the LAN connection. The parameters are set up via the Esetup app via Bluetooth or Ecostruxure EV Charging Expert. The charging station can be managed in an independent or in a cluster architecture. The communication protocol OCCP 1.6 is used to connect to the surveillance device. The available services are the charging line recordings, the diagnostic functions and load management. The charging station is CE and EV ready-certified. The firmware from Evink Pro AC is waited up to 2 years after the end of the marketing.
