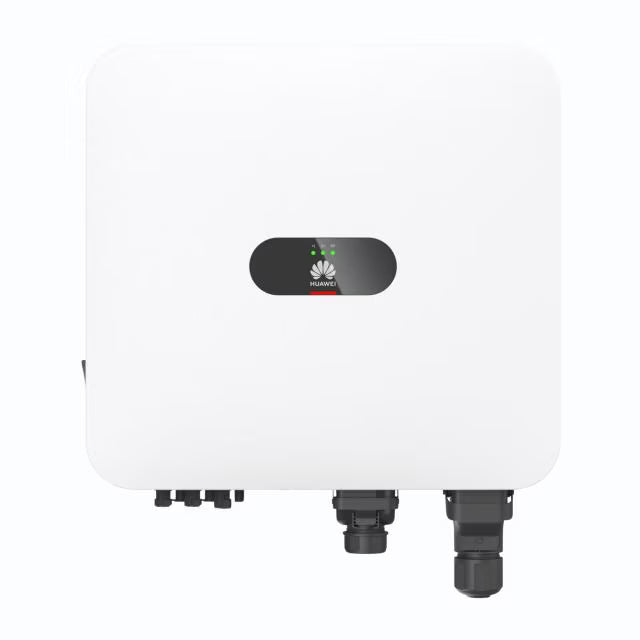

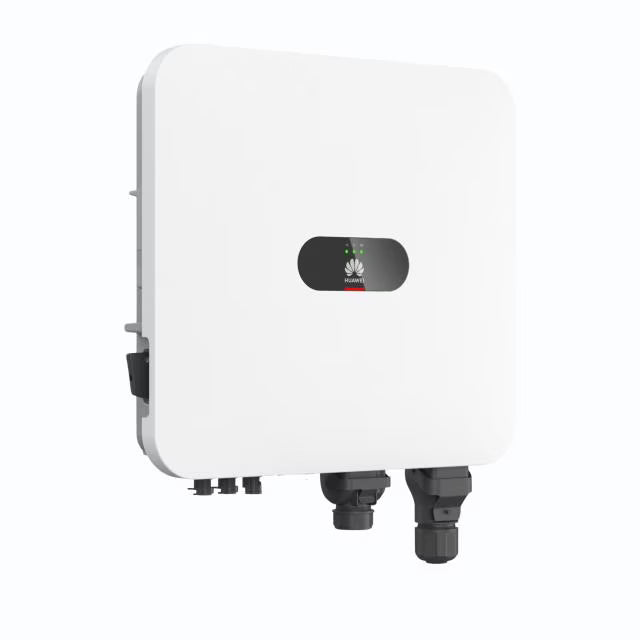

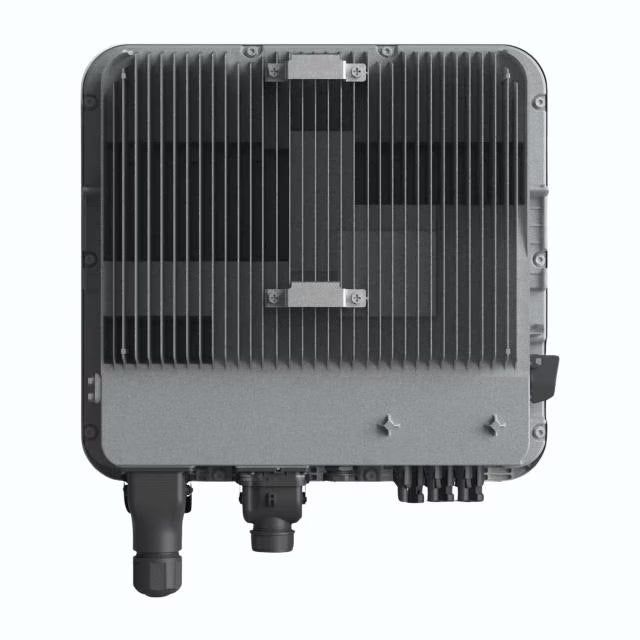

HUAWEI SUN2000-8K-MAP0

Description

The HUAWEI SUN2000-8K-MAP0 is a three-phase hybrid inverter from the MAP0 series that intelligently combines PV energy, battery storage and grid operation. It supports asymmetrical phase output so that each phase can be supplied as needed. The inverter has two MPPT inputs and offers active protection functions such as AFCI (arc interruption), over-voltage and polarity protection, and temperature monitoring on the connectors. It is compatible with the Huawei LUNA2000-S0/S1 storage systems and can be supplemented with SmartGuard for emergency power operation. The protection class IP66 allows outdoor use in frequent weather conditions. Monitoring and control are carried out via integrated WLAN, RS485 and optionally via 4G dongle with a connection to the FusionSolar platform.

  • Three-phase hybrid inverter with asymmetrical phase output
  • Comprehensive protection with AFCI, over-voltage and polarity protection
  • Compatible with Huawei LUNA2000 Storage & SmartGuard

The HUAWEI SUN2000-8K-MAP0 is a powerful 8 kW hybrid inverter with intelligent phase distribution and integrated protection mechanisms. It can be seamlessly integrated into PV storage systems and supports modern energy management functions.

Scope of delivery: 1x Huawei SUN2000-8K-MAP0 inverter

HUAWEI SUN2000-8K-MAP0

Product form
Free pickup in our shop(s)
  • Auf Lager - in 7 bis 14 Werktagen bei Dir

€1.432,00 Incl. VAT

    • Guaranteed safer & protected Check out.

      klarna
    • Free Shipping for all orders over € 39 (except freight goods).
    • 30 days Money-back guarantee
    • Own warehouse At the company headquarters
    🌳 Environmentally friendly to your front door!

    We send CO₂-neutral and use sustainable materials-as far as technically possible.

    So your order arrives in an environmentally conscious and responsible manner.

    📦 Our shipping promise to you!

    Orders can be returned or exchanged within 30 days of receipt of the delivery if they are in an original state.

    We deliver across Europe. Your order will be carefully packed and delivered to the desired location.

    The delivery lasts Between 2 and 5 working days Depending on the type of shipping.

    Technische Daten

    • System: Hybrid-Wechselrichter
    • Nennleistung: 8000 Watt
    • Topologie: trafolos
    • Anzahl MPPT: 2 Stück
    • MPP Spannung min: 400 Volt
    • MPP Spannung max: 850 Volt
    • DC-Anschluss: MC4
    • Netzanschluss: 3-phasig
    • Maße in mm: L: 490 mm B: 460 mm H: 130 mm
    • Gewicht: 21 kg

    SKU: SL-HW-MAP0-8K-0
    Barcode: 4262431424701

    Description

    The HUAWEI SUN2000-8K-MAP0 is a three-phase hybrid inverter from the MAP0 series that intelligently combines PV energy, battery storage and grid operation. It supports asymmetrical phase output so that each phase can be supplied as needed. The inverter has two MPPT inputs and offers active protection functions such as AFCI (arc interruption), over-voltage and polarity protection, and temperature monitoring on the connectors. It is compatible with the Huawei LUNA2000-S0/S1 storage systems and can be supplemented with SmartGuard for emergency power operation. The protection class IP66 allows outdoor use in frequent weather conditions. Monitoring and control are carried out via integrated WLAN, RS485 and optionally via 4G dongle with a connection to the FusionSolar platform.

    • Three-phase hybrid inverter with asymmetrical phase output
    • Comprehensive protection with AFCI, over-voltage and polarity protection
    • Compatible with Huawei LUNA2000 Storage & SmartGuard

    The HUAWEI SUN2000-8K-MAP0 is a powerful 8 kW hybrid inverter with intelligent phase distribution and integrated protection mechanisms. It can be seamlessly integrated into PV storage systems and supports modern energy management functions.

    Scope of delivery: 1x Huawei SUN2000-8K-MAP0 inverter
