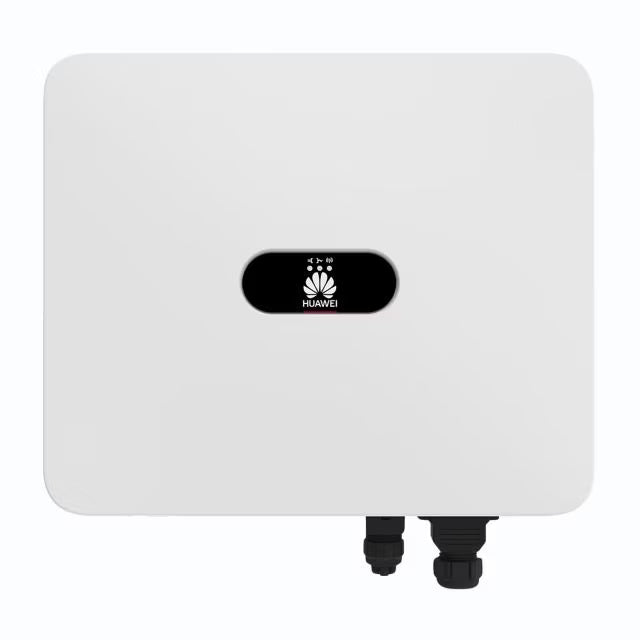

HUAWEI SUN2000-20K-MB0

Description

The HUAWEI SUN2000-20K-MB0 is a three-phase hybrid inverter (Smart Energy Controller) with 20 kW rated power that combines PV energy, battery storage and grid integration. It has two MPPT inputs and enables the integration of Huawei LUNA storage systems via integrated battery terminals. The inverter offers active safety features such as AFCI (active arc detection), over-voltage and over-current protection, and residual current monitoring. With protection class IP66, use outdoors is also possible. Cooling takes place using Smart Air Cooling, and communication takes place via RS485, WLAN/Ethernet (via dongle) or optionally 4G. Configuration and monitoring runs via the FusionSolar platform.

  • 20 kW three-phase hybrid inverter with integrated battery support
  • Active safety features such as AFCI and surge protection
  • Weatherproof design (IP66) and Smart Air Cooling

The HUAWEI SUN2000-20K-MB0 is a powerful 20 kW hybrid inverter with integrated storage capability and comprehensive protection functions. It is suitable for combination with PV systems and Huawei LUNA storage solutions and allows modern energy management strategies.

Scope of delivery: 1x Huawei SUN2000-20K-MB0 inverter

HUAWEI SUN2000-20K-MB0

Product form
Free pickup in our shop(s)
  • Auf Lager - in 7 bis 14 Werktagen bei Dir

€2.500,99 Incl. VAT

    • Guaranteed safer & protected Check out.

      klarna
    • Free Shipping for all orders over € 39 (except freight goods).
    • 30 days Money-back guarantee
    • Own warehouse At the company headquarters
    🌳 Environmentally friendly to your front door!

    We send CO₂-neutral and use sustainable materials-as far as technically possible.

    So your order arrives in an environmentally conscious and responsible manner.

    📦 Our shipping promise to you!

    Orders can be returned or exchanged within 30 days of receipt of the delivery if they are in an original state.

    We deliver across Europe. Your order will be carefully packed and delivered to the desired location.

    The delivery lasts Between 2 and 5 working days Depending on the type of shipping.

    Technische Daten

    • System: Hybrid-Wechselrichter
    • Nennleistung: 20000 Watt
    • Topologie: trafolos
    • Anzahl MPPT: 2 Stück
    • MPP Spannung min: 480 Volt
    • MPP Spannung max: 800 Volt
    • DC-Anschluss: MC4
    • Netzanschluss: 3-phasig
    • Maße in mm: L: 460 mm B: 546 mm H: 228 mm
    • Gewicht: 21 kg

    SKU: SL-HW-MB0-20K-0
    Barcode: 5904905316400

    Description

    The HUAWEI SUN2000-20K-MB0 is a three-phase hybrid inverter (Smart Energy Controller) with 20 kW rated power that combines PV energy, battery storage and grid integration. It has two MPPT inputs and enables the integration of Huawei LUNA storage systems via integrated battery terminals. The inverter offers active safety features such as AFCI (active arc detection), over-voltage and over-current protection, and residual current monitoring. With protection class IP66, use outdoors is also possible. Cooling takes place using Smart Air Cooling, and communication takes place via RS485, WLAN/Ethernet (via dongle) or optionally 4G. Configuration and monitoring runs via the FusionSolar platform.

    • 20 kW three-phase hybrid inverter with integrated battery support
    • Active safety features such as AFCI and surge protection
    • Weatherproof design (IP66) and Smart Air Cooling

    The HUAWEI SUN2000-20K-MB0 is a powerful 20 kW hybrid inverter with integrated storage capability and comprehensive protection functions. It is suitable for combination with PV systems and Huawei LUNA storage solutions and allows modern energy management strategies.

    Scope of delivery: 1x Huawei SUN2000-20K-MB0 inverter
