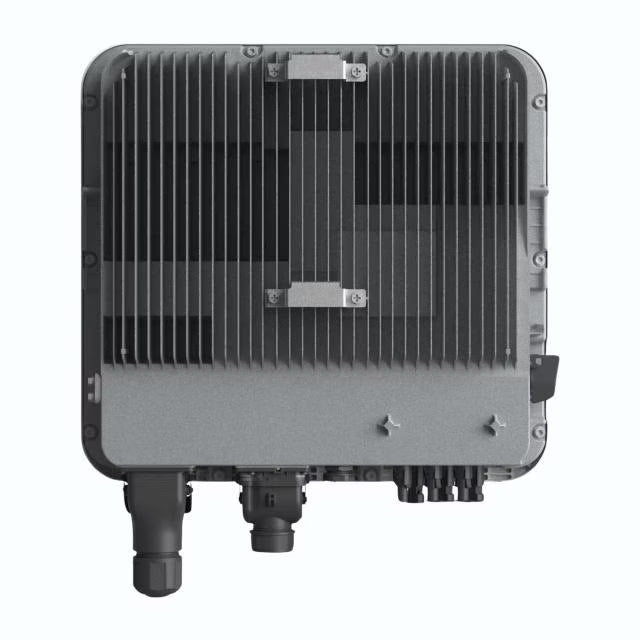

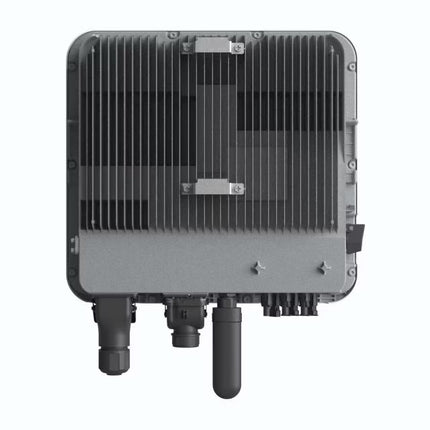

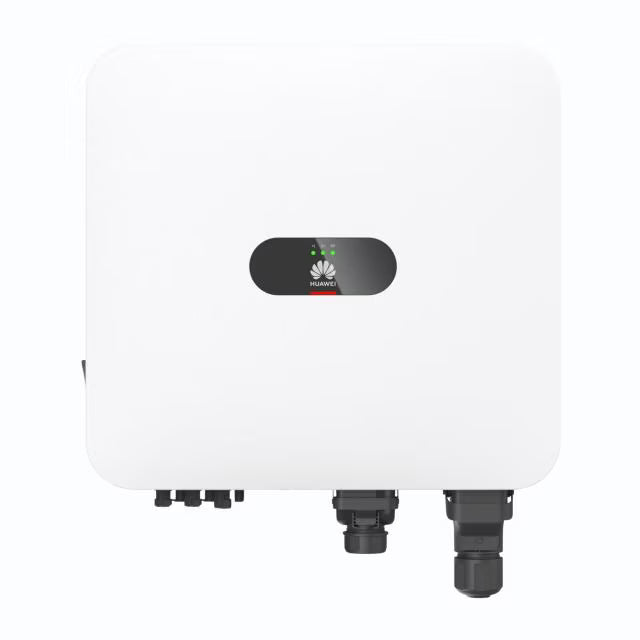

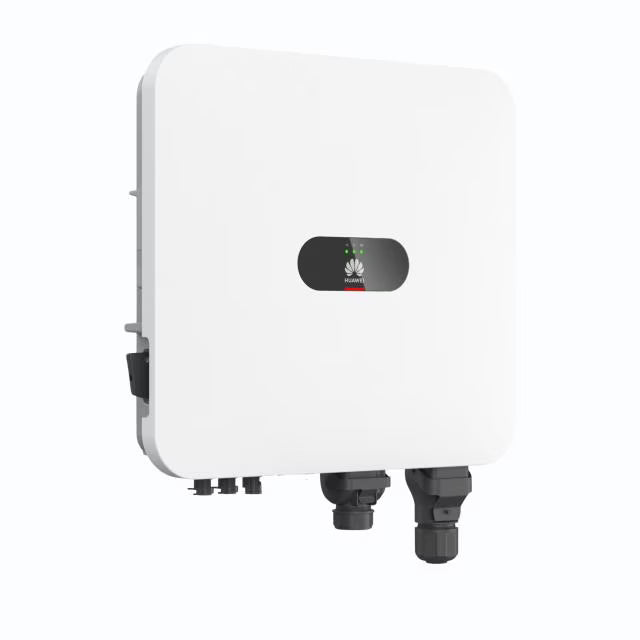

HUAWEI SUN2000-10K-MAP0

Description

The HUAWEI SUN2000-10K-MAP0 is a three-phase hybrid inverter (Smart Energy Controller) from the MAP0 series that efficiently combines solar modules, battery storage and grid operation. It offers asymmetrical three-phase output, allowing the power of each phase to be controlled as needed. With two MPPT inputs, it can optimally monitor and adapt different module strings. It ensures safety through AFCI (arc fault detection), overvoltage and polarity protection as well as temperature monitoring on connectors. Its protection class IP66 allows outdoor operation under demanding environmental conditions. Monitoring and configuration is carried out via integrated WLAN, RS485 or optionally via a 4G dongle, connected to the Huawei FusionSolar platform.

  • Three-phase hybrid inverter with asymmetrical load distribution
  • Safety features including AFCI, surge protection and temperature monitoring
  • Compatible with Huawei LUNA2000 storage systems and SmartGuard backup

The HUAWEI SUN2000-10K-MAP0 is a 10kW hybrid inverter with intelligent phase control, high efficiency and comprehensive safety. It supports battery systems and offers flexible integration into PV storage solutions.

Scope of delivery: 1x Huawei SUN2000-10K-MAP0 inverter

HUAWEI SUN2000-10K-MAP0

Product form
Free pickup in our shop(s)
  • Auf Lager - in 7 bis 14 Werktagen bei Dir

€1.573,00 Incl. VAT

    • Guaranteed safer & protected Check out.

      klarna
    • Free Shipping for all orders over € 39 (except freight goods).
    • 30 days Money-back guarantee
    • Own warehouse At the company headquarters
    🌳 Environmentally friendly to your front door!

    We send CO₂-neutral and use sustainable materials-as far as technically possible.

    So your order arrives in an environmentally conscious and responsible manner.

    📦 Our shipping promise to you!

    Orders can be returned or exchanged within 30 days of receipt of the delivery if they are in an original state.

    We deliver across Europe. Your order will be carefully packed and delivered to the desired location.

    The delivery lasts Between 2 and 5 working days Depending on the type of shipping.

    Technische Daten

    • System: Hybrid-Wechselrichter
    • Nennleistung: 10000 Watt
    • Topologie: trafolos
    • Anzahl MPPT: 2 Stück
    • MPP Spannung min: 400 Volt
    • MPP Spannung max: 850 Volt
    • DC-Anschluss: MC4
    • Netzanschluss: 3-phasig
    • Maße in mm: L: 490 mm B: 460 mm H: 130 mm
    • Gewicht: 21 kg

    SKU: SL-HW-MAP0-10K-0
    Barcode: 4262431424718

    Description

    The HUAWEI SUN2000-10K-MAP0 is a three-phase hybrid inverter (Smart Energy Controller) from the MAP0 series that efficiently combines solar modules, battery storage and grid operation. It offers asymmetrical three-phase output, allowing the power of each phase to be controlled as needed. With two MPPT inputs, it can optimally monitor and adapt different module strings. It ensures safety through AFCI (arc fault detection), overvoltage and polarity protection as well as temperature monitoring on connectors. Its protection class IP66 allows outdoor operation under demanding environmental conditions. Monitoring and configuration is carried out via integrated WLAN, RS485 or optionally via a 4G dongle, connected to the Huawei FusionSolar platform.

    • Three-phase hybrid inverter with asymmetrical load distribution
    • Safety features including AFCI, surge protection and temperature monitoring
    • Compatible with Huawei LUNA2000 storage systems and SmartGuard backup

    The HUAWEI SUN2000-10K-MAP0 is a 10kW hybrid inverter with intelligent phase control, high efficiency and comprehensive safety. It supports battery systems and offers flexible integration into PV storage solutions.

    Scope of delivery: 1x Huawei SUN2000-10K-MAP0 inverter
