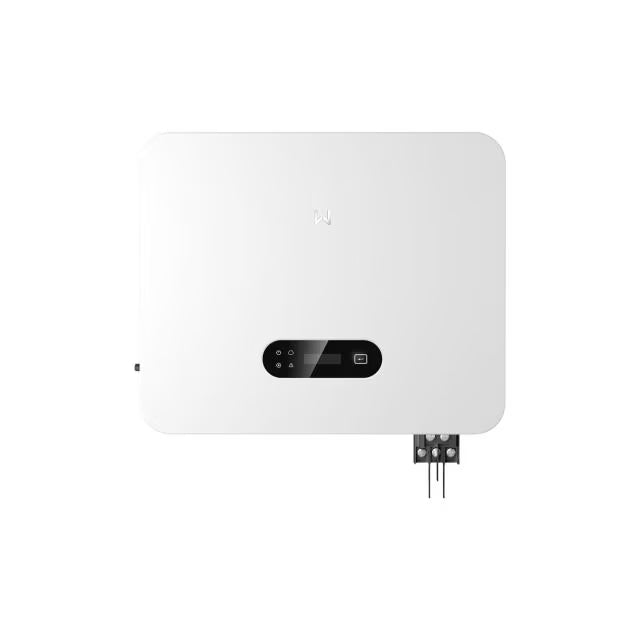

GoodWe SDT G3 GW30K-SDT-30

Description

The GoodWe GW30K-SDT-30 is a three-phase string inverter from the SDT G3 series, designed for high-performance residential and smaller commercial photovoltaic systems. It offers three MPPT inputs, which allows different module strings to be flexibly connected. The inverter supports oversizing on the DC side up to 150% and AC overload up to 110% in order to optimally utilize energy potential. On the safety side, there are built-in protection functions such as over-voltage protection (SPD Type II) on DC and AC, insulation monitoring, reverse current protection and optional arc fault detection (AFCI). The design is weatherproof according to IP66, and cooling takes place via a built-in fan (Smart Fan Cooling). Communication and monitoring are implemented via interfaces such as RS485, WLAN / LAN or optionally 4G/Bluetooth, including connection to GoodWe monitoring platforms.

  • Three MPPTs each with two strings for flexible module interconnection
  • 150% DC oversizing and 110% AC overload capability
  • Built-in SPD (AC & DC), optional AFCI and IP66 protection

The GoodWe GW30K-SDT-30 is a 30 kW three-phase string inverter with three MPPT, high efficiency and advanced protection functions. It is ideal for demanding PV installations that require maximum yield and high security.

Scope of delivery: 1× GoodWe GW30K-SDT-30 inverter

GoodWe SDT G3 GW30K-SDT-30

Product form
Free pickup in our shop(s)
  • Pre-order - Available in Q3/2026

€1.158,00 Incl. VAT

    • Guaranteed safer & protected Check out.

      klarna
    • Free Shipping for all orders over € 39 (except freight goods).
    • 30 days Money-back guarantee
    • Own warehouse At the company headquarters
    🌳 Environmentally friendly to your front door!

    We send CO₂-neutral and use sustainable materials-as far as technically possible.

    So your order arrives in an environmentally conscious and responsible manner.

    📦 Our shipping promise to you!

    Orders can be returned or exchanged within 30 days of receipt of the delivery if they are in an original state.

    We deliver across Europe. Your order will be carefully packed and delivered to the desired location.

    The delivery lasts Between 2 and 5 working days Depending on the type of shipping.

    Downloads

    Datenblatt GoodWe SDT G3 GW30K-SDT-30 DE

    Technical data

    • System: PV-Wechselrichter
    • Nennleistung: 30000 Watt
    • Topologie: trafolos
    • Anzahl MPPT: 3 Stück
    • MPP Spannung min: 140 Volt
    • MPP Spannung max: 950 Volt
    • DC-Anschluss: MC4
    • Netzanschluss: 3-phasig
    • Maße in mm: L: 585 mm B: 483 mm H: 230 mm
    • Gewicht: 29.5 kg

    SKU: SL-GW-SDT-30K-0
    Barcode: 4262492214761

    Description

    The GoodWe GW30K-SDT-30 is a three-phase string inverter from the SDT G3 series, designed for high-performance residential and smaller commercial photovoltaic systems. It offers three MPPT inputs, which allows different module strings to be flexibly connected. The inverter supports oversizing on the DC side up to 150% and AC overload up to 110% in order to optimally utilize energy potential. On the safety side, there are built-in protection functions such as over-voltage protection (SPD Type II) on DC and AC, insulation monitoring, reverse current protection and optional arc fault detection (AFCI). The design is weatherproof according to IP66, and cooling takes place via a built-in fan (Smart Fan Cooling). Communication and monitoring are implemented via interfaces such as RS485, WLAN / LAN or optionally 4G/Bluetooth, including connection to GoodWe monitoring platforms.

    • Three MPPTs each with two strings for flexible module interconnection
    • 150% DC oversizing and 110% AC overload capability
    • Built-in SPD (AC & DC), optional AFCI and IP66 protection

    The GoodWe GW30K-SDT-30 is a 30 kW three-phase string inverter with three MPPT, high efficiency and advanced protection functions. It is ideal for demanding PV installations that require maximum yield and high security.

    Scope of delivery: 1× GoodWe GW30K-SDT-30 inverter
