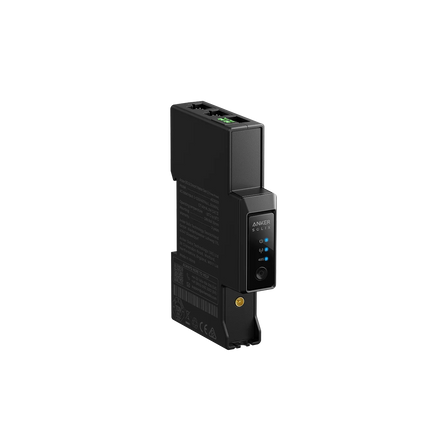

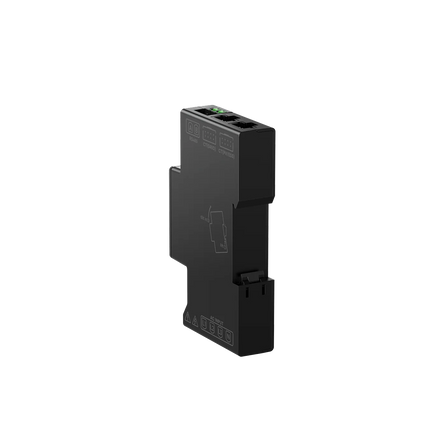

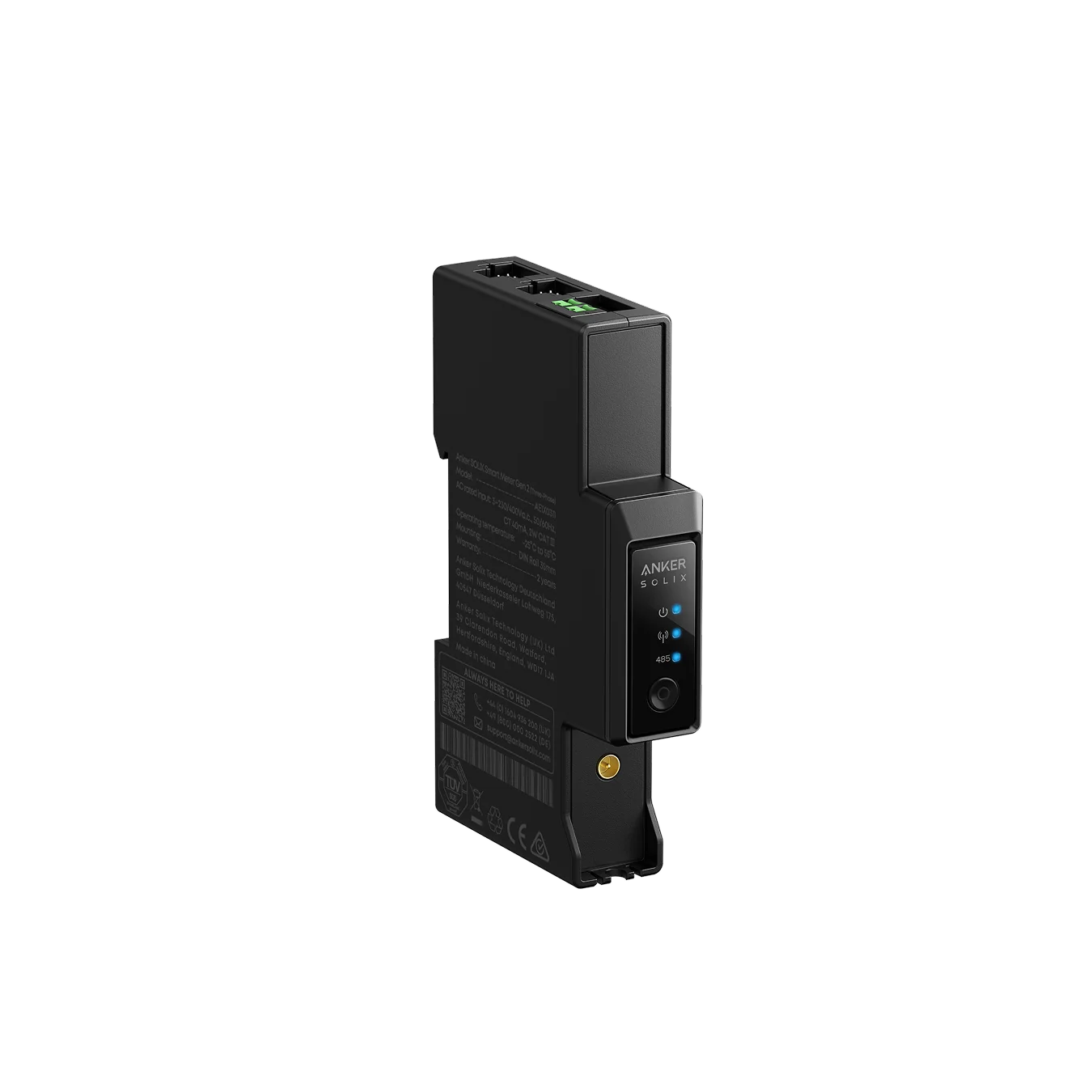

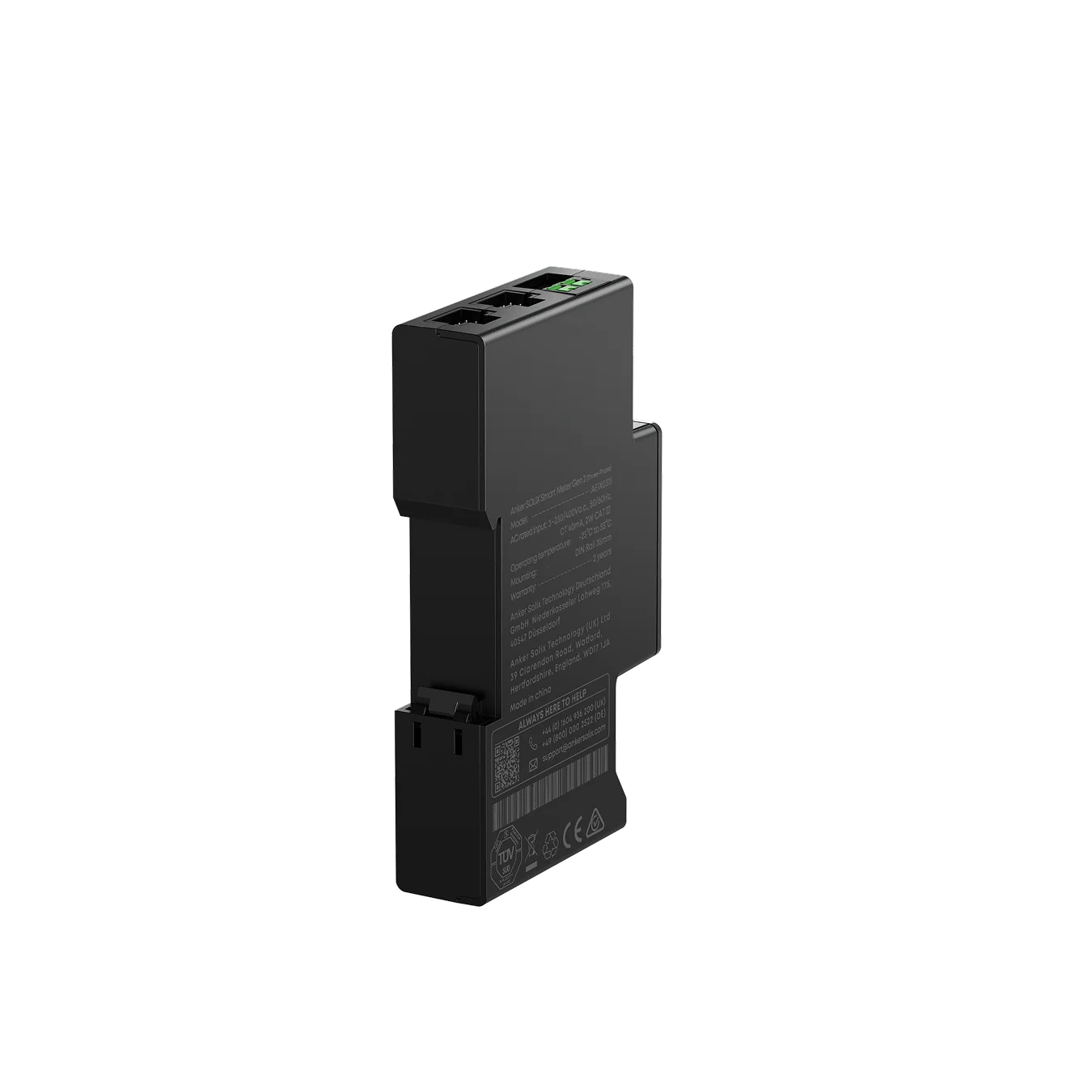

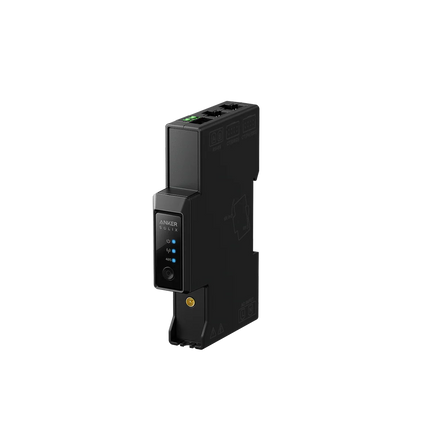

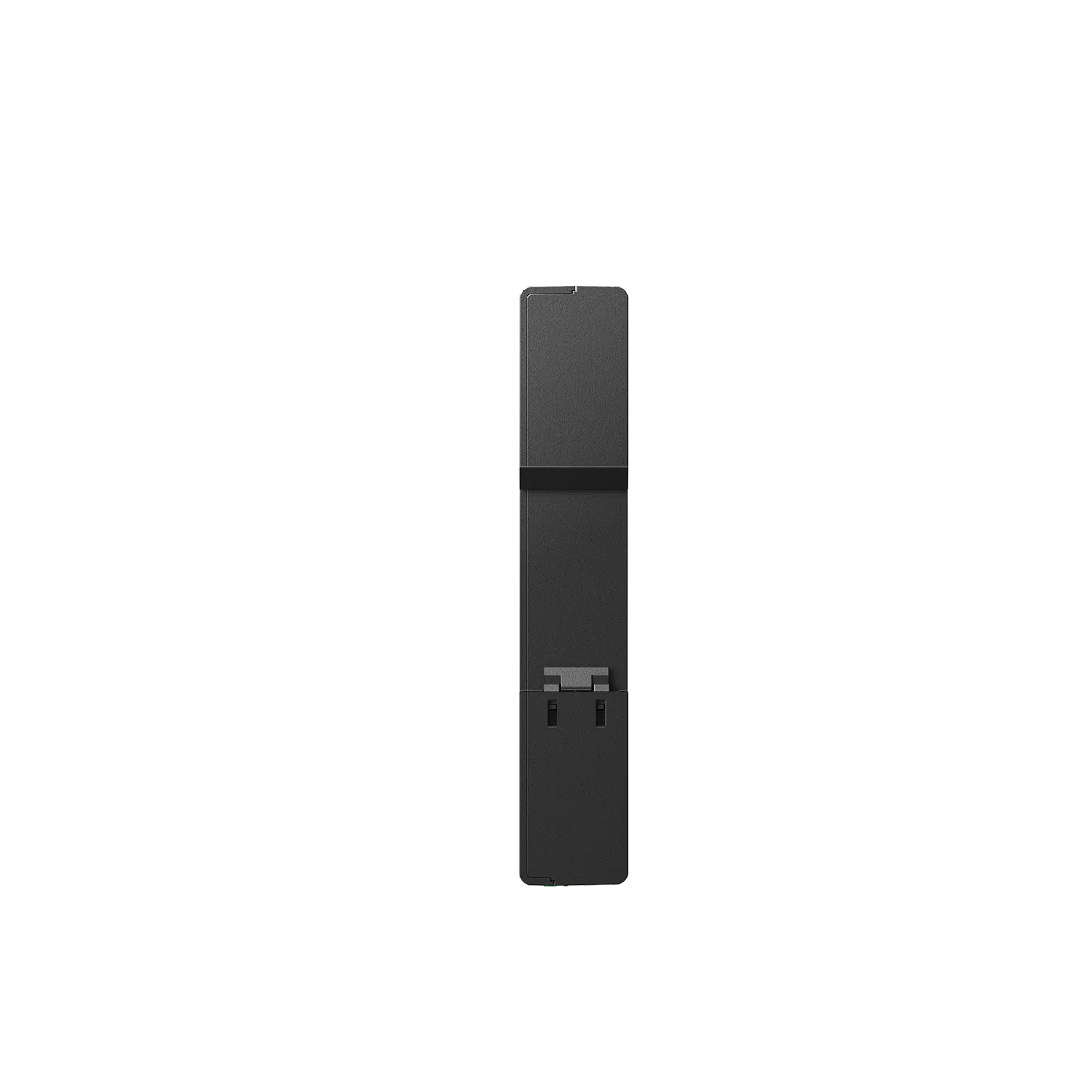

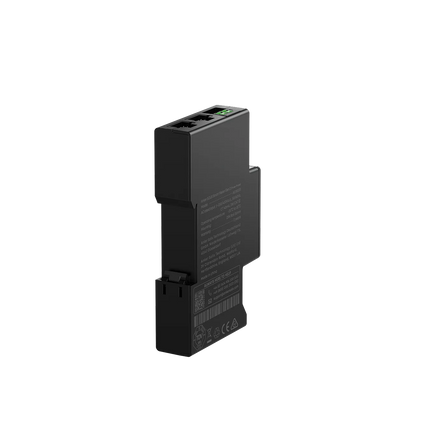

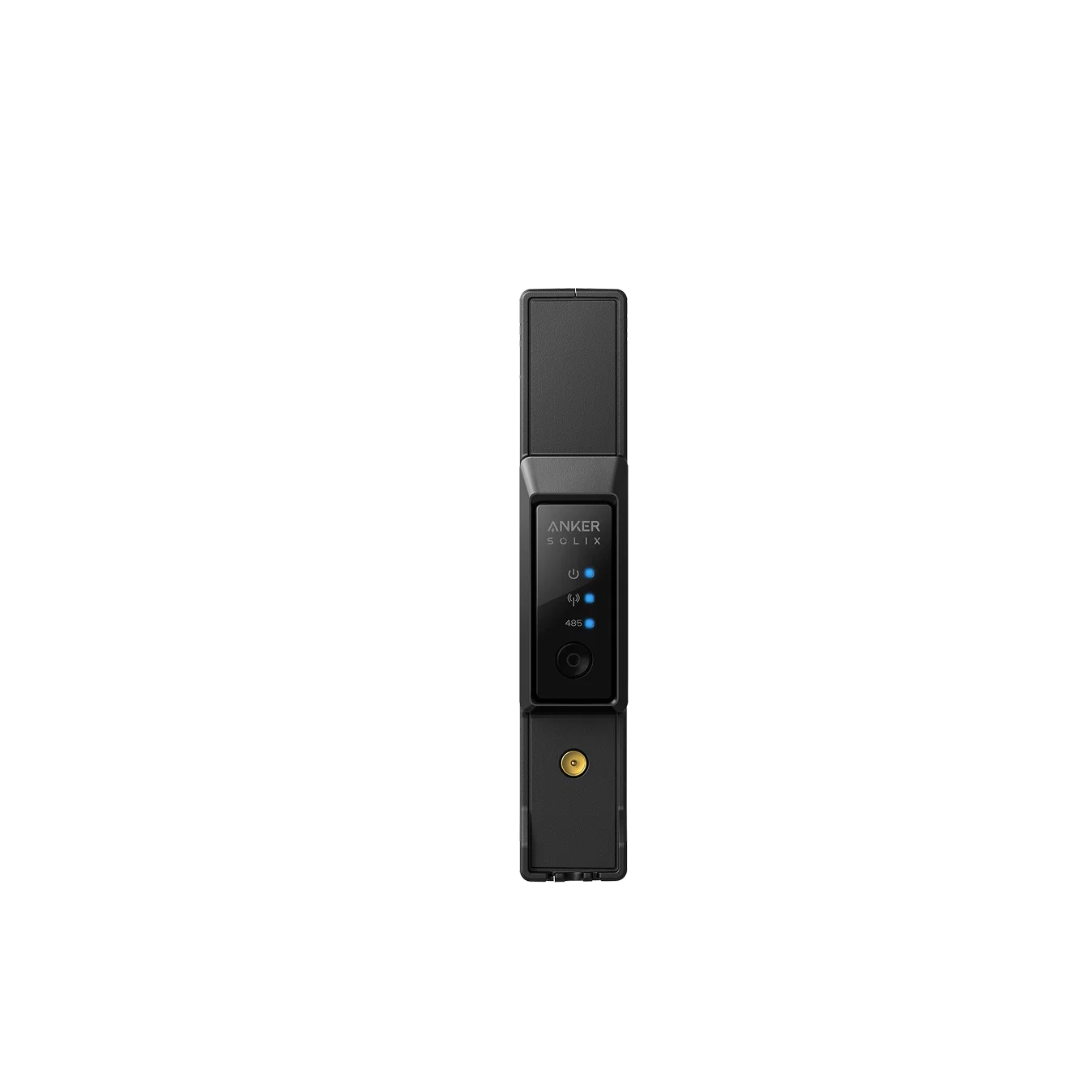

ANKER SOLIX Solarbank Smart Meter Gen 2

Description

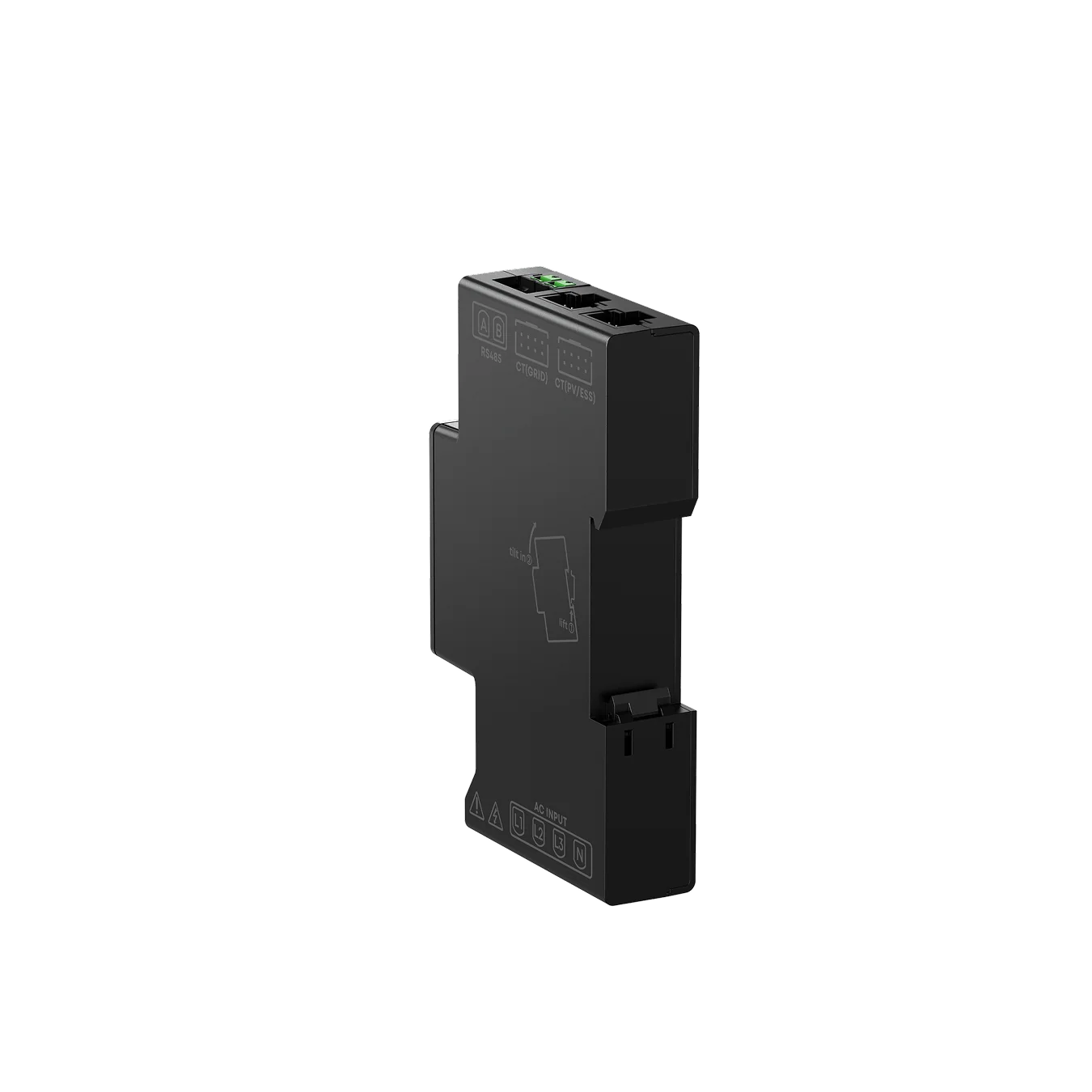

The Anker SOLIX Smart Meter Gen 2 in the three-phase version is a compact energy meter Anker SOLIX series for real-time monitoring of voltage, current and power in the home network. It records the current energy requirement and enables compatible Solarbank Systems to precisely adjust their performance in just three seconds. The household network and, in supported systems, additional photovoltaics or energy storage currents can be monitored separately via separate CT connections. Communication takes place via Bluetooth, 2.4 GHz WLAN and RS485, allowing both wireless and wired connections. Thanks to its compact design with a width of only 19 mm and mounting on a 35 mm DIN rail, the device is particularly suitable for installation in a distribution box. With measured values up to 120 A pro Channel, protection class IP20 and an intended service life of 10 years, the smart meter is designed for stationary use indoors.

  • Real-time measurement with system adjustment within just 3 seconds
  • Three-phase measurement with up to 120 A pro Channel and accuracy class 1
  • Bluetooth, 2.4 GHz WLAN and RS485 for flexible communication

The Anker SOLIX Smart Meter Gen 2 precisely records the energy flows of a household and provides the measurement data for intelligent energy management. In conjunction with compatible Anker SOLIX Solarbank In this way, the storage capacity of systems can be regulated as required and self-consumption can be optimized.

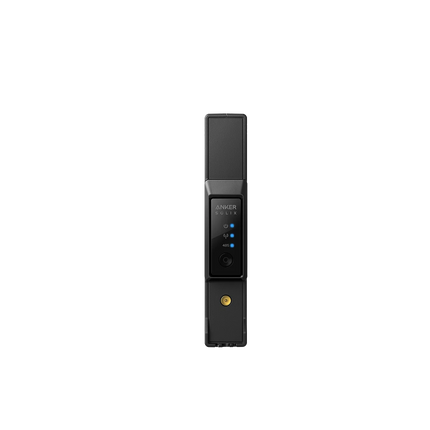

ANKER SOLIX Solarbank Smart Meter Gen 2

Product form
Free pickup in our shop(s)
  • In stock - with you in 7 to 14 working days

€119,00  €99,00 Incl. VAT

    • Guaranteed safer & protected Check out.

      klarna
    • Free Shipping for all orders over € 39 (except freight goods).
    • 30 days Money-back guarantee
    • Own warehouse At the company headquarters
    🌳 Environmentally friendly to your front door!

    We send CO₂-neutral and use sustainable materials-as far as technically possible.

    So your order arrives in an environmentally conscious and responsible manner.

    📦 Our shipping promise to you!

    Orders can be returned or exchanged within 30 days of receipt of the delivery if they are in an original state.

    We deliver across Europe. Your order will be carefully packed and delivered to the desired location.

    The delivery lasts Between 2 and 5 working days Depending on the type of shipping.

    Downloads

    Datenblatt_Anker_Solix_Smart_Meter_Gen_2

    Technical data

    • Artikelnummer: AE1X0311
    • Produkt: Anker SOLIX Smart Meter Gen 2 Dreiphasig
    • Phasen: 3 phasig
    • AC Nenneingang: 230/400 V AC, 50/60 Hz
    • Maximaler Messwert: 120 A je Kanal
    • Stromverbrauch: unter 2 W
    • Messgenauigkeit: ±1 % bei 1 bis 120 A
    • Kommunikation: Bluetooth, 2,4 GHz WLAN, RS485
    • DIN Schiene: 35 mm
    • Schutzart: IP20, Innenbereich
    • Abmessungen: 105 × 19 × 66,7 mm
    • Betriebstemperatur: minus 25 °C bis plus 55 °C
    • Kompatible CT: 63 A und 120 A
    • Garantie: 2 Jahre
    • Lebensdauer: 10 Jahre

    SKU: SL-AN-SM-GEN2-0
    Barcode: 0194644323127

    Description

    The Anker SOLIX Smart Meter Gen 2 in the three-phase version is a compact energy meter Anker SOLIX series for real-time monitoring of voltage, current and power in the home network. It records the current energy requirement and enables compatible Solarbank Systems to precisely adjust their performance in just three seconds. The household network and, in supported systems, additional photovoltaics or energy storage currents can be monitored separately via separate CT connections. Communication takes place via Bluetooth, 2.4 GHz WLAN and RS485, allowing both wireless and wired connections. Thanks to its compact design with a width of only 19 mm and mounting on a 35 mm DIN rail, the device is particularly suitable for installation in a distribution box. With measured values up to 120 A pro Channel, protection class IP20 and an intended service life of 10 years, the smart meter is designed for stationary use indoors.

    • Real-time measurement with system adjustment within just 3 seconds
    • Three-phase measurement with up to 120 A pro Channel and accuracy class 1
    • Bluetooth, 2.4 GHz WLAN and RS485 for flexible communication

    The Anker SOLIX Smart Meter Gen 2 precisely records the energy flows of a household and provides the measurement data for intelligent energy management. In conjunction with compatible Anker SOLIX Solarbank In this way, the storage capacity of systems can be regulated as required and self-consumption can be optimized.
