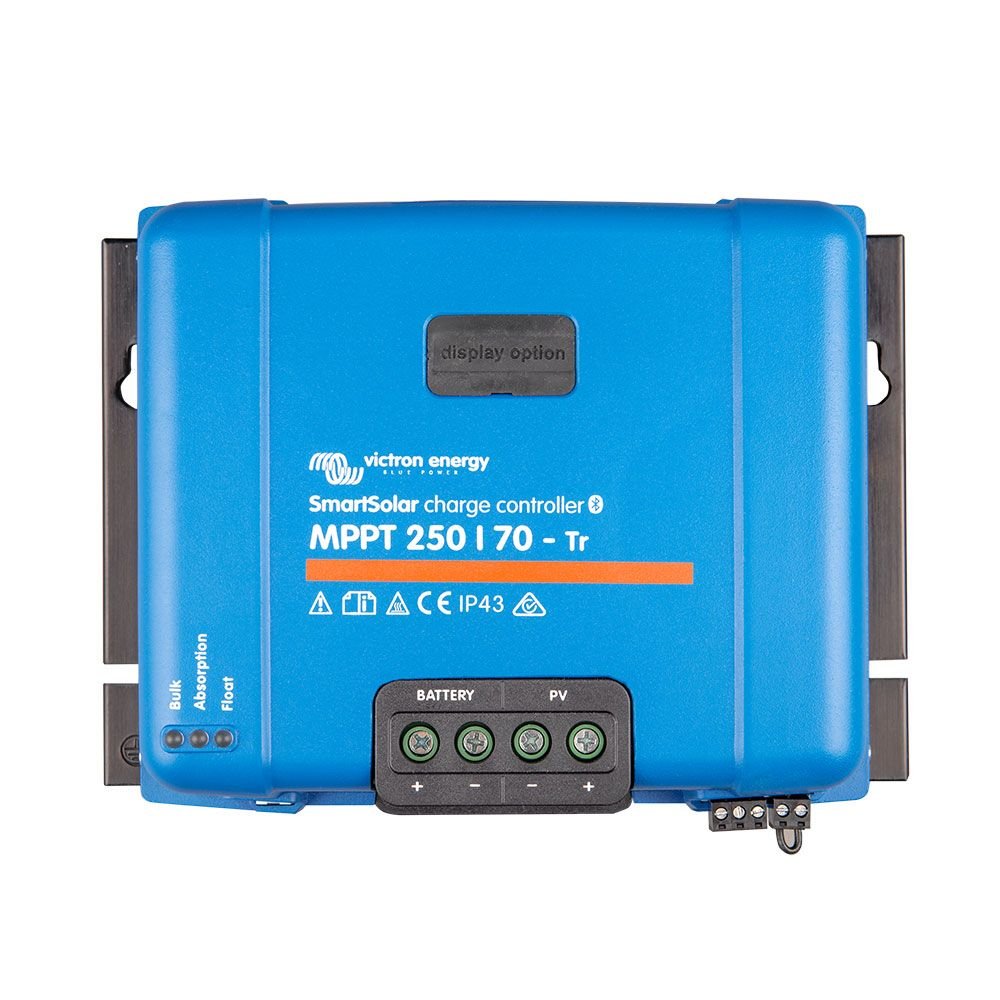

The Smartsolar MPPT 250/70-tr from Victron Energy (MPN SCC125070210) is part of the latest generation of smart solar controllers from the Dutch premium manufacturer. The controller processes a whopping 70A of solar power and can work flexibly with 12/24/36/48 V batteries with a maximum PV input voltage of 250V DC. The ultra-fast power tracking and automatic power point detection in the event of partial shading are just two of the many highlights of this new device class. This model can also operate in parallel with other controllers of the same type.
Compared to the Smartsolar 150/..... series, the 250/.... series can handle a maximum PV input voltage of 250V. This is also one of the reasons why the 250 solar controller family was able to increase efficiency by a further 1 percent to a total of 99%, thereby setting new standards across the industry. This value is currently the best of all solar charge controllers that we know of. Compared to the BlueSolar family, the Bluetooth module is already permanently integrated into the controller in the 250 Smartsolar series, which makes the Smart Dongle superfluous on this device if you want to analyze and configure the controller via Bluetooth using a smartphone or tablet. Also new is the optionally available LCD display, which can be easily plugged onto the SmartSolar 250/70-tr when required. The display then provides all the important information about the controller. If required, the MPPT WireBox-L Tr from Victron Energy is the ideal addition to your SmartSolar charge controller . It safely covers the cable entries or the connection terminals of the controller and thus protects them from external influences and contact.
Key product features of the SmartSolar 250/70-tr 70A 12V 24V 48V MPPT
- Victron Energy Part Number: SCC125070210
- max. PV power: 12 V 1000 W / 24 V 2000 W / 48 V 4000 W
- Max. rated charging current 70A, 250V maximum PV open circuit voltage
- Ultra-fast MPP tracker of the latest generation ensures the best possible yield even under overcast skies
- Automatic detection of the MPP voltage in partial shading ensures a further improvement in yield compared to "simple" MPPT charge controllers
- with optional LCD display
- Built-in Bluetooth module for app-based analysis and configuration of the controller (via free Victron app on compatible devices)
- optional LCD display available
- Integrated VE.Direct data communication port for connection to additional devices such as the GX Color Control Panel or a Smart BMV battery monitor
- groundbreaking efficiency 99%
- Parallel operation with other 250/85 controllers possible
- adjustable constant charging voltage
- adjustable trickle charge voltage
- suitable for all AGM, GEL, lead-acid calcium-calcium and lithium batteries
- Fully programmable charging algorithms that can later be manually activated and switched via a switch on the housing
- integrated protection against battery polarity reversal
- multi-stage and adaptive charging algorithm
- Remote controlled switching on and off possible via 2-pin plug
- Protection class IP 43 for the electronic components and protection class IP 22 for the connection area of the controller
- Integrated temperature sensor balances maintenance and constant charge voltage according to temperature
- Day/night time control and light dimming options
Smart configuration and analysis via Victron Connect app
Modern Apple and Android smartphones, tablets, Macbooks and other devices can be connected thanks to the integrated Bluetooth module and the free Victron Connect APP. The app can then be used to configure many important functions of the SmartSolar controller. Of course, it also provides all important parameters such as the current solar yield in real time.
Automatic detection of the maximum power point in case of partial shading
In case of partial shading, there may be two or more maximum power points ( MPP ) on the current-voltage curve. Conventional MPPTs tend to adjust to a local MPP . However, this may not be the optimal MPP . The innovative algorithm of the SmartSolar controller will always maximize energy yield by adjusting to the optimal MPP .
High-speed MPP tracker of the latest generation
Especially under overcast conditions, when the light intensity is constantly changing, an extremely fast MPPT controller improves energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

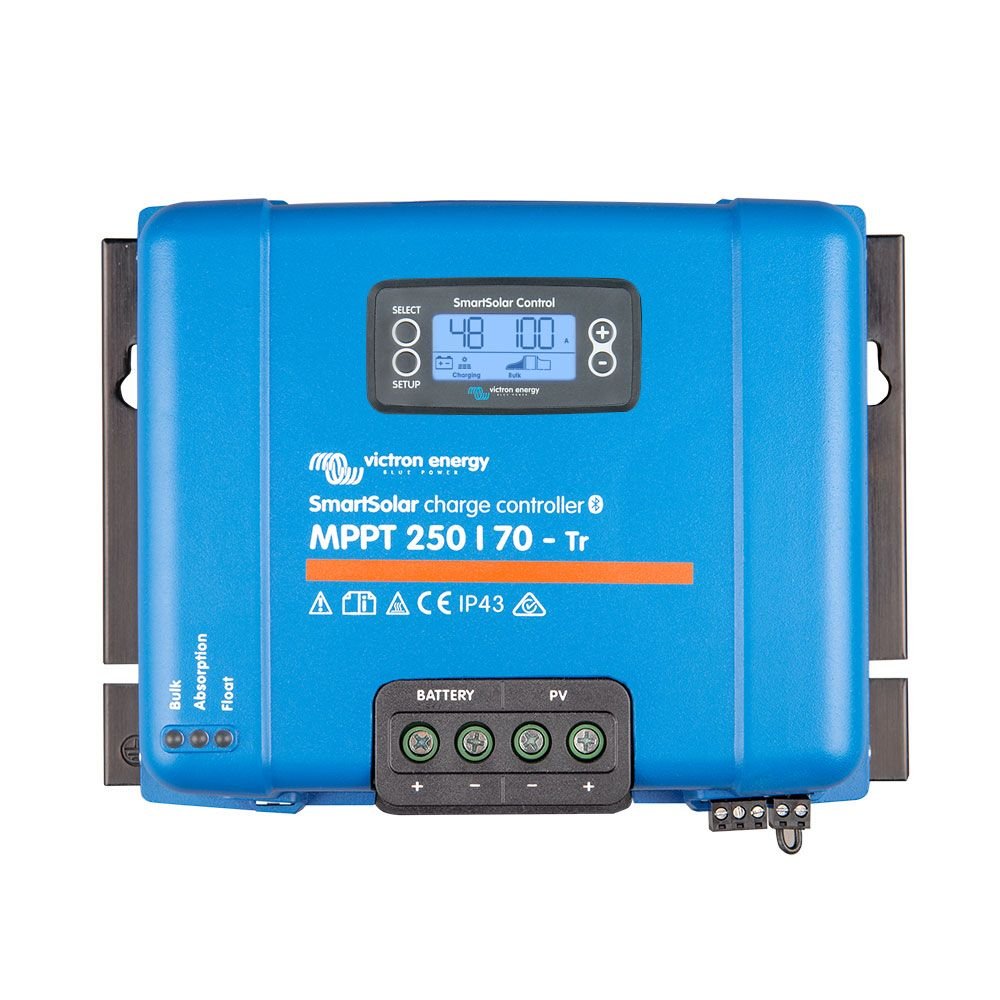

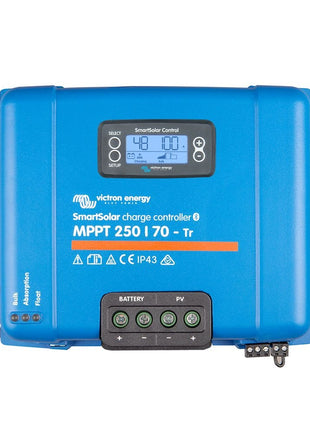

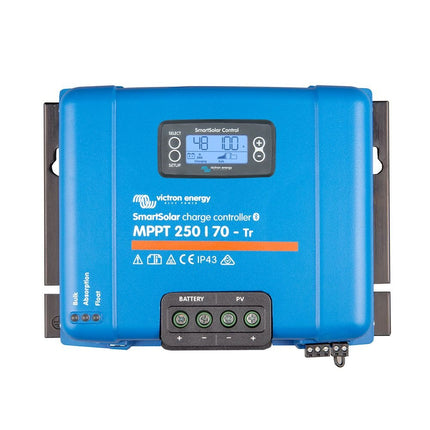

Optional LCD display available for retrofitting
If you prefer to operate and configure the Smartsolar MPPT 250/70-tr directly, you can retrofit the Smartsolar Control SCC900600010 display. The display enables easy configuration of the controller via key input and also provides all important performance data at a glance.
Comprehensive electronic protection
- Protection against reversed battery connection
- PV backflow preventer
- Protection against overheating of the device
- Protection against short circuits
- Protection against reversed PV connection
The VE.Direct data communication port
VE.Direct in text mode transmits all important parameters every second to other devices that are linked to the charge controller , thus offering the possibility of communication with additional devices such as the GX Color Control system panel. The VE.Direct connection is intended for products where full Canbus integration (VE-Direct) would be too expensive. You can find more information about VE.Direct in our Victron Energy brand shop.
Scope of delivery
1x Victron SCC125070210 SmartSolar MPPT 250/70-tr 12V 24V 48V 70A charge controller
1x User manual
