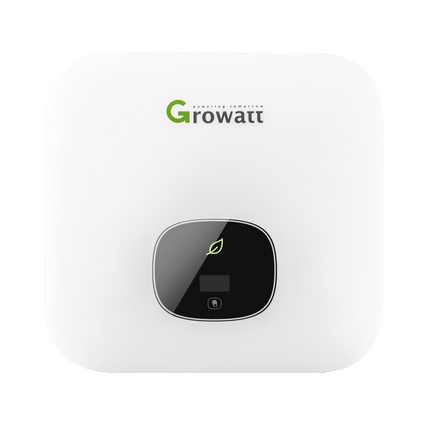

Growatt 1PH Hybrid Inverter MIN 6000TL-XH2

Description

The Growatt MIN 6000TL-XH2 is the most powerful single-phase model in the MIN 2500 to 6000TL-XH2 series and provides 6,000 W AC rated power. The series is designed as a battery-ready solution for private photovoltaic systems and can be supplemented with a compatible Growatt high-voltage storage system if required. Two independent MPP trackers, each with a string, enable flexible design for different roof orientations or module fields. With a maximum efficiency of 98.4 percent and a DC/AC ratio of up to 2.0, the inverter supports high energy yield. The maximum input current of 16 A per MPP tracker is also suitable for powerful PV modules, while the IP66 protection class enables use indoors and outdoors. Integrated protective functions, natural convection cooling and expandable communication via Growatt accessories round off the MIN-XH2 series.

  • 6,000 W AC rated power with a maximum efficiency of 98.4%
  • Two MPP trackers, each with 16A maximum input current
  • Battery prepared, protection class IP66 and surge protection type II

The Growatt MIN 6000TL-XH2 combines high PV input power with a compact design and flexible storage expansion. It is suitable for larger single-phase rooftop systems where efficiency, two MPP trackers and later battery integration are required.

Scope of delivery: 1x Growatt MIN 6000TL-XH2, 1x wall bracket, 2x signal plug, 2x PV plus plug, 2x PV minus plug, 3x plus metal contacts, 3x minus metal contacts, 1x AC plug

Growatt 1PH Hybrid Inverter MIN 6000TL-XH2

Product form
Free pickup in our shop(s)
  • In stock - with you in 7 to 14 working days

€595,00 Incl. VAT

    • Guaranteed safer & protected Check out.

      klarna
    • Free Shipping for all orders over € 39 (except freight goods).
    • 30 days Money-back guarantee
    • Own warehouse At the company headquarters
    🌳 Environmentally friendly to your front door!

    We send CO₂-neutral and use sustainable materials-as far as technically possible.

    So your order arrives in an environmentally conscious and responsible manner.

    📦 Our shipping promise to you!

    Orders can be returned or exchanged within 30 days of receipt of the delivery if they are in an original state.

    We deliver across Europe. Your order will be carefully packed and delivered to the desired location.

    The delivery lasts Between 2 and 5 working days Depending on the type of shipping.

    Downloads

    Dattenblatt_Growatt_MIN_2500-6000TL-XH2_EN

    Technical data

    • Artikelnummer: MIN 6000TL-XH2
    • Gerätetyp: Batterievorbereiteter Hybridwechselrichter
    • Netzanschluss: Einphasig
    • AC-Nennleistung: 6.000 W
    • Max. empfohlene PV-Leistung: 11.600 W
    • Max. DC-Spannung: 600 V
    • MPP-Spannungsbereich: 40 bis 550 V
    • MPP-Tracker / Strings: 2 / 2
    • Max. Eingangsstrom: 16 A je MPPT
    • Kompatibler Speicher: Growatt APX S0, 5 bis 30 kWh
    • Max. Ladeleistung: 6.000 W
    • Max. Entladeleistung: 6.000 W
    • Backup-Ausgang: Bis 6.000 VA mit optionaler Backup Box
    • Max. Wirkungsgrad: 98,4 %
    • Schutzart: IP66
    • Abmessungen: 375 x 350 x 160 mm
    • Gewicht: 10,8 kg
    • Kühlung: Natürliche Konvektion

    SKU: SL-GR-MIN6000TL-XH2-0

    Description

    The Growatt MIN 6000TL-XH2 is the most powerful single-phase model in the MIN 2500 to 6000TL-XH2 series and provides 6,000 W AC rated power. The series is designed as a battery-ready solution for private photovoltaic systems and can be supplemented with a compatible Growatt high-voltage storage system if required. Two independent MPP trackers, each with a string, enable flexible design for different roof orientations or module fields. With a maximum efficiency of 98.4 percent and a DC/AC ratio of up to 2.0, the inverter supports high energy yield. The maximum input current of 16 A per MPP tracker is also suitable for powerful PV modules, while the IP66 protection class enables use indoors and outdoors. Integrated protective functions, natural convection cooling and expandable communication via Growatt accessories round off the MIN-XH2 series.

    • 6,000 W AC rated power with a maximum efficiency of 98.4%
    • Two MPP trackers, each with 16A maximum input current
    • Battery prepared, protection class IP66 and surge protection type II

    The Growatt MIN 6000TL-XH2 combines high PV input power with a compact design and flexible storage expansion. It is suitable for larger single-phase rooftop systems where efficiency, two MPP trackers and later battery integration are required.

    Scope of delivery: 1x Growatt MIN 6000TL-XH2, 1x wall bracket, 2x signal plug, 2x PV plus plug, 2x PV minus plug, 3x plus metal contacts, 3x minus metal contacts, 1x AC plug
