BYD

BYD 2.56 kWh HVS Battery Module

BYD

BYD 2.56 kWh HVS Battery Module

Product form

845,00 € Incl. VAT

plus shipping costs

Sold out

    Legal guarantee: view notice

    • Safe & secure checkout.

      klarna

    SKU: BYD-B2.56HVSMod-0
    Barcode: 4262492212941

    The BYD 2.56 kWh HVS battery module is a modular energy storage module for use in the BYD Battery Box Premium HVS home battery. The storage capacity can be expanded by simply adding further modules. It is aimed at operators of PV systems with a BYD HVS home storage unit.

    Highlights

    • Modular growth: Simply add modules to expand the storage capacity.
    • Highly efficient: Over 96% battery efficiency, compatible with leading PV inverters.
    • Cascadable: Up to five modules per battery tower and up to three battery towers for a total of 38.4 kWh.
    • Long-lasting cells: Lithium iron phosphate cells.
    • Robust: Protection class IP 55, protected against dust and splashing water.

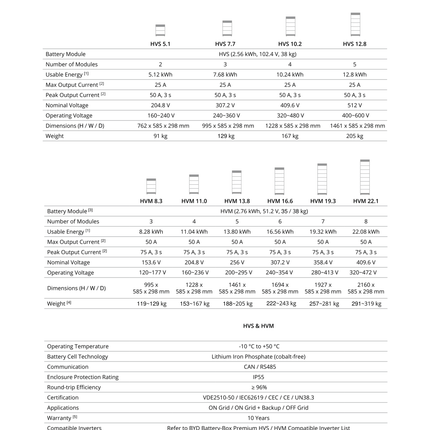

    Technical specifications

    Designation Value
    Usable capacity 2.56 kWh per module
    Rated voltage 102.4 volts
    Maximum output current 25 A
    Peak output current 50 A for 5 seconds
    Dimensions 585x233x298 mm
    Weight 38 kg
    Protection class IP 55
    Max. total capacity 38.4 kWh

    Who is it for?

    The module is intended for users who want to expand their BYD Battery Box Premium HVS step by step. A single module offers 2.56 kWh of usable capacity; up to five modules can be operated in series in one battery tower, and up to three towers can be cascaded.

    Good to know

    Whether the module suits your inverter and your existing battery should be clarified before purchase. Installation and commissioning should be left to a qualified electrician; depending on the grid operator, reporting obligations may apply.

    We are happy to advise you personally: phone +49 931 760 260 40 or email kontakt@energie24.shop. Pickup at our Veitshöchheim warehouse is possible by arrangement.

    Technical data

    Output and capacity

    Storage capacity
    2.56 kWh

    Shipping and returns

    Free shipping from €39 within Germany.

    You will find the expected delivery time right next to the product price. Freight items are delivered by appointment.

    You will find shipping costs and delivery areas in our shipping policy.

    The statutory right of withdrawal applies. You will find details in our withdrawal policy.

    Collection in Veitshöchheim by arrangement.

    Manufacturer information and product safety

    Manufacturer

    Byd
    EFT-Systems GmbH (BYD),
    Bruchtannstrasse 28,
    63801, Kleinostheim, Germany, https: //solar.byd.com,
    Info@EFT-Systems.de,
    004993528523999,

    Safety information

    Please observe the safety and installation instructions in the manufacturer's operating manual.
