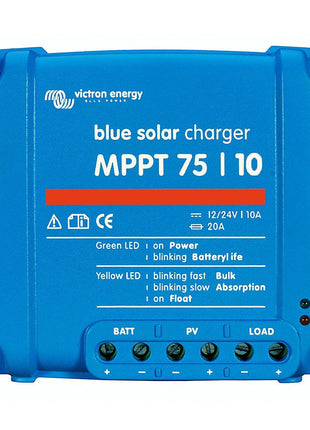

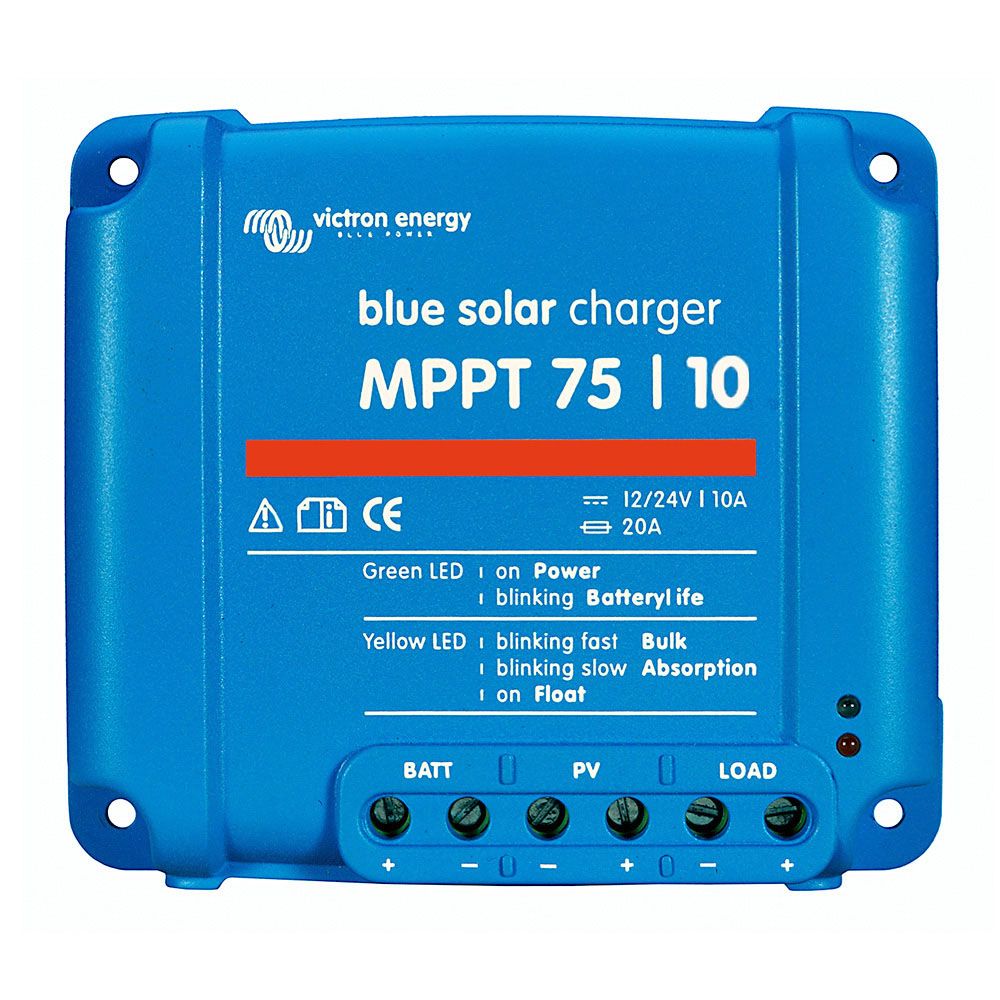

The Victron MPPT 75/10 (MPN SCC010010050R) belongs to the large BlueSolar family MPPT Charge controller And like its larger siblings, it also offers ultra-fast power tracking and can therefore increase the yield of your solar system.
MPP-Latest generation tracker
Especially when the sky is overcast, when the light intensity is constantly changing, improving extremely quickly MPPT- Regulators the energy yield compared to PWM charging controllers by up to 30% and compared to slower ones MPPT-Controls by up to 10%. In addition, the 75/10 has several other innovative technologies.
Options for programming, real-time data and history viewing

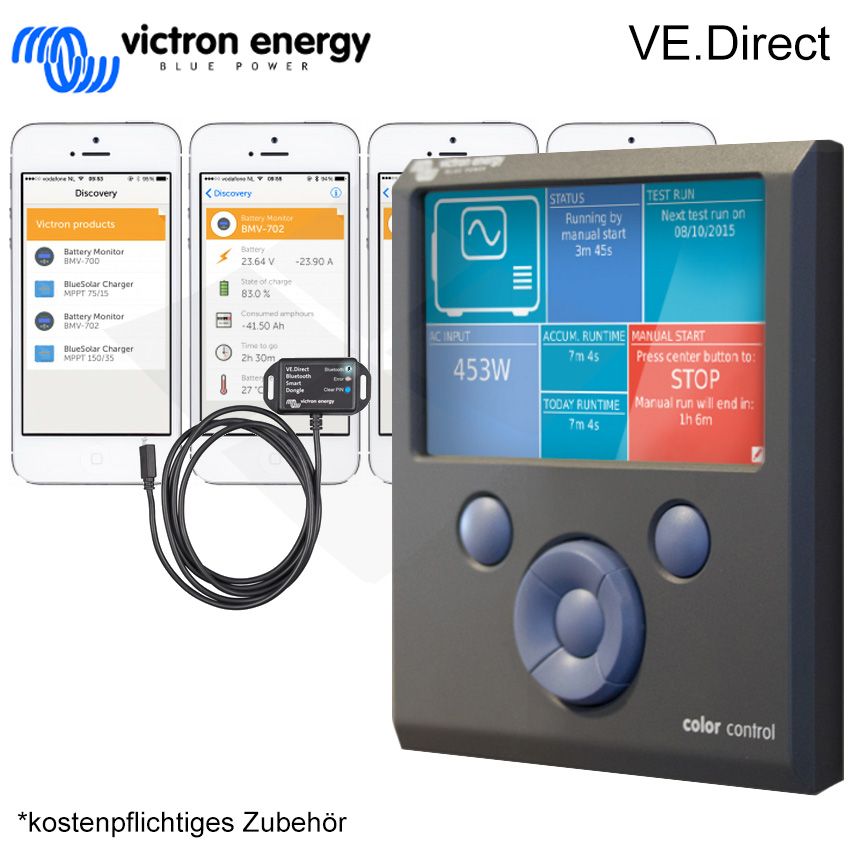

Modern Apple and Android smartphones, tablets, Macbooks and other devices can be connected via VE.Direct with the Bluetooth Smart Dongles and the MPPT App or the GX Color Control can be connected. Please note that Bluetooth Smart Dongles and GX Color Control are separate items that are not included in the scope of delivery of the charge controller but can be purchased from us as an option.
Key product features of the BlueSolar 75/10 10A 12V 24V MPPT
- ultra-faster MPP-Tracker of the latest generation ensures the best possible yield even when the sky is overcast
- Integrated VE.Direct data communication port for connection For communication with additional devices such as Bluetooth Smart Dongle or the GX Color Control Panel
- 12V 24V systems possible
- Rated charging current 10A
- 145W maximum PV power for 12V, 290W for 24V systems
- Load output with 10A output and automatic load shutdown in the event of impending battery undervoltage (deep discharge protection
- Integrated protection against battery polarity reversal
- multi-stage and adaptive loading algorithm
- programmable battery charging algorithm
- Integrated Battery Life algorithm extends the life of your batteries if it is active and all loads run via the load output on the controller
- Day/night time control and light dimming option
VE.Direct data communication port integrated
VE.Direct in text mode transmits all important parameters every second to other devices connected to the Charge controller are coupled and thus offers the possibility of communication with additional devices such as the Bluetooth Smart Dongle or the GX Color Control Panel from Victron. The VE.Direct connection is intended for products where full CANbus integration (VE-Direct) would be too expensive. You can find more information about VE.Direct in our Victron brand world in the information area.
Battery Life Algorithm helps increase battery life
If the solar charge controller is unable to charge the battery to its full capacity within a day, the battery's status will constantly cycle back and forth between "partially charged" and "end of discharge". This operating mode (no regular full charging) is optimal for small lead batteries, especially with lead-acid batteries. However, such irregular charging and discharging leads to damage to the battery after just a few months and the service life is sometimes shortened quite significantly
The Battery Life algorithm monitors the state of charge of the battery and, if necessary, increases the load disconnection threshold day by day (i.e. the load is disconnected earlier) until the energy obtained is sufficient to charge the battery to almost 100%. From this point onwards, the threshold for switching off the load is modulated so that close to 100% charging is achieved approximately once a week.
Scope of delivery
1x Victron SCC010010050R BlueSolar MPPT 75/10 12V 24V 10A Charge controller
