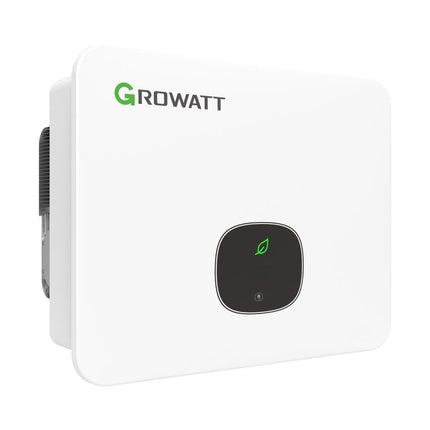

Growatt 3PH Hybrid Inverter MID 30KTL3-XH

Description

The Growatt MID 30KTL3-XH is a three-phase hybrid inverter with 30000 W AC rated power. It is battery-ready and intended for the Growatt APX HV battery system (5–60 kWh).

Highlights

  • Battery-ready: Battery operating voltage range 600–980 V; two battery connections with max. 25 A each.
  • MPP trackers: 3 independent trackers with 2 strings each and up to 32 A input current.
  • Efficiency: Maximum 98.8%, European efficiency 98.5%.
  • Safety: AFCI protection, Type II surge arresters on the DC and AC side, anti-islanding and residual current monitoring.
  • DC/AC ratio: Up to 2.
  • Housing: IP66, intelligent cooling, 31 kg.

Technical specifications

Designation Value
AC rated power 30000 W
Max. AC operating power 30000 VA
Max. PV power (STC) 60000 W
Max. input voltage 1100 V
MPPT voltage range 160–1000 V
Max. discharge power 30000 W
Max. charging power 15000 W (30000 W with two battery connections)
Max. output current 45.5 A
Max. efficiency 98.8%
Dimensions (W x H x D) 580 x 435 x 230 mm
Weight 31 kg
Warranty 5 years (optionally 10 years)

Scope of delivery

  • 1× Growatt 3PH Hybrid Inverter MID 30KTL3-XH

Who is it for?

For larger residential and commercial properties with a three-phase connection that want to combine PV generation and storage in a single device.

Good to know

Above 20 kW, a 5-year warranty applies, optionally 10 years. Connection and commissioning must be carried out by a qualified electrician; registration with the grid operator and in the Marktstammdatenregister (German market master data register, MaStR) is the operator's responsibility.
