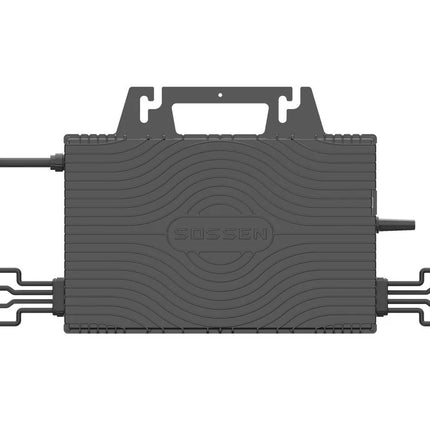

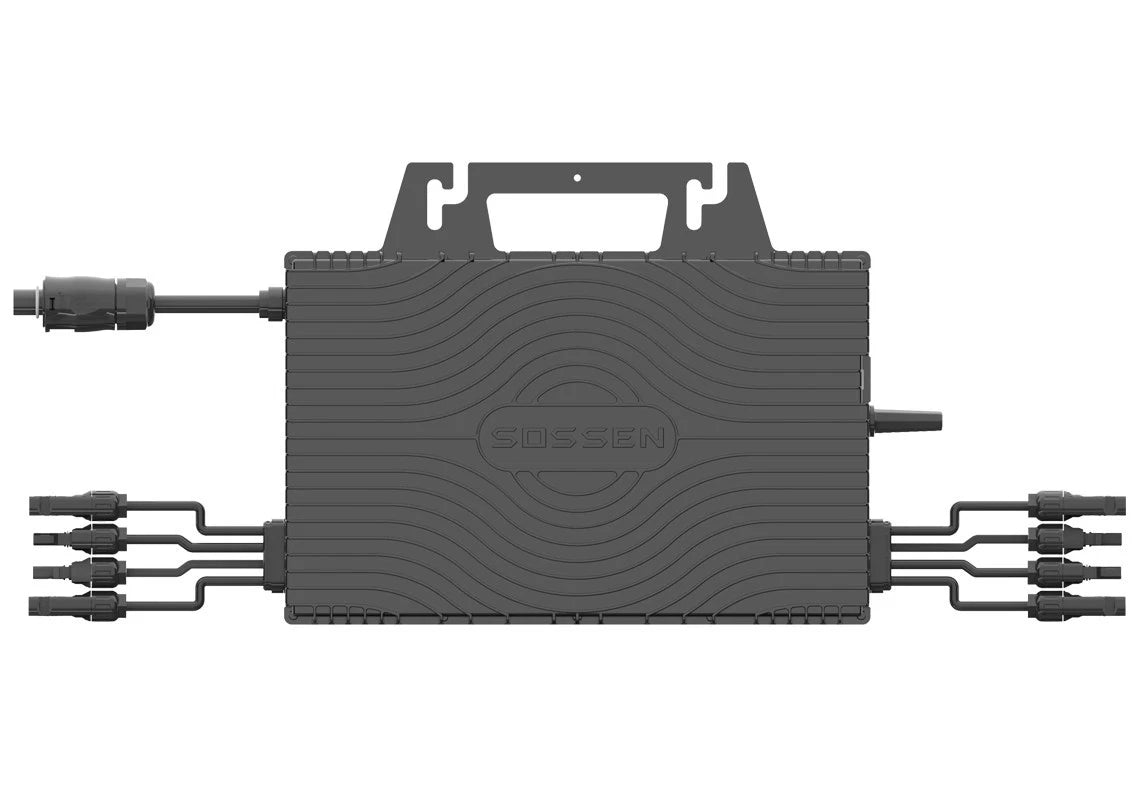

Description The Balcony Power Plant Basic+ (plug-in solar system) combines four SOLYCO R-WF108p.3-410 BF solar panels (410 Wp, monocrystalline PERC, 108 half cells) with the SOSSEN Micro 2400 Wi-Fi microinverter. Together, the panels deliver 1640 Wp. The inverter's four MPP trackers make it possible to operate each panel individually; Wi-Fi and Bluetooth enable monitoring via app.
Highlights
1640 Wp: 4 panels with 410 Wp each at 21.0% panel efficiency
Robust panels: Pressure load tested up to 5400 Pa, wind suction up to 2400 Pa, system voltage up to 1500 V
4 MPPT: Individual optimization of each panel
Weatherproof: Inverter with protection rating IP67 for outdoor use
Warranty: Panels: 15 (25 with system registration) years product warranty, 25 years linear performance guarantee
Technical specifications
Designation
Value
Total panel output
4 × 410 Wp = 1640 Wp
Panel Vmp / Imp
31.52 V / 13.01 A
Panel Voc / Isc
37.55 V / 13.83 A
Panel dimensions
1722 × 1134 × 30 mm
Panel weight
20.5 kg (new data sheet version), older version 21.0 kg
Inverter rated power
2400 W
MPPT voltage range of inverter
16-60 V
Max. input voltage of inverter
65 V
Protection rating of inverter
IP67
Dimensions of inverter
352 × 225 × 38.5 mm
Weight of inverter
5.5 kg

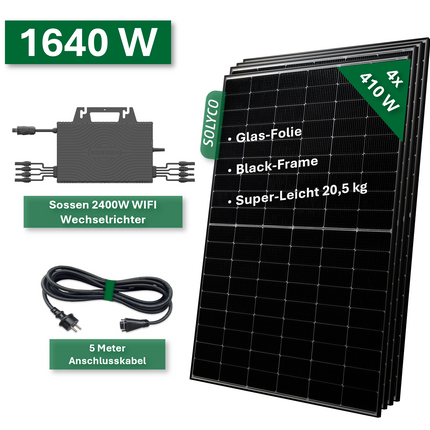

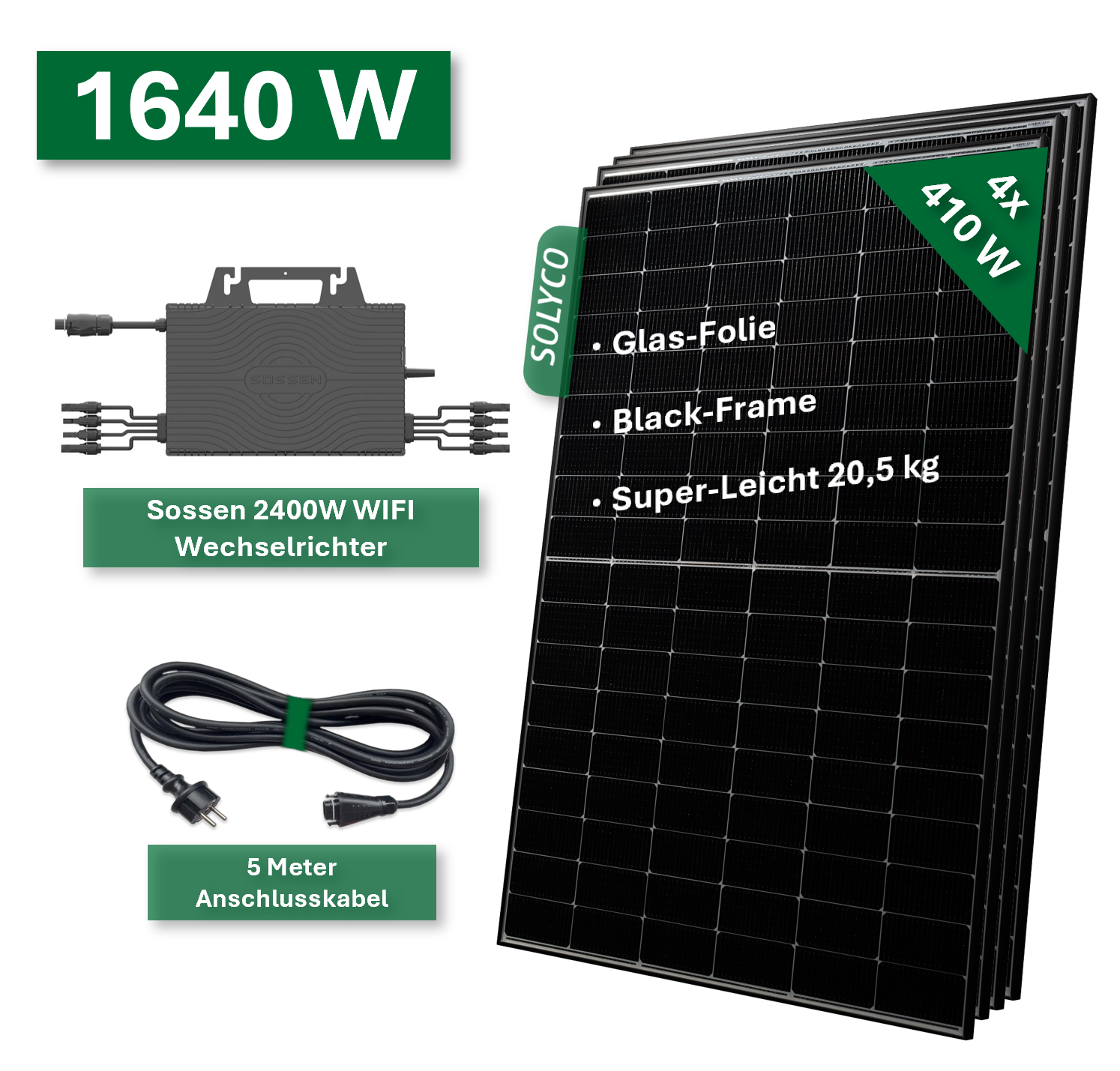

Scope of delivery
4x SOLYCO R-WF108p.3-410 BF solar panel
1x SOSSEN Micro 2400 Wi-Fi microinverter
1x 5 m connection cable
Who is it for?
The set is suitable for households planning a system with four panels and an inverter with a high power reserve. When operated as a plug-in balcony power plant, the feed-in power is limited to 800 VA; throttling is done via app or software. Full output is only available for registered systems or in storage operation, according to the requirements of your grid operator.
Good to know
Variants are available without a mount as well as with a mount for balcony, pitched roof or flat roof. Installation and grid connection should be carried out by a qualified electrician; registration obligations depend on the requirements of your grid operator.
We are happy to advise you personally on selection and use: by phone at +49 931 760 260 40 or by email at kontakt@energie24.shop. Pickup at our Veitshöchheim warehouse is possible by arrangement.
Balcony Power Plant BASIC+ 1640W/2400W with Solyco 410W Solar Panels and Sossen 2400W Inverter
Product form
279,65 €
Incl. VAT
plus shipping costs
Guaranteed safe & secure checkout.
Free Shipping for all orders over € 39 (except freight goods).30 days Money-back guaranteeOwn warehouse at our company headquarters
Shipping from Veitshöchheim
We ship your order from our own warehouse in Veitshöchheim.
Our shipping promise
Orders can be returned or exchanged within 30 days of receipt of delivery, provided they are in their original condition.
Kerndaten auf einen Blick
Modulleistung 1.640 Wp Wechselrichterleistung 2.400 W MPPT-Anzahl 4
Herstellerangaben und Produktsicherheit
Hersteller
NeueEnergie24 GmbH,
Sicherheitshinweise
Bitte beachten Sie die Sicherheits- und Montagehinweise in der Bedienungsanleitung des Herstellers.
Persönliche Beratung
Sie sind unsicher, ob dieses Produkt zu Ihrer Anlage passt? Wir beraten Sie gern persönlich.
Abholung in Veitshöchheim nach Absprache.
Technische Daten Solar panels: 4x SOLYCO R-WF108p.3-410 BF Panel output: 410 Wp per panel Total output: 1,640 Wp Cell technology: Monocrystalline PERC Cells: 108 half cells Panel efficiency: 21.0% Vmp: 31.52 V Imp: 13.01 A Voc: 37.55 V Isc: 13.83 A Panel dimensions: 1,722 x 1,134 x 30 mm Panel weight: 20.5 kg per panel Inverter: SOSSEN Micro 2400 AC rated power: 2,400 W MPPT: 4 DC input voltage: 20 to 60 V MPPT range: 20 to 55 V Start-up voltage: 22 V AC voltage: 230 V Frequency: 50 Hz Max. efficiency: 97.3% MPPT efficiency: 99.6% Communication: Wi-Fi, Bluetooth App: PowerHome Protection rating: IP67 Inverter dimensions: 352 x 225 x 38.5 mm Inverter weight: 5.5 kg Operating temperature: minus 40 to plus 65 °C SKU: SL-Basic-1640-1600-19
Barcode: 4262492216109
