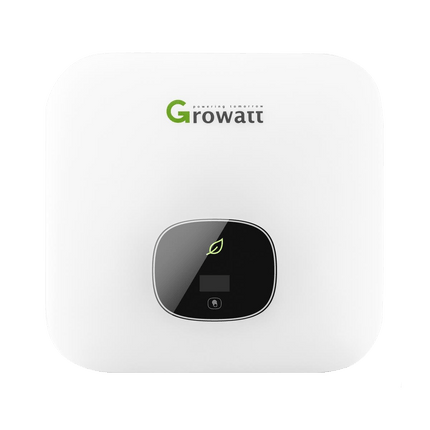

Inversor Híbrido Growatt 1PH MIN 3600TL-XH2

VendedorGrowatt
Comparte

Inversor Híbrido Growatt 1PH MIN 3600TL-XH2

VendedorGrowatt
Comparte

Forma del producto

IVA Recogida gratuita en nuestra(s) tienda(s)

0% de IVA según §12 párrafo 3 UStG para Alemania
19% IVA - Comercial y otros países de la UE

Recogida gratuita en nuestra(s) tienda(s)

En stock - contigo en 7 a 14 días laborables

€497,00 IVA incluido

Garantizado más seguro y protegido Verificar.

Envío gratis for all orders over € 39 (except freight goods).

30 days Money-back guarantee

Own warehouse At the company headquarters

🌳 Environmentally friendly to your front door!

We send CO₂-neutral and use sustainable materials-as far as technically possible.

So your order arrives in an environmentally conscious and responsible manner.

📦 Our shipping promise to you!

Orders can be returned or exchanged within 30 days of receipt of the delivery if they are in an original state.

We deliver across Europe. Your order will be carefully packed and delivered to the desired location.

The delivery lasts Between 2 and 5 working days Depending on the type of shipping.

Descargas

MIC_600-3300TL-X2_Datenblatt_EN

Datos técnicos

Artikelnummer: PV01.0131000
Modell: MIN 3600TL-XH2
Serie: Growatt MIN-XH2 Serie
Phasen: 1-phasig
AC Nennleistung: 3.600 W
Max. AC Scheinleistung: 3.600 VA
Max. Ausgangsstrom: 16 A
Nominale AC Spannung: 230 V
AC Frequenz: 50/60 Hz
Max. empfohlene PV Leistung: 7.200 W
Max. DC Spannung: 550 V
Startspannung: 50 V
MPP Spannungsbereich: 40 bis 540 V
Anzahl MPP Tracker: 2
Strings pro MPP Tracker: 1
Max. Eingangsstrom je MPP Tracker: 16 A
Max. Kurzschlussstrom je MPP Tracker: 24 A
Batteriekompatibilität: Growatt ARK XH, Growatt APX
Batterie Spannungsbereich: 360 bis 550 V
Max. Ladeleistung: 6.000 W
Max. Entladeleistung: 3.600 W
Max. Wirkungsgrad: 98,2 %
Europäischer Wirkungsgrad: 97,2 %
MPPT Wirkungsgrad: 99,9 %
Schutzart: IP66
Abmessungen: 375 x 350 x 160 mm
Gewicht: 10,8 kg
Betriebstemperatur: -30 °C bis +60 °C
Topologie: Transformatorlos
Kühlung: Natürliche Konvektion
Display: OLED, LED, WiFi, App
Garantie: 10 Jahre

SKU: SL-GR-MIN3600TLXH2-0
Código de barras: 6975609726207
