The Cerbo-S GX communication center from Victron Energy (MPN BPP900450120) enables perfect control over your system and maximizes its performance. Maximizing system performance has never been easier. The more cost-effective variant of the Cerbo-GX series still has all the important features for flawless communication, except for the BMS-Can connection, temperature sensor inputs and resistive tank level inputs.
Easy monitoring and control
With the Cerbo-S GX you can quickly monitor power consumption, energy production from PV, generator and grid from anywhere. Easily control the current limit for shore power feed-in, the (automatic) start/stop generator or change any settings to optimize the system. Track alerts, perform diagnostic checks and solve problems remotely.
Features of the Cerbo-S GX communication center
- Easy control of your system
- Flexible connection options
- Maximize your system performance
- Uncomplicated assembly
Technical data
- Operating voltage: 8-70 V/DC
- Mounting: Wall or DIN rail 35mm
- Dimensions: 78 x 154 x 48 mm
- Operating temperature range: -20 to +50°C
- Cable length: 2 meters
- Safety: IEC 62368-1
- EMC EN: EN 301489-1, EN 301489-17

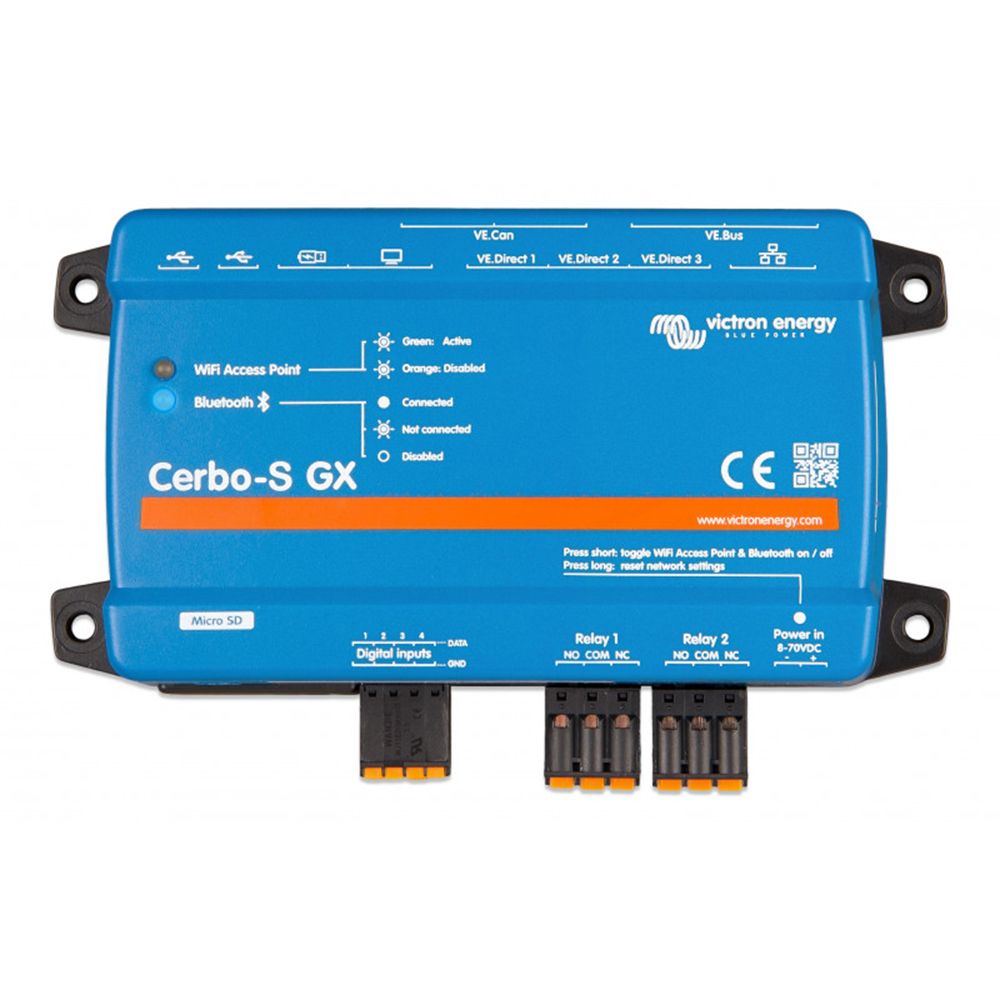

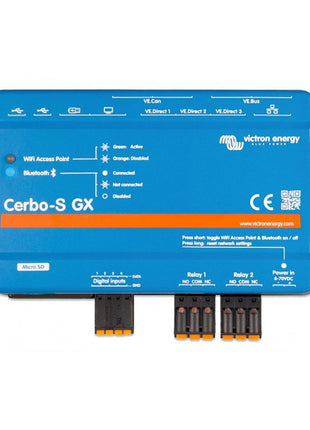

Available connections
- 3 VE.Direct ports
- 3 USB ports
- 4 digital inputs
- 2 relays
- 2 VE.BUS
- 2 VE.CAN
Flexible connection options
The system can be controlled using the Cerbo GX communication center regardless of time and place. The device offers three different connection options: either via the free Victron Remote Management (VRM) portal, the Victron Energy GX Touch 50 (5-inch touchscreen display) or via the VictronConnect app via Bluetooth.

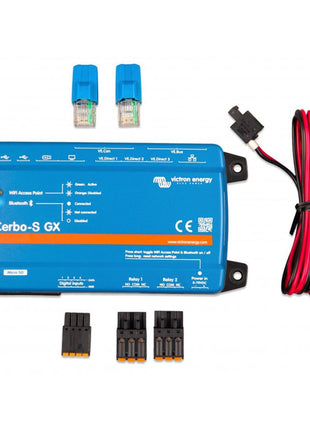

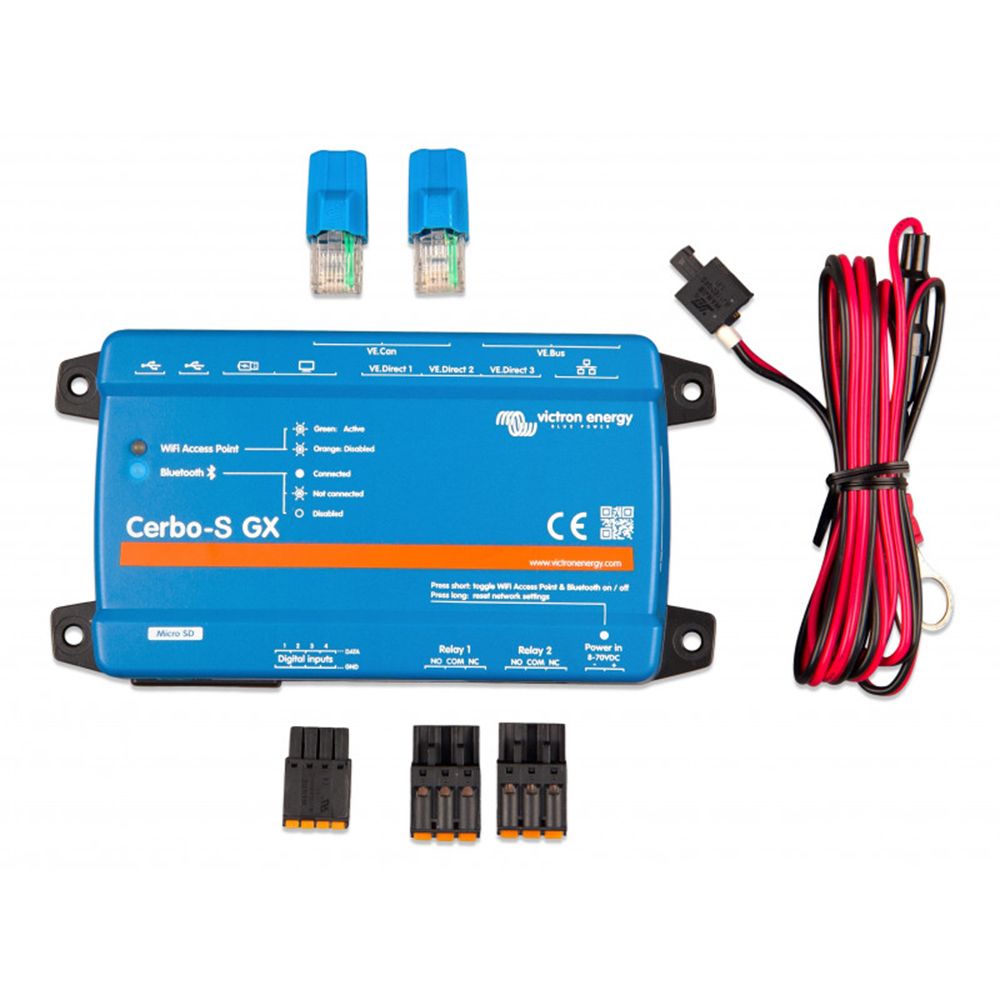

Scope of delivery:
1x Cerbo-S GX
1x power cable with inline fuse and M8 connection eyes for battery or
DC busbar mounting.
2x VE.Can termination resistors
1x terminal blocks for all connections on each side.
