Description

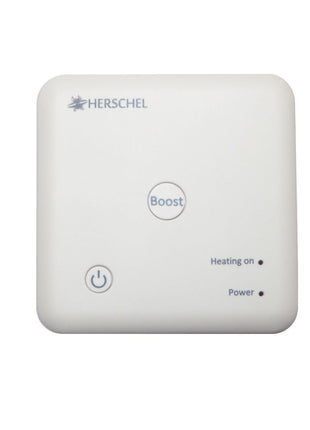

The Herschel iQ R2 receiver is specifically designed to control Herschel infrared heaters and works in combination with the T2 thermostat . This wireless receiver unit allows you to conveniently control your heating via the SmartLife app or the T2 thermostat , and also serves as an internet gateway for the T2.
Main features:
-
Wireless Receiver Unit : Works seamlessly with the T2 Thermostat to turn your heaters on or off.
-
Boost Function : Offers a 1-hour boost function for quick heat at the touch of a button.
-
Frequency Support : Operates on 433MHz RF and 2.4GHz WiFi to provide a reliable connection to the control unit and network.
-
10 Amp Load : Supports a peak load of 10 amps at 230 volts , ideal for use with Herschel infrared heaters.
Features:
-
Control : The R2 receiver receives signals from the T2 thermostat and switches your heaters on or off depending on the selected temperature.
-
Expandable : Multiple R2 receivers can be paired with a T2 thermostat to control multiple heaters in a room simultaneously.
-
SmartHome compatible : In conjunction with the T2 and the SmartLife app, you can control your heating even when you are on the move.
Technical specifications:
-
Material : Fire retardant plastic (ARC+PC UL94)
-
Voltage : 120 - 240V, 50/60Hz
-
peak load : 10A
-
Protection class : IP20
-
Installation : Wall or ceiling mounting
-
Setpoint range : 5-35°C
-
Frequencies : 433MHz RF and 2.4GHz WiFi
-
Programming : Only via coupling with the T2 thermostat
A notice:
The Herschel iQ R2 receiver is only compatible with Herschel heaters and must be used with a T2 thermostat to function properly. Use with other heating systems will void the warranty.
The Herschel iQ R2 receiver is an ideal addition to your heating system if you want precise and intelligent control of your Herschel infrared heaters .
